نظرة عامة على المشروع
Commissioned by Lanzhou Blood Products (a subsidiary of China’s leading biopharmaceutical enterprise China National Biotec Group), this advanced facility features 13 specialized chambers for GMP-compliant storage of temperature-sensitive plasma derivatives including human albumin and intravenous immunoglobulins.
Technical Specifications by Functional Zone
1.Finished Goods AS/RS
- Insulation: 150mm PUR panels (Super Lift)
- Refrigeration: 2× Shanghai Zhaoxue semi-hermetic screw units (HSK7471-90)
- Air handlers: 2× Lu-Ve Italy coolers (NKI3X8DC2L+HGT)
2.Plasma AS/RS
- Insulation: 200mm PUR panels (Super Lift) Thickest specification
- Refrigeration: 2× Shanghai Zhaoxue screw units (HSN8571-125)
- Air handlers: 2× Lu-Ve Italy coolers (NKI4X8DC3S+HGT)
3.Outbound Hall
- Insulation: 100mm PUR panels (Super Lift)
- Refrigeration: 2× Zhejiang Kaidi piston units (4VES-10Y)
- Air handlers: 4× Beijer Ref Sweden coolers (BMT122H-LC)
4.Plasma Sorting Room
- Insulation: 100mm PUR panels (Super Lift)
- Refrigeration: 2× Zhejiang Kaidi piston units (6HE-35Y)
- Air handlers: 6× Beijer Ref Sweden coolers (BMT216H-LC) Highest density configuration
5.Reagents Room
- Insulation: 100mm PUR panels (Super Lift)
- Refrigeration: 2× Zhejiang Kaidi piston units (2CES-4Y)
- Air handlers: 2× Beijer Ref Sweden coolers (BMT098H-LC)
Other zones: Pre-thawing Room, Buffer Room, Waste Storage, إلخ. (Full technical specs available upon request)
Core System Integration
1. Intelligent Control System
- Main power cabinet: Schneider electric panels + energy metering
- Temperature control terminal: Siemens PLC + McGS HMI touchscreen
- Critical components: Schneider circuit breakers/contactors
- Door-mounted displays + emergency call systems
2. Centralized SCADA Platform
- Real-time monitoring: Temperature mapping / equipment status
- Automated alerts: Multi-level SMS/email notifications
- Data compliance: 21 CFR Part 11 electronic records
- Remote management: Mobile access + audit trail export
Client Profile
- Lanzhou Blood Products (China National Biotec Group)
- Core business: R&D and manufacturing of plasma-derived therapeutics
- Key products: Human albumin, IVIG (pH4), prothrombin complex concentrates
- Certifications: China NMPA GMP / WHO PQ compliance
بناء & صور الانتهاء
Lanzhou Institute of Biological Products Co Ltd

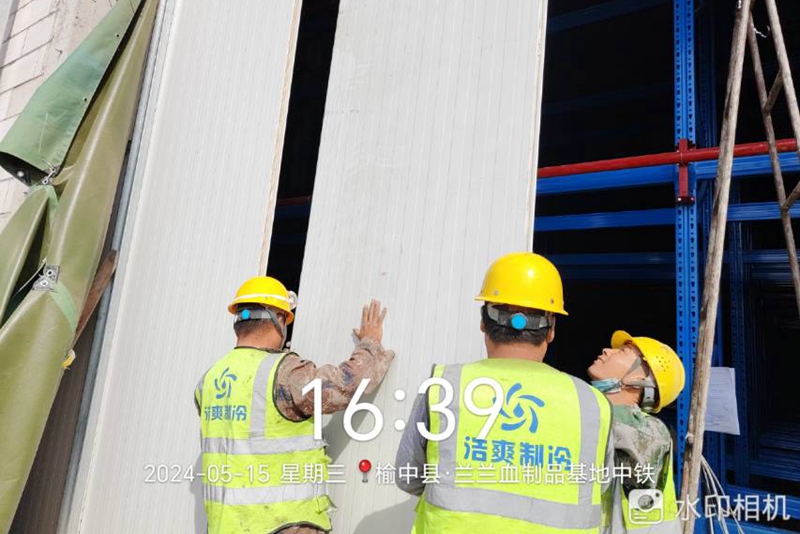

Workers are installing cold storage panels

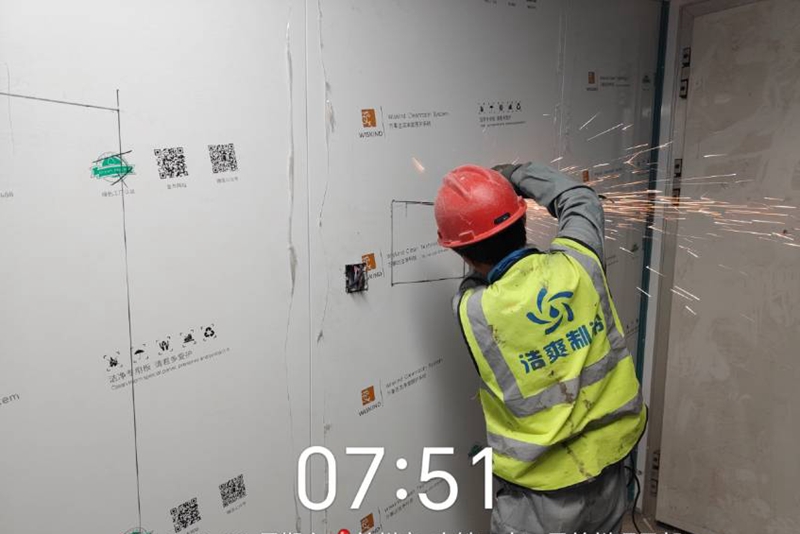

Workers are cutting the observation window

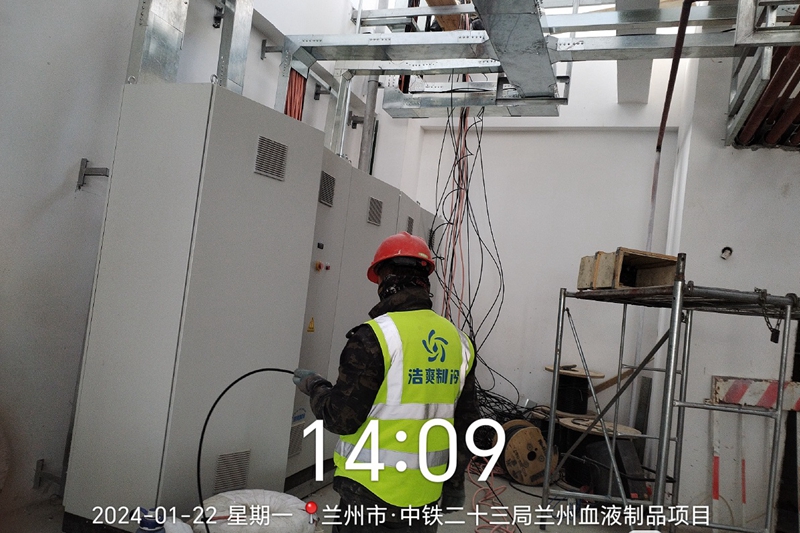

Workers are laying out the wire

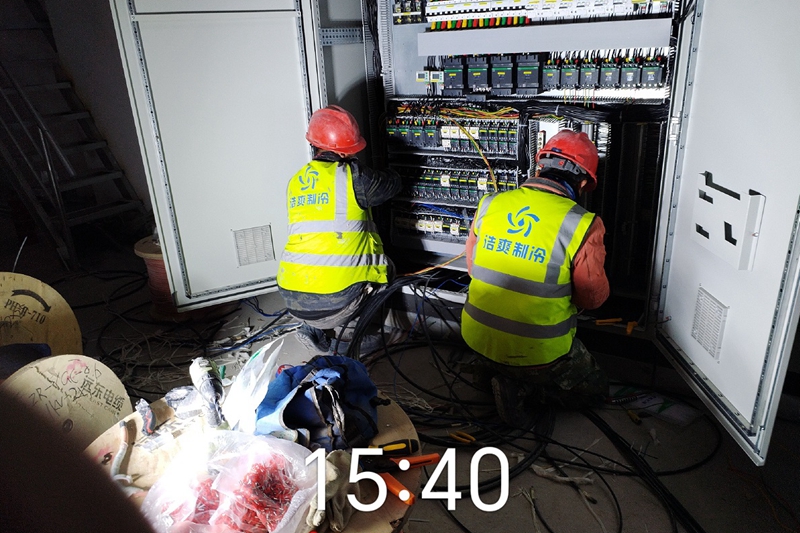

Workers are connecting the wires of the control box

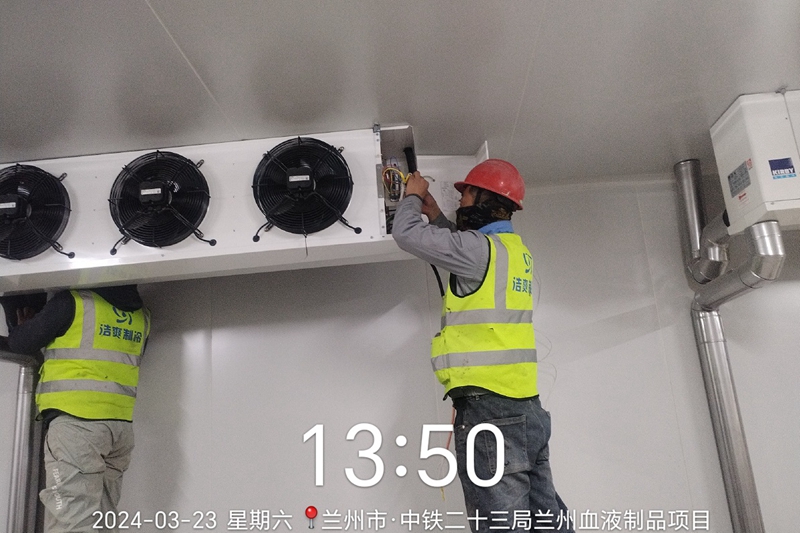

Workers are installing air coolers
