Vaccine Cold Storage Construction Standards and Management System Requirements

Vaccine cold storage is a critical category within pharmaceutical cold chain logistics, primarily used by disease control centers, hospitals, and biological reagent research institutes. Provincial disease control centers have established stringent standards for vaccine cold storage construction to ensure safety and efficacy. For instance, temperatures must be maintained between -5°C and 8°C (23°F to 46.4°F) to prevent vaccine degradation and potential medical incidents. However, specific temperature requirements may vary depending on the vaccine type. Below, we detail the key standards and management requirements for vaccine cold storage construction.

1. Core Temperature Standards

• Temperature Range: Most vaccines require storage at 2°C to 8°C (35.6°F to 46.4°F), while some freeze-sensitive vaccines (e.g., mRNA-based vaccines) may need -20°C to -30°C (-4°F to -22°F) conditions.
• Stability: Temperatures must remain stable within ±0.5°C fluctuations to avoid compromising vaccine integrity.
• Monitoring: Automated systems must record temperatures in real-time, with data stored for at least five years for compliance and auditing purposes.

2. Facility & Equipment Requirements

A. Storage Layout

• Vaccines must be stacked ≥10 cm above the ground on non-reactive shelves (e.g., or metal racks) to minimize contamination risks and ensure air circulation.
• Storage areas should be divided into zones for different vaccine types, with clear labeling for easy access and inventory management.

B. Insulation & Structure

• Insulation Materials: Polyurethane sandwich panels (B1 fire-rated) with thicknesses of 100–150 mm are recommended for optimal thermal efficiency and moisture resistance.
• Doors: Automatic quick-release doors with airtight seals to prevent temperature excursions during access.

C. Refrigeration Systems

• Redundancy: Dual compressor units (one active, one backup) and dual power sources (e.g., backup generators or UPS systems) are mandatory to ensure uninterrupted operation.
• Equipment Standards: Internationally recognized brands (e.g., Bitzer, Copeland) for compressors and evaporators, compliant with GSP/GMP certifications.

D. Monitoring & Alarms

• Sensors: Calibrated temperature and humidity sensors (accuracy ±0.5°C) installed at “hotspot” and “coldspot” locations.
• Alerts: Multi-level alarms (SMS, audible, visual) triggered by deviations, with immediate notifications to designated personnel.

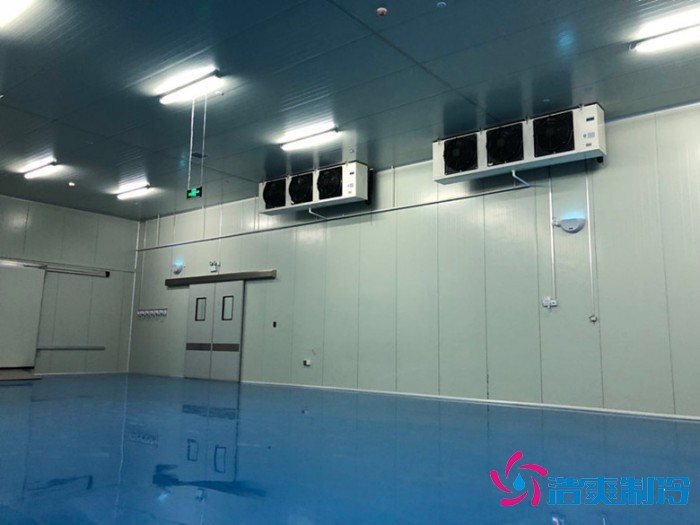

The actual scene of the completed vaccine cold storage

3. Management System Requirements

A. Personnel Training

• Staff must undergo specialized training in cold storage operations, emergency response, and compliance with standards like GB/T 34399-2025 and regional GSP guidelines.
• Regular drills for power outages, equipment failures, and temperature excursions are essential.

B. Validation & Maintenance

• Validation: Annual performance checks per GB/T 34399-2025, including empty and loaded storage tests, sensor calibration, and airflow mapping.
• Maintenance: Scheduled servicing of refrigeration units, sensor replacements, and insulation integrity checks.

C. Documentation & Traceability

• Digital logs for temperature, humidity, and access records, stored securely for 5+ years.
• Audit trails for vaccine batches, including arrival/departure times and handling conditions.

D. Safety Protocols

• Fire Prevention: Non-flammable insulation materials, electrical conduits (no exposed wiring), and LED lighting with protective casings.
• Emergency Tools: Fire extinguishers, (dust prevention), (moisture control), and (rodent prevention) systems installed onsite.

4. Why Compliance Matters

• Global Standards: Aligns with WHO guidelines, ISO certifications, and regional regulations (e.g., China’s GSP, EU GDP).
• Risk Mitigation: Prevents financial losses from vaccine spoilage and ensures public health safety.
• Energy Efficiency: Advanced systems reduce operational costs by 20–30% through optimized insulation and equipment.

For practical implementation examples, see our pharmaceutical cold storage engineering cases, which demonstrate how these standards are applied in real-world projects.
