Project Overview
In June 2019, our team successfully delivered a 2,000 m² cold chain storage warehouse project for the 12th Division of Xinjiang Production and Construction Corps (XPCC), Xishan Farm.
The facility consists of:
- One 0℃ to +10℃ cold storage room for fresh produce and general storage.
- One -18℃ frozen storage room for long-term preservation.
Both warehouses are designed with centralized control to ensure operational efficiency, while adopting energy-efficient refrigeration solutions to reduce operating costs. The design also complies with the main requirements outlined in the URS (User Requirement Specification).
Technical Specifications
1. Facility Scale
- Total area: 2,000 m²
- Height: 6.5 m
- Total volume: 13,000 m³
- Layout: one cold room (1,000 m²) and one freezer room (1,000 m²).
2. Refrigeration System
- 0℃ ~ +10℃ Cold Storage Room: Equipped with Emerson Copeland Scroll Compressor Units (USA), complete with condenser, solenoid valve, and pressure controller.
- -18℃ Freezer Room: Powered by Refcomp Screw Compressor Parallel Units (Italy), including condenser, solenoid valve, oil separator, and pressure controller.
- Both rooms feature high-efficiency air coolers (DL and DJ series) supplied by Kaidi, Zhejiang, China, ensuring rapid cooling and uniform airflow.
3. Insulation & Construction
- Cold storage room (0℃ ~ +10℃): 100 mm polyurethane sandwich panel with double-sided color steel.
- Freezer room (-18℃): 150 mm polyurethane sandwich panel with double-sided color steel.
- All panels meet B1-grade fire resistance standards, ensuring durability and safety.
4. Control System
- The project is equipped with the New Asia full-automatic temperature control system, featuring:
- Automatic temperature regulation
- Temperature & humidity alarm
- Data recording and traceability
- Remote monitoring via mobile application
Construction & Completion Photos

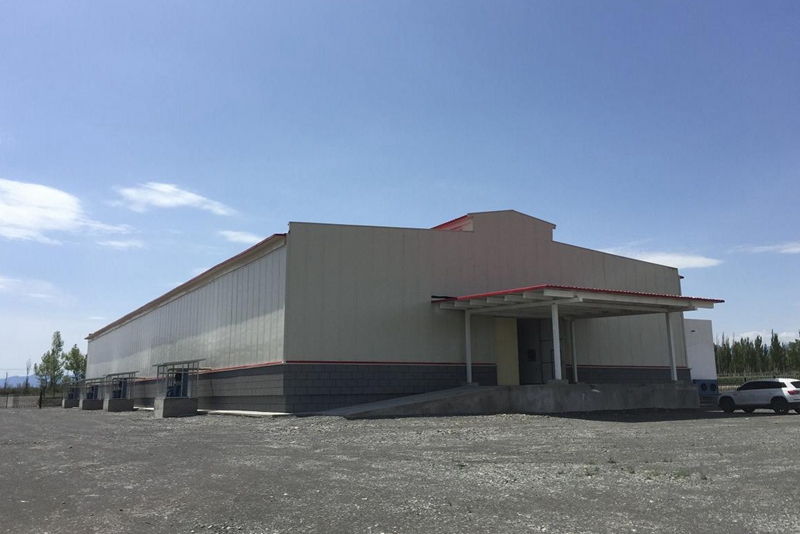

External shot of the 2,000 square meter cold chain storage cold storage

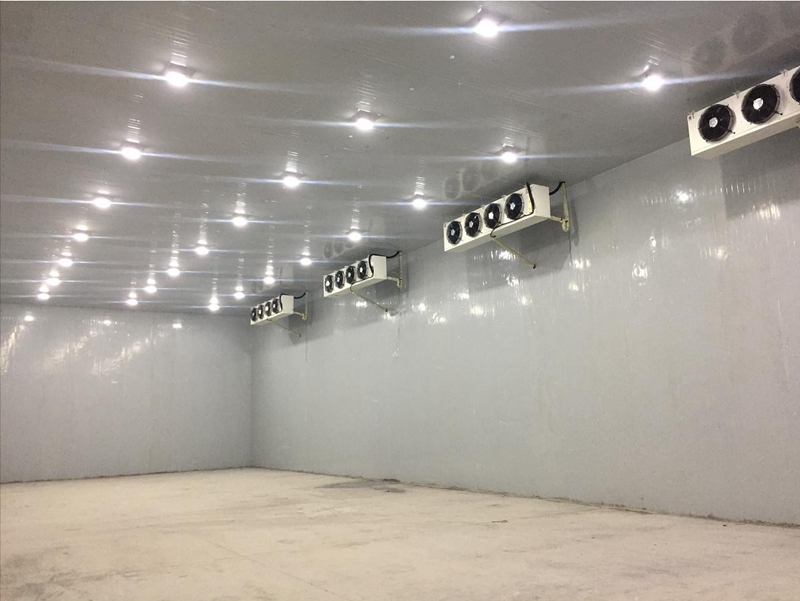

The actual scene of the cold storage completion

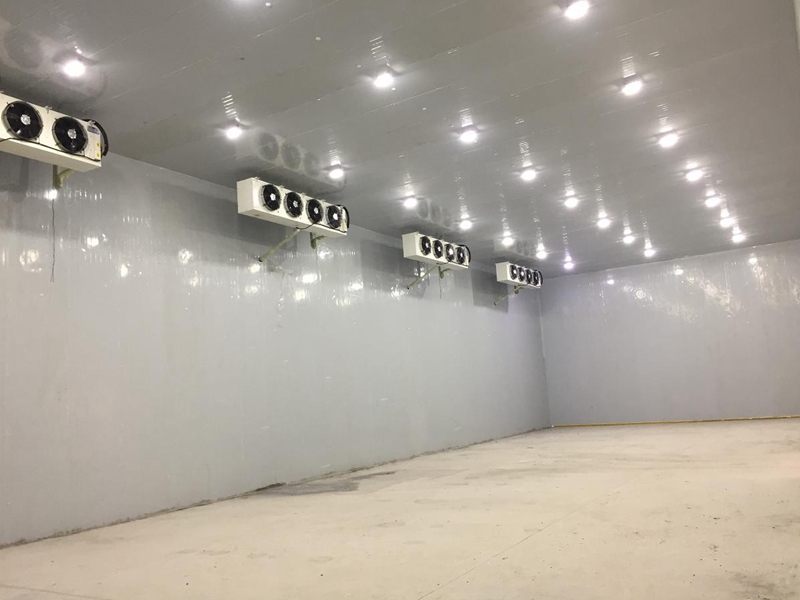

The actual scene of the cold storage completion
Cold storage installation team

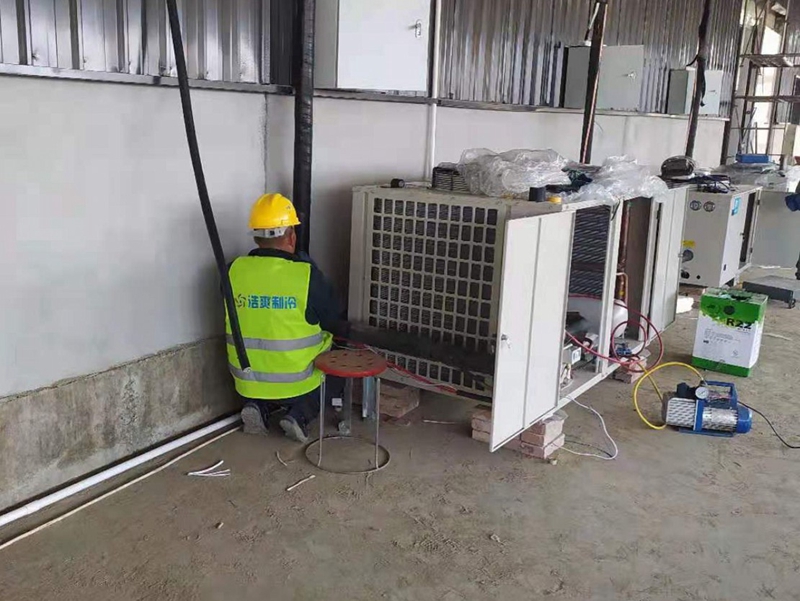

Workers are vacuuming

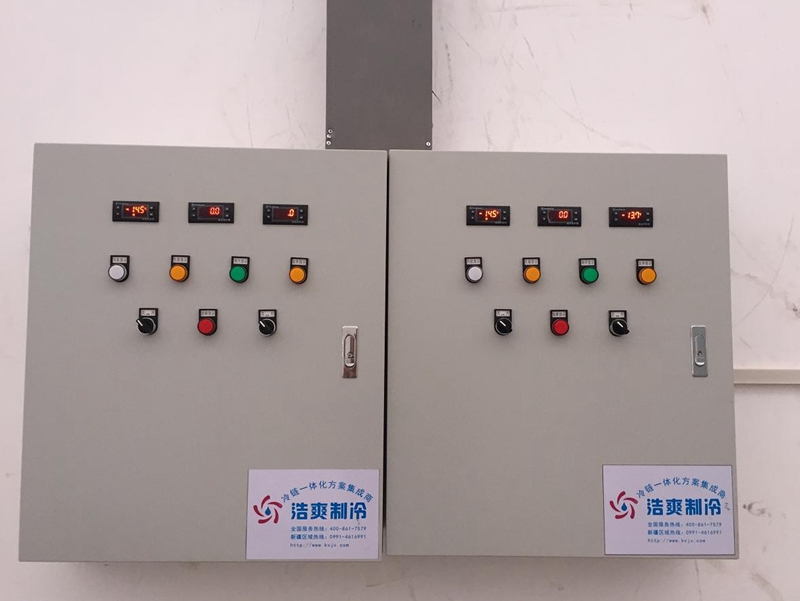

Temperature controller
