Project Overview

This customized 6,000m³ multi-temperature vaccine cold storage is built for Institute of Medical Biology, Chinese Academy of Medical Sciences (CAMS Kunming), a national vaccine R&D & mass production institution with WHO reference lab qualification.

Kunming altitude reaches 1,900m with low atmospheric pressure, thin air leading to compressor heat dissipation efficiency decline; the whole project adopts high-altitude enhanced refrigeration scheme, fully comply with domestic drug supervision and WHO laboratory cold chain standards.

Core Basic Project Data

• Total effective volume: 6,000 m³
• Independent isolated cold rooms: 16 individual chambers (fully separated physical partition, independent refrigeration per room)
• Zoning Classification & Standard Temp (GSP/WHO Mandatory Fluctuation ≤±0.5℃)
  11 × 2~8℃ Vaccine Finished Storage Chambers
  3 × -20℃ Biologic Intermediate & Virus Sample Chambers
  1 × 15~20℃ Standard Reagent Constant Temp Room
  1 × Normal Temp Raw Material Buffer Room
• Standard effective storage capacity: 900–1,100 tons of packaged vaccine & biological samples (GB 50072 space utilization coefficient 0.60 calculation)
• Total construction cycle: 60 calendar days fast-track GSP qualified delivery



Pre-Construction Core Pain Points

1. Old scattered single cold rooms without independent partition, mixed storage of finished vaccines & raw samples triggered risk of cross-contamination, failed previous drug supervision spot check;
2. Ordinary standard compressors unsuitable for Kunming 1,900m high altitude low pressure, heat dissipation insufficient, temperature deviation up to ±1.8℃ leading partial vaccine titer loss;
3. No redundant standby refrigeration & UPS power supply, power outage risk causes irreversible inactivation of high-value experimental samples;
4. Discrete temperature recording without tamper-proof log, unable to meet WHO laboratory audit & domestic GSP annual recheck;
5. No classified zoning for R&D batches, finished products and negative control samples, incomplete traceability management system.

1 High-Altitude Custom Envelope & Hygienic Insulation System

All structure designed for Kunming strong ultraviolet & large day-night temperature difference, meet GSP food-grade sanitation standard:

Component	Full Standard Configuration	Plateau & Biopharma Exclusive Optimization
Wall & Ceiling PU Panel	150mm B1 flame retardant double color steel PUR, λ≤0.020 W/(m·K)	Double-layer continuous vapor barrier, anti-UV surface coating to slow aging under plateau strong sunlight

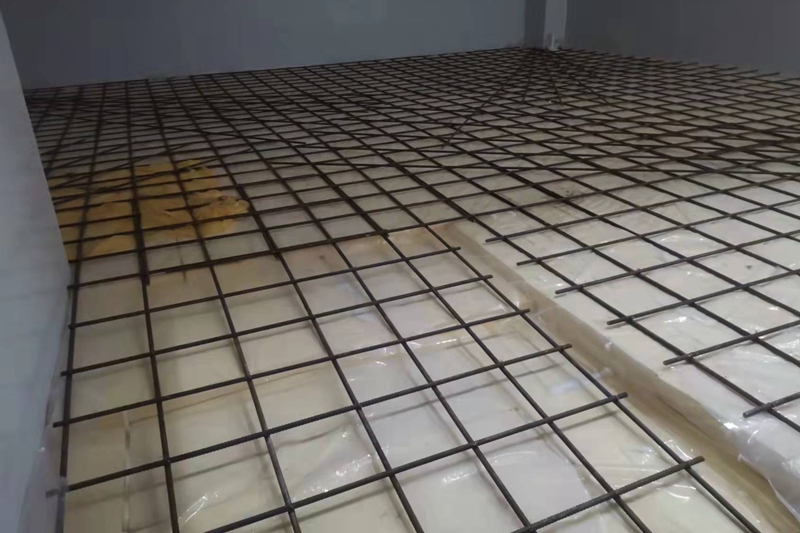

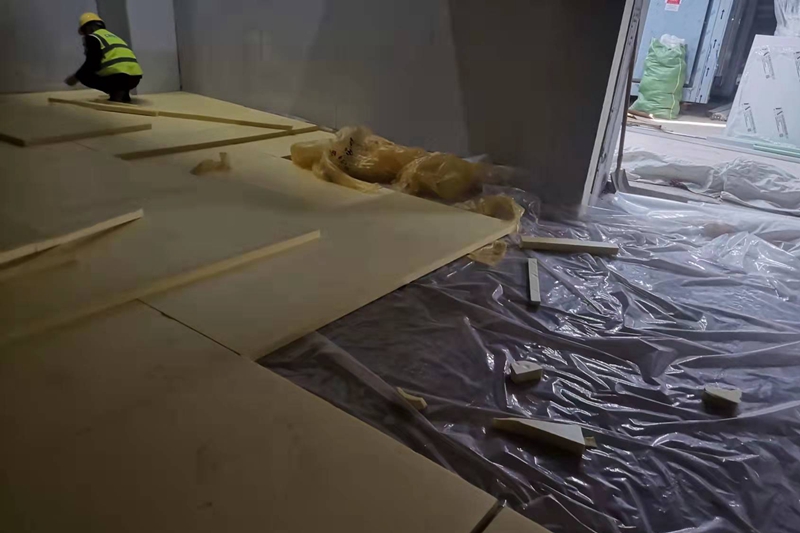

Floor Insulation	Double staggered 50mm XPS extruded board, ≥300kPa compressive strength	Sloped anti-slip epoxy floor with 50mm inner arc corners for easy disinfection (no mold dead angles)

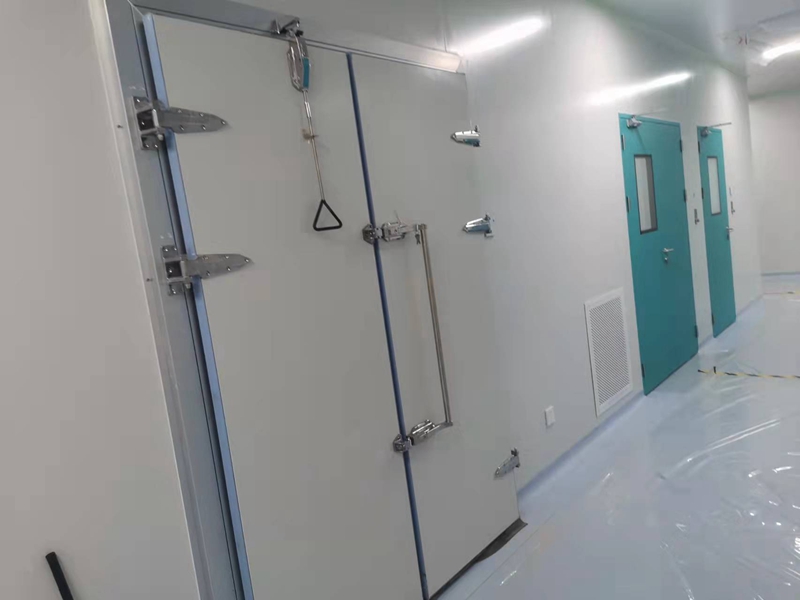

Cold Door & Air Curtain	Stainless thermal break sliding door, low-temperature heating air curtain	Nylon insulated door frame gaskets to eliminate plateau large temp difference condensation

Core rule: All metal suspension bolts fitted thermal insulation gaskets to cut cold bridge; every chamber fully enclosed independent space to avoid gas cross-contamination between vaccine batches.

2 High-Altitude Enhanced Redundant Refrigeration System

Critical high-altitude upgrade: Ordinary unit cooling capacity drops 28–32% at 1,900m altitude, all sets adopt expanded condenser & plateau optimized motor:

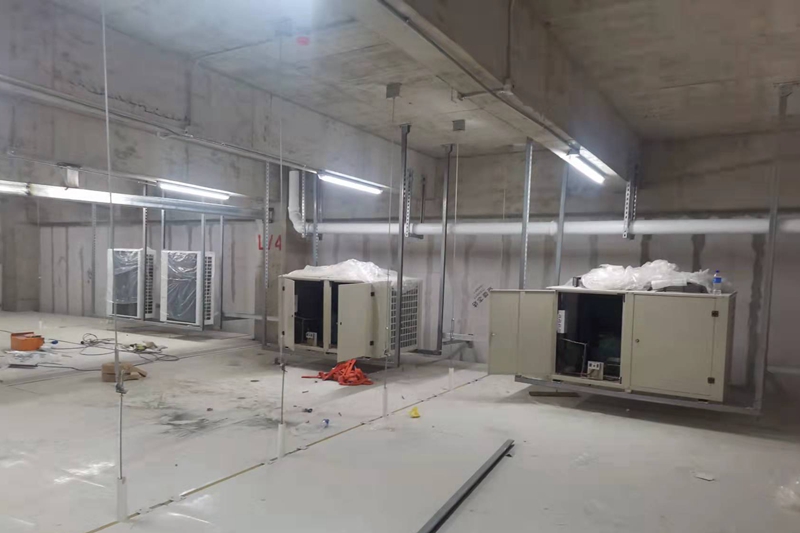

1. Unit Layout: 4 groups Emerson medium-high temp scroll parallel racks, each cold chamber equipped 1-main-1-standby independent loop (GSP mandatory requirement);
2. Heat Dissipation Upgrade: Oversized high-air-volume condensers matched for Kunming low air density environment;
3. Evaporator: Low-speed anti-dehydration air coolers to prevent vaccine package surface drying;
4. Defrost Mode: Hot gas circulation defrost only, forbidden electric heating ignition source for biological lab safety;
5. Power Backup: Dual municipal power + 72h continuous UPS for monitoring & refrigeration control, sustain full data recording during blackout.

3 GSP & WHO Compliant Intelligent Monitoring Platform

Hardware: Siemens TP1200 PLC touch screen + Schneider intrinsically safe electrical components
Mandatory audit functions:
1. High-precision multi-point temperature sensors (accuracy ±0.1℃), 1 sensor per 80m³, real-time data auto-logged 5+ years non-editable;
2. Three-tier authority management: Lab operator / equipment engineer / QA auditor, all operation traces permanently stored for WHO inspection;
3. Multi-level linkage alarm: On-site sound-light + SMS + remote APP push when temp exceeds ±0.5℃ threshold;
4 Automatic standby unit switching within 8 seconds if main compressor malfunctions, zero temperature runaway gap;
5. One-click export full temperature mapping report for DQ/IQ/OQ/PQ validation documents.

4 WHO Laboratory Exclusive Zoning & Logistics Layout

16 independent chambers divided by material attributes to avoid cross-contamination:

• Finished vaccine storage area (11 rooms): Separate batches of marketed injection vaccines;
• Virus & raw biological sample zone (3 × -20℃): Isolated from finished products;
• Standard reagent constant temp room (15~20℃): For calibration reference substances;
• Raw material receiving buffer: Independent inbound & outbound channel, one-way people & goods flow without crossing;
• Dedicated disinfection passage between warehouse & lab operation area.

5 Full GSP & WHO Validation Document Delivery

Complete four-stage validation files handed over after commissioning (non-negotiable for drug supervision & WHO audit):
1. DQ Design Qualification: High-altitude refrigeration scheme & 16-chamber zoning design review records
2. IQ Installation Qualification: All equipment calibration certificates, insulation & air tightness test reports
3. OQ Operation Qualification: 72h full-load temperature mapping, standby unit power failure simulation test
4. PQ Performance Qualification: 30-day continuous stable operation monitoring data
Supporting certification: B1 fire panel report, explosion-proof electrical test, anti-static ground detection record.

6 Measurable Post-Operation Benefits After 12 Months Operation

1. Passed national drug supervision annual inspection & WHO reference lab audit without any rectification requirement;
2. High-altitude enhanced refrigeration stabilized temp fluctuation within ±0.4℃, vaccine titer loss reduced to near zero;
3. One-main-one-standby per chamber + UPS backup completely eliminate sample inactivation risk caused by equipment breakdown or power cut;
4. Independent 16-chamber classified storage realized full batch traceability of R&D & production vaccine samples;
5. Plateau energy-saving design cut annual refrigeration electricity consumption by 26% vs ordinary flatland cold storage scheme.

7 10 Common Vaccine Cold Storage GSP Inspection Pitfalls

1. Shared refrigeration loop for multiple vaccine rooms → Cross-contamination risk, direct inspection rectification
2. No standby compressor per independent chamber → Violate GSP Article 49 mandatory provision
3. Temperature sensor precision lower than ±0.5℃ → Cannot pass WHO data audit
4. Omit double power supply + long-term UPS → Full batch sample inactivation hidden danger
5. No inner arc hygienic wall corners → Mold growth during regular disinfection
6. Mixed storage finished vaccines & raw virus samples → Batch traceability disorder
7. Ordinary non-expanded condenser for high-altitude Kunming → Temperature out of control in summer
8. Editable temperature recording system → Audit data invalid
9. Single-layer vapor barrier on roof → Plateau large temperature difference wall condensation
10. Lack complete DQ/IQ/OQ/PQ validation file package → Audit suspended

8 FAQ For CDC & Biopharma R&D Infrastructure Managers

Q1 What’s the core refrigeration upgrade needed for Kunming 1900m high altitude vaccine cold storage?

Thin air reduces condenser heat exchange efficiency by nearly 30%, must adopt oversized high-air-volume condensers and plateau optimized compressor motor to stabilize temperature within ±0.5℃.

Q2 Why each vaccine chamber needs separate standby refrigeration unit?

GSP & WHO laboratory standards forbid shared cooling loops between different vaccine batches; single room equipment failure cannot affect other stored biological products.

Q3 What temperature fluctuation limit is mandatory for vaccine storage?

2~8℃ vaccine zone must be controlled ≤±0.5℃, far stricter than ordinary food cold storage ±1℃ tolerance.

Q4 What validation documents need to be reserved for annual supervision audit?

Complete DQ / IQ / OQ / PQ four-stage qualification reports, 5-year tamper-proof temperature logs and all equipment calibration certificates.

Custom Plateau Vaccine & Laboratory Cold Storage Inquiry

If you plan to build multi-zone GSP/WHO compliant vaccine warehouse for Kunming/Yunnan medical research institutes and CDC, provide total volume and sample types to get free high-altitude optimized layout & full validation document list.

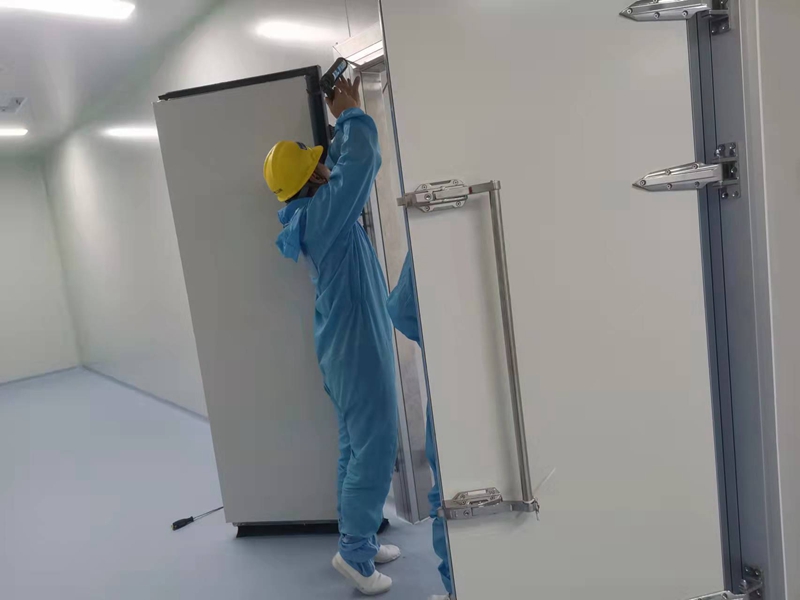

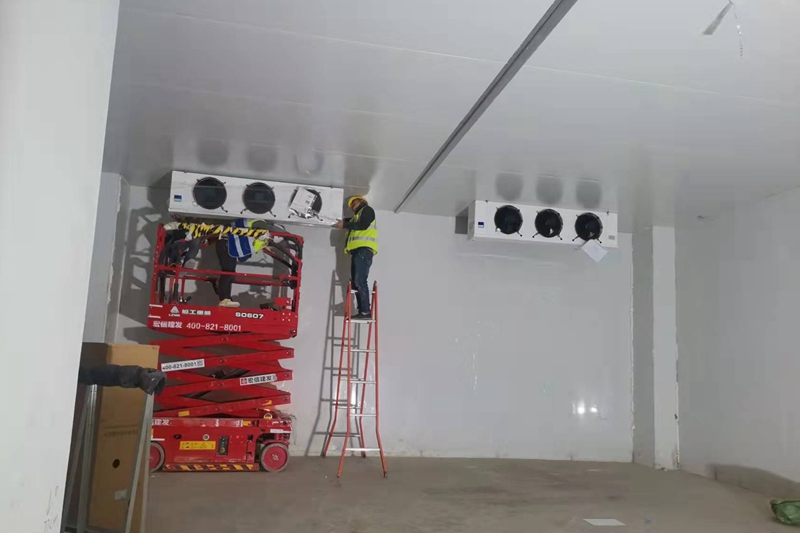

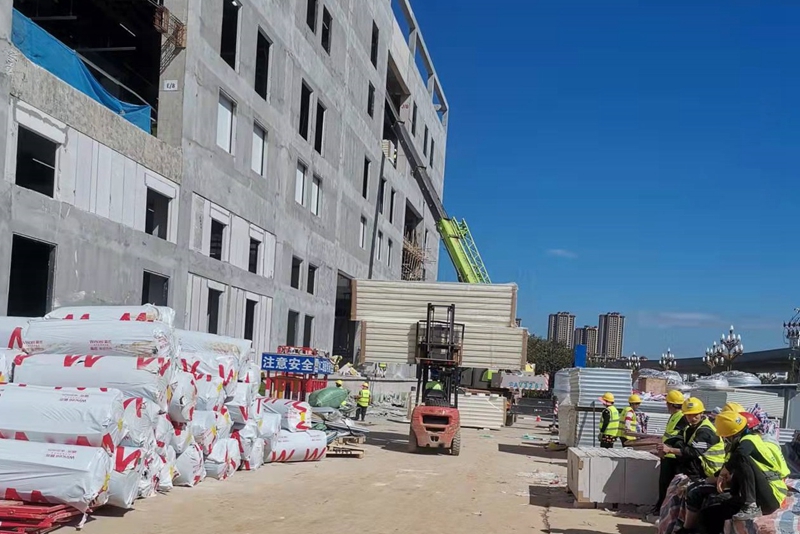

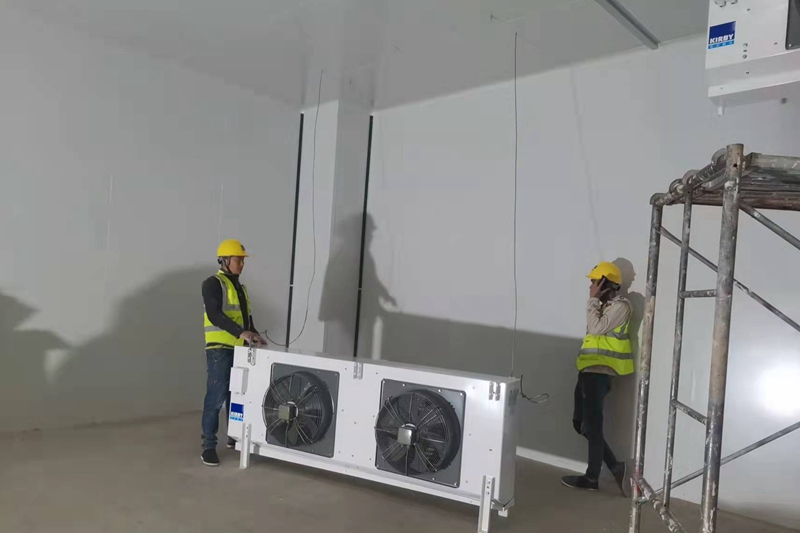

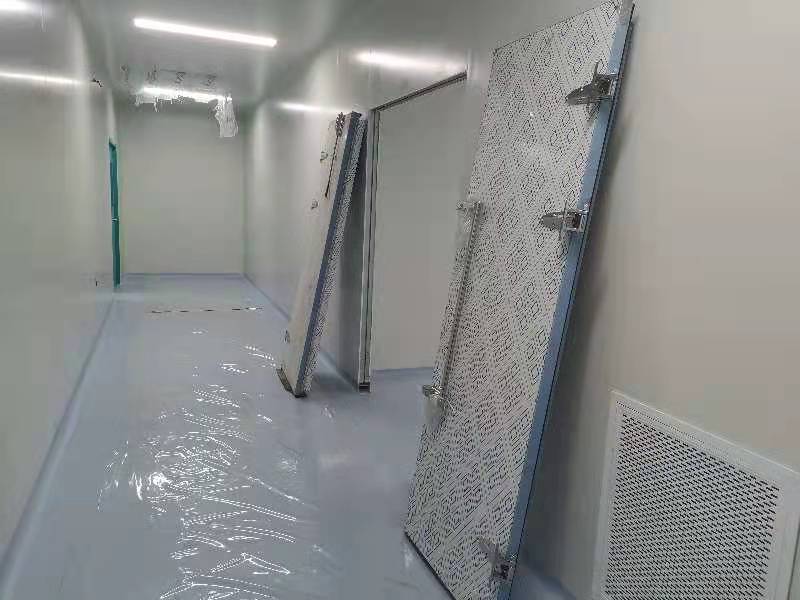

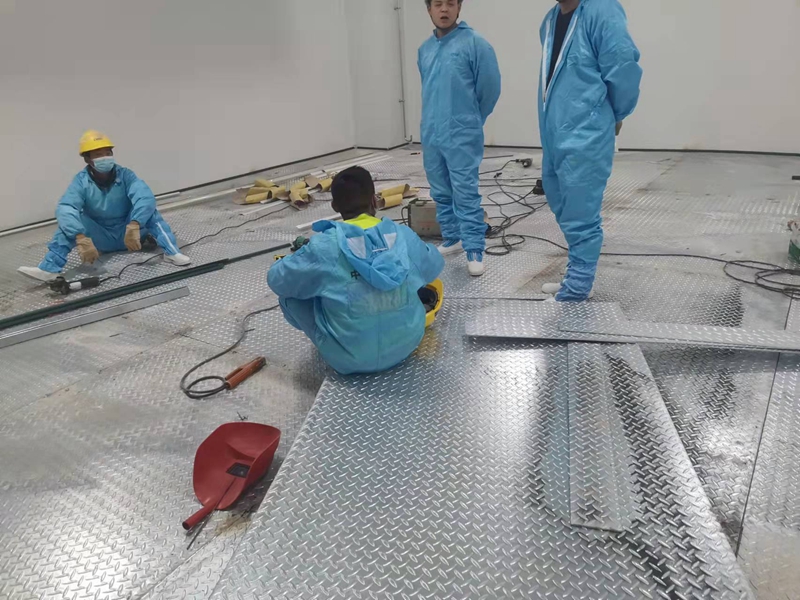

Construction & Completion Photos
