Project Overview
This 5,000-ton multi-temperature agricultural cold warehouse locates in Dubai industrial trade zone, serving local fresh fruit, leafy greens and root crop import & export distribution.
Key local climate risks: Summer peak ambient up to 52℃, strong solar radiation, coastal salt fog air; ordinary T1/T2 compressors will trigger high-pressure shutdown, wall condensation and produce mold without tropical anti-corrosion design.
Core Standard Engineering Data
1 Total nominal volume: 22,800 m³, divided into 3 independent solid-wall temperature zones
GB50072 & GCC dual standard calculation: Medium warehouse η=0.55, pallet produce ρ=0.23t/m³
Total usable storage ton = 22800 × 0.55 × 0.23 = 2884 tons per single layer; multi-layer rack layout reaches full 5,000-ton design capacity
2 Zone dedicated storage temperature (GCC fresh produce standard)
- Leafy greens: 0~3℃, RH 90–95%
- Tropical fruits (mango, banana): 8~12℃
- Root vegetables (potato, taro): 10~13℃
3 Full design-production-commission cycle: 9 calendar months
4 Compliance certification: GCC food regulation, UAE ESMA energy standard, HACCP traceability, Kigali low-GWP refrigerant rule
Pre-Construction Client Core Pain Points
1 Outsourced third-party cold storage without independent zoning, mixed ethylene fruits & leafy greens, monthly rot scrap rate up to 14.6%;
2 Ordinary T2 units overheat in summer, daily goods loss during peak temperature;
3 Single-layer insulation causes wall condensation, packaging mildew;
4 Editable temperature records, cannot pass GCC annual food supervision audit;
5 No standby compressor, one machine failure leads whole batch fresh produce scrapping.
1 Dubai Exclusive Salt Fog & Extreme Heat Envelope System
Comply with GCC full warm-side double HDPE vapor barrier mandatory clause, anti-salt fog upgrade full line:
| Zone Type | PU Panel Spec | Dubai Climate Optimization |
|---|---|---|
| 0~3℃ Green Zone | 100mm B1 high-density PUR | Double HDPE wall & ceiling vapor barrier; 304 stainless inner plate, all brackets with nylon cold-bridge anti-corrosion gaskets |
| 8~12℃ Fruit Zone | 100mm anti-mildew PUR | Gold-fin anti-salt condenser coating, heating air curtain for each loading vestibule |
| 10~13℃ Root Crop Zone | 100mm thickened PUR | Double staggered XPS anti-heat floor with drainage slope |
Core construction rule: All outdoor refrigeration equipment adopts epoxy anti-salt coating; every panel joint filled low-temperature mildew-proof food-grade sealant to eliminate wall sweating.
2 T3 Tropical N+1 Redundant Refrigeration System
Full IEC T3 certified compressors (stable operation under 52℃ ambient), each temperature zone equipped 1-main-1-standby auto-switch rack, 1.3x heat load safety factor for Dubai solar radiation:
1 Low-speed EC evaporator ≤0.6m/s air flow to avoid fruit water loss;
2 Adopt low-GWP R134A refrigerant comply with Kigali Amendment;
3 Independent closed cooling tower save Dubai limited fresh water resources;
GCC Mandatory Power Backup System
Dual independent municipal power supply + 800kW emergency diesel generator + 72h dedicated UPS for full monitoring equipment, uninterrupted encrypted data during long power outage.
3 GCC HACCP Three-Zone Solid Wall Layout (Curtain Separation Forbidden)
Three fully separated physical areas with one-way personnel & cargo flow:
1 Yellow marking Pending Inspection raw produce buffer
2 Green marking Qualified fresh goods storage
3 Red marking Defective / moldy fruit isolation room
Strict separation of high ethylene fruits (banana, apple) from leaf vegetables to prevent premature ripening.
Sanitary Standard
50mm seamless arc wall for daily high-pressure water cleaning, full UV disinfection lamp installed inside each chamber.
4 2-Year Tamper-Proof GCC Trace Monitoring Platform
1 Multi-point PT100 sensors deployed every 100㎡, temp fluctuation controlled ≤±0.8℃, auto record data every 30 minutes;
2 Minimum 5-year non-editable encrypted cloud storage meet GCC food audit requirement;
3 Four-level linkage alarm: On-site sound-light + local SMS + remote PC & mobile APP warning for over-temp/humidity/power failure;
4 Full 72h multi-point temperature uniformity test report delivered as acceptance document.
5 Measurable 12-Month Operation Benefits
1 Three solid-wall zoning + stable T3 cooling pass GCC food supervision audit one time without rectification;
2 Anti-salt & double vapor barrier eliminate wall mold, produce spoilage rate reduced from 14.6% down below 2.3%;
3 N+1 standby unit completely avoid mass fresh loss during summer equipment breakdown;
4 T3 inverter unit cut annual refrigeration electricity consumption by 27%;
5 Abandon expensive third-party outsourcing warehouse, full investment payback period: 26 months.
8 Common GCC Dubai Agricultural Cold Storage Inspection Pitfalls
1 Use T1/T2 non-tropical compressor → 52℃ summer frequent high-pressure trip
2 Omit double HDPE vapor barrier → Year-round wall condensation & fruit mildew
3 No anti-salt coating for condensers → Coastal salt fog rapid equipment corrosion
4 Cloth curtain instead of solid three-zone partition → Direct GCC audit failure
5 Editable short-term temperature logs → All trace data invalid for customs inspection
6 No standby compressor → Whole batch fresh produce scrapping risk
7 Single power supply without diesel backup → Long power outage loss
8 High-GWP refrigerant violates Kigali Amendment → UAE equipment rectification order
Simple GCC Farm Cold Storage ROI Calculation Formula
Annual Net Saving = Third-Party Warehouse Rent Saving − Annual Power & Maintenance − Spoilage Loss Reduction
Full Payback Months = Total EPC Investment ÷ Average Monthly Net Saving
FAQ For Dubai Agricultural Traders & Park Developers
Q1 What compressor standard mandatory for Dubai 52℃ summer?
Must adopt IEC T3 tropical certified compressor with 1.3x heat load safety factor.
Q2 Why full anti-salt coating for all outdoor equipment in Dubai?
Coastal salt fog corrodes metal coils within 1 year without protective coating.
Q3 How long to store cold room records per GCC food rule?
Minimum 5 years non-editable encrypted storage for annual supervision spot check.
Q4 What refrigerant comply with UAE Kigali regulation?
Low-GWP R134A, high-GWP R22 & R410A are forbidden for new projects.
Custom GCC Tropical Produce Cold Storage Inquiry
Provide main crop varieties & daily throughput to get ESMA compliant multi-zone layout & itemized USD quotation.

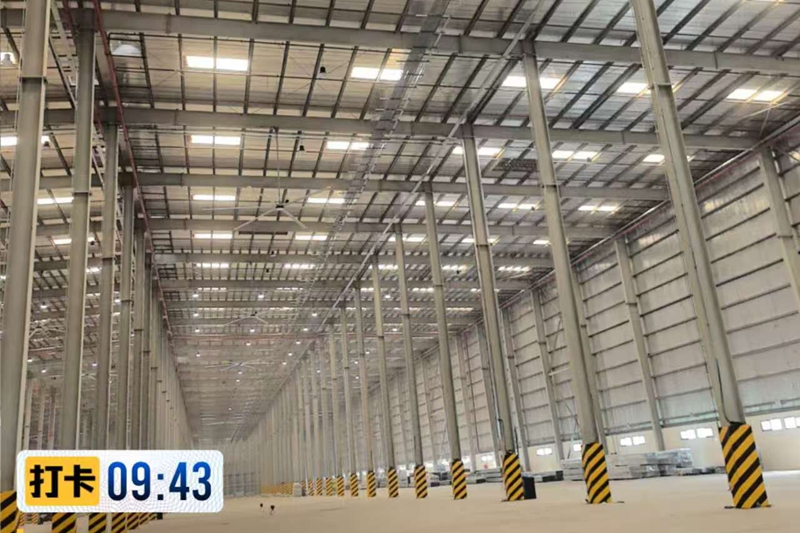

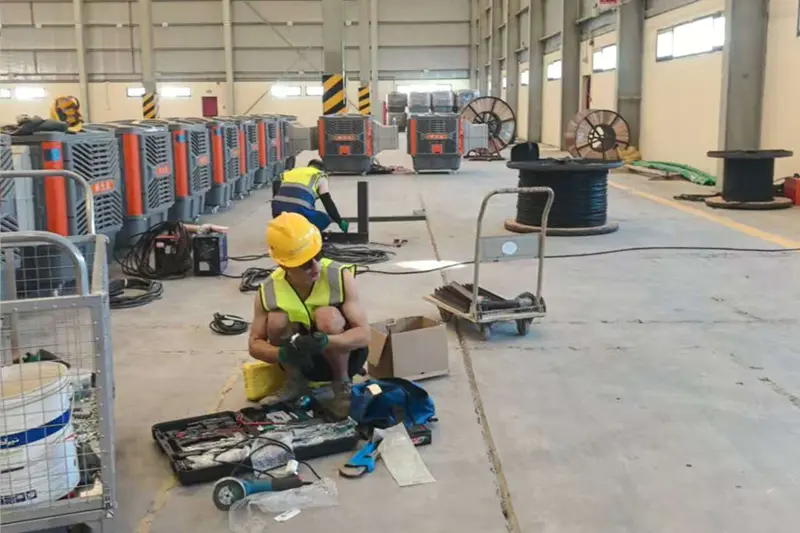

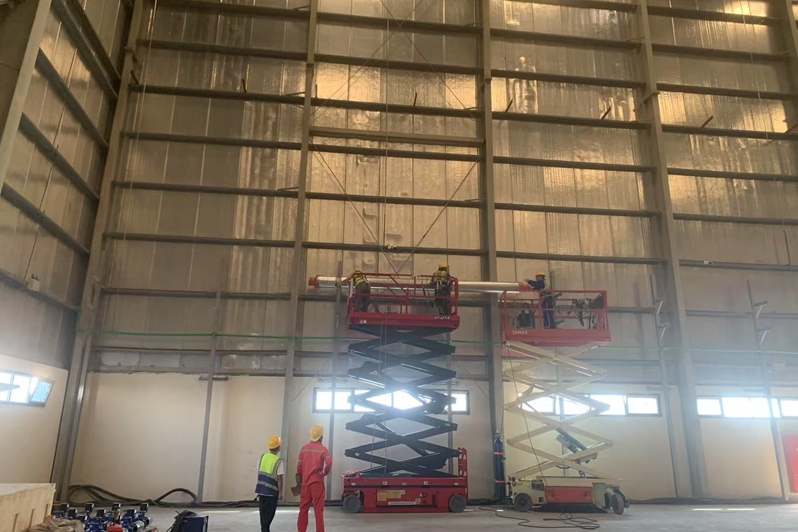

Construction & Completion Photos
