CALB (Anhui Hefei) 11,940 m³ Battery Electrolyte Explosion-Proof Cold Storage Construction Project

Project Overview

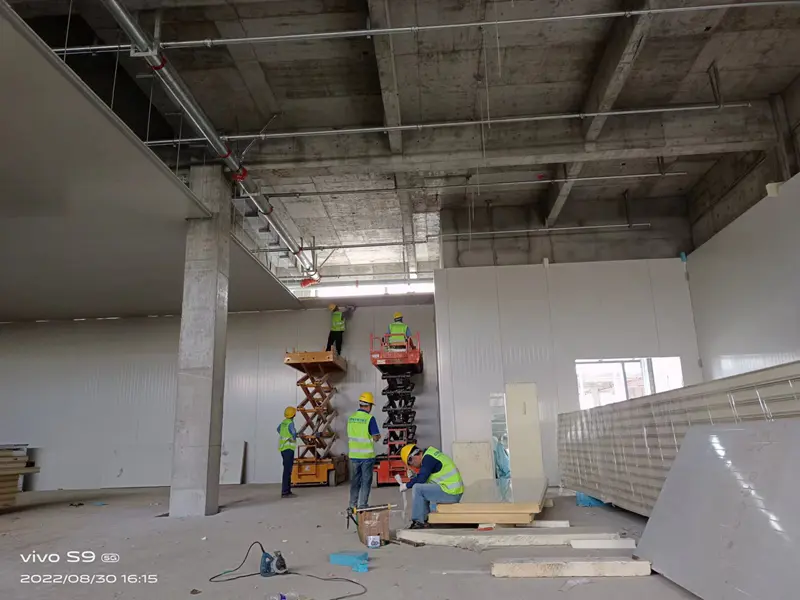

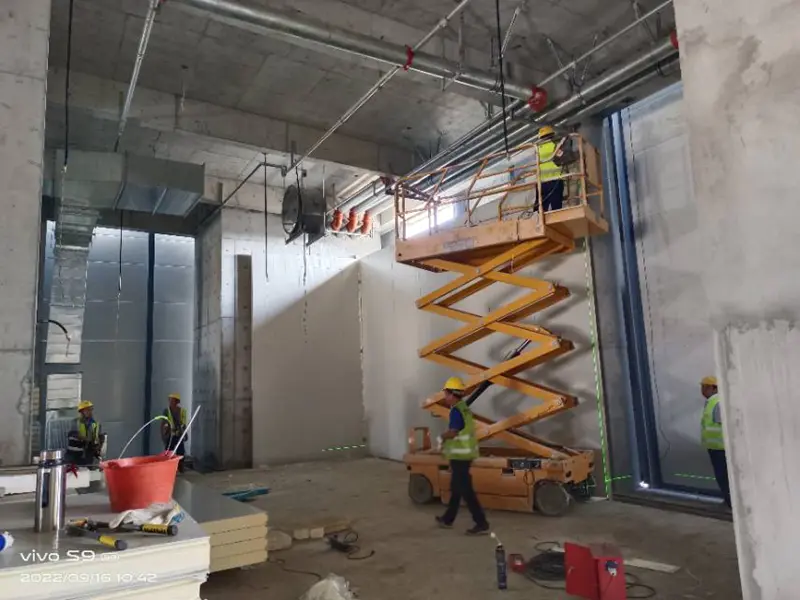

In Hefei, Anhui Province, our team successfully completed the construction of a 11,940 m³ explosion-proof cold storage warehouse for CALB (China Aviation Lithium Battery). The facility was designed for the safe storage of battery electrolyte, with an adjustable temperature range of 0°C to 10°C, ensuring both safety and stability for sensitive materials.

Equipment Configuration

1.Cold Storage Structure

Insulation Panels: B1-grade flame-retardant polyurethane PIR panels, 100 mm thickness, with 0.5 mm double-sided color steel finish.
Air Curtains: 12 custom explosion-proof air curtain machines (Exd rating) were installed at entry points to reduce cold air loss during door operation.
Sealing & Accessories: Customized silicone, foaming materials, floor channels, and edge trims for maximum safety and sealing.

2.Refrigeration System

Compressors: 6 sets of Emerson Copeland air-cooled condensing units (USA brand, non-explosion-proof).

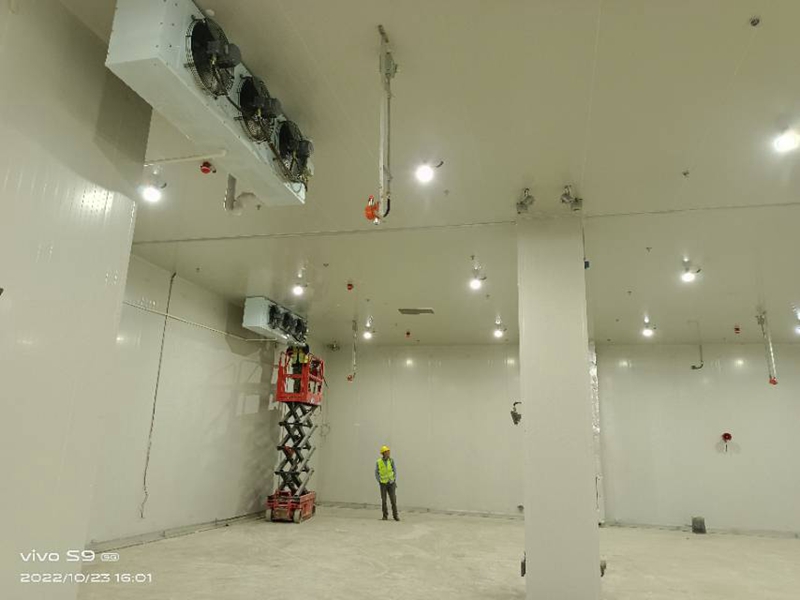

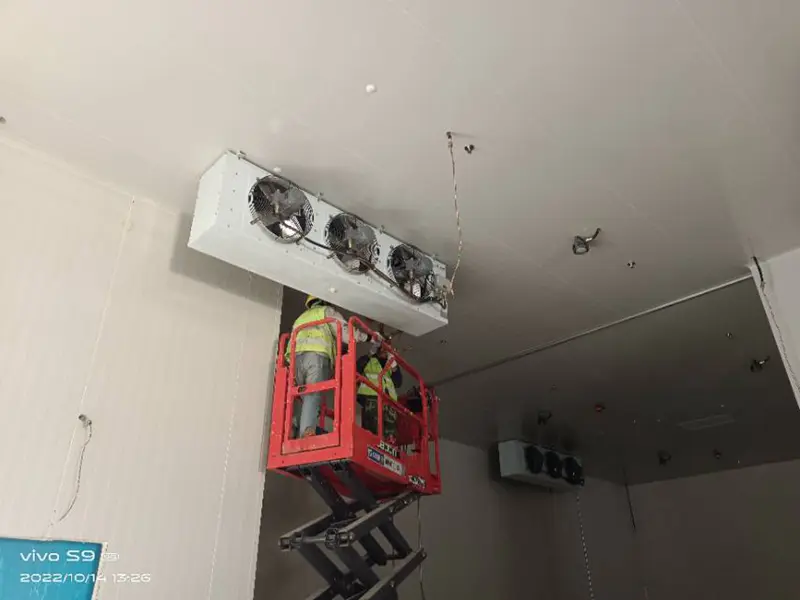

Air Coolers: 12 custom high-efficiency industrial evaporators (28 kW, side-blowing type) with dual condensate trays to prevent dripping.
Valves & Components: 24 Hongsen ball valves, 6 custom solenoid valves, and 12 Danfoss expansion valves (Denmark brand).

3.Electrical & Control System

Lighting: 130 explosion-proof LED fixtures (anti-corrosion, anti-moisture, Exd IIBT4).
Control Cabinets: 2 Shanghai Qixu cold storage control panels (non-explosion-proof), equipped with Siemens PLC, Chint circuit breakers, and Schneider components.
Monitoring & Safety: 12 high-precision explosion-proof temperature display instruments (Exd IIBT4), explosion-proof sound & light alarms, and switches.
Cabling: Fire-retardant and copper-core cables supplied by Shanghai Qifan, ensuring durability and compliance with explosion-proof standards.

About the Client – CALB

CALB (China Aviation Lithium Battery Co., Ltd.) is a leading high-tech enterprise specializing in lithium batteries, battery management systems, and energy storage solutions. As one of the top EV and energy storage battery manufacturers in China, CALB is committed to building a complete energy ecosystem, providing advanced products and lifecycle management for global new energy applications.
