Project Overview
Home Flavor Food Group is a large-scale braised beef, cooked meat and ready-to-eat food manufacturer in Jingzhou Hubei, with a 40,000 ㎡ production base and annual export capacity to Southeast Asia. The customized 5,000 m³ multi-temperature cold storage covers raw material thawing, carcass pre-cooling, finished product preservation and -35℃ blast freezing full production links.
Local climate feature: Jingzhou subtropical monsoon zone, long plum rain season, annual RH 78%~86%, high temperature in summer easily cause wall condensation, meat mold and lipid oxidation without full double vapor barrier design.
Core Standard Engineering Data
- Total nominal volume: 5,000 m³, divided into independent solid-wall chambers:
2×0~4℃ thawing room + 5×0~4℃ fresh preservation + 5×-35℃ blast freezer + 3×-18℃ finished frozen storage - GB standard storage capacity calculation (500–10000m³ η=0.5):
Fresh braised meat ρ=0.28t/m³, frozen beef ρ=0.40t/m³
Usable fresh storage ton = 375 tons; usable frozen storage ton = 800 tons - Construction & 72h full-load temperature validation cycle: 70 calendar days
- Compliance certification: GB50072, GB14881 HACCP, GB31646 frozen food export standard
Pre-Construction Core Operational & Compliance Pain Points
- Old scattered cold rooms without physical partition, raw meat & finished braised food mixed storage, 2 market supervision rectification notices within one year;
- Single-layer insulation without full HDPE vapor barrier, plum rain wall continuous condensation, meat mold scrap rate up to 12.3%;
- Single compressor without standby unit, summer high ambient overload shutdown leads whole batch cooked meat loss;
- Manual editable temperature records, cannot provide 2-year trace data for food inspection;
- Ordinary single-stage unit unable to reach -35℃, blast cycle exceeds 18h, production bottleneck restricts order volume.
1 Jingzhou Plum Rain Exclusive Anti-Condensation & Sanitary Envelope System
Comply with GB50072 warm-side full vapor barrier mandatory clause for high humidity food factory:
| Zone Type | PU Insulation Standard | Meat Processing Hygiene Optimization |
|---|---|---|
| 0~4℃ Thaw/Preservation | 100mm B1 low-smoke zero-halogen PUR | Double HDPE full warm-side vapor barrier; 50mm seamless inner arc wall, 304 stainless anti-corrosion plate; 1% drainage slope for blood & grease flushing |
| -18℃ Finished Freezer | 150mm B1 high-density PUR | Double staggered XPS anti-freeze floor, anti-slip wear-resistant concrete |
| -35℃ Blast Freezer | 200mm B1 thickened PUR | Full airtight enclosure to reduce cold loss during frequent door opening |
Core construction rule: All suspension brackets & pipeline holes fitted nylon cold-bridge insulation gaskets; every cold door equipped heating air curtain to block hot humid outdoor air inflow.
2 N+1 Redundant & Two-Stage Blast Freezer Refrigeration System
0~4℃ Thaw & Preservation Zone
Independent scroll unit for each chamber, 1-main-1-standby auto switch; low-speed EC air cooler to avoid braised meat surface dehydration.
-18℃ Finished Frozen Zone
Parallel screw rack with hot gas circulation defrost, no electric heating strip to prevent local temperature surge.
Mandatory -35℃ Blast Freezer Standard
Full two-stage compound compressor unit (single-stage machine cannot stabilize -35℃); standard blast capacity: Room1-4 3 tons/12h, Room5 1.5 tons/12h, raw meat core temperature drop to ≤-18℃ within 12h complying GB31646.
Unified Power Safety
Dual municipal power supply + 72h UPS for full IoT monitoring system, uninterrupted encrypted data recording during power outage.
3 GB14881 HACCP Four-Zone One-Way Production Layout
Four fully solid-wall separated functional zones (cloth curtain separation forbidden):
1. Raw meat receiving & thawing buffer zone
2. Semi-finished braised pre-cool zone
3. Qualified finished product storage zone
4. Unqualified/recalled meat isolation cold room
Three Independent Passage Rule
Separate personnel clean passage / raw material cargo passage / waste residue exclusive passage, strict one-way flow to eliminate cross-contamination between raw and cooked meat.
Sanitary Hard Requirement
All wall-floor arc transition, UV disinfection lamp installed inside each chamber, easy high-temperature cleaning daily.
4 Full Food Traceability IoT Monitoring Platform
- Multi-point PT100 sensors, temp fluctuation controlled ≤±0.8℃, auto record every 30min;
- 2-year non-editable encrypted cloud storage, one-click export HACCP audit report for market supervision;
- Multi-level linkage alarm: on-site sound-light + mobile SMS remote warning for temperature over-limit;
- Seamless data docking with factory production ERP for batch traceability.
5 Measurable 12-Month Operation Benefits
- Four physical separated zones pass food supervision audit at one time without rectification;
- Double full vapor barrier eliminate wall condensation, meat mold scrap rate reduced from 12.3% down below 2.2%;
- N+1 standby unit completely avoid mass cooked meat loss in summer high temperature;
- Two-stage blast freezer shorten freezing cycle, daily processing capacity increased 2.3 times;
- Inverter energy-saving system cut monthly power consumption by 22–30%.
6 6 Common Hubei Meat Factory Cold Storage Inspection Pitfalls
- Single-layer insulation without double vapor barrier → Plum rain wall condensation & meat mildew
- Single-stage unit for -35℃ blast freezer → Cannot meet quick-freezing national standard
- Only cloth partition instead of solid wall → Direct food supervision audit failure
- No standby compressor for 24h production line → Whole batch cooked meat scrapping risk
- Editable temperature recording system → All trace data invalid for inspection
- No independent unqualified meat isolation room → Mandatory shutdown rectification
Simple Meat Factory ROI Calculation Formula
Annual Net Income = Domestic & Export Sales Premium − Annual Electricity & Maintenance − Spoilage Loss Reduction
Full Payback Months = Total Turnkey Investment ÷ Average Monthly Net Profit
FAQ For Braised Meat & Food Factory Managers
Q1 What compressor for -35℃ blast freezer?
Two-stage compound unit is mandatory per GB31646; single scroll cannot reach stable -35℃.
Q2 What special moisture-proof design for Jingzhou plum rain food factory?
Full double HDPE warm-side vapor barrier for wall & ceiling, heating air curtain for all cold doors.
Q3 Why raw and cooked meat must be separated by solid wall?
GB14881 forbids raw-cooked mixed storage to avoid cross-contamination and food safety risks.
Q4 How long need to store cold room temperature records?
Minimum 2 years non-editable encrypted storage for food supervision spot check.
Custom Meat Processing Cold Storage Inquiry
Provide daily processing tonnage and main meat varieties to get HACCP multi-temperature layout & itemized quotation.

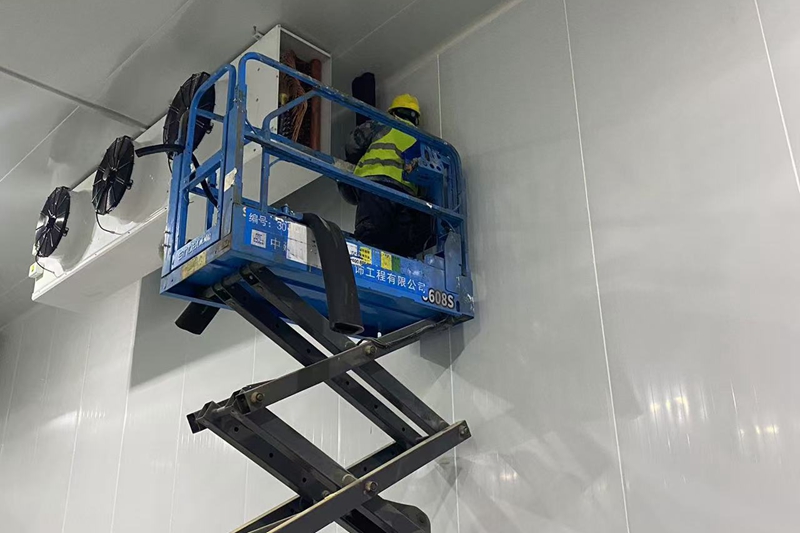

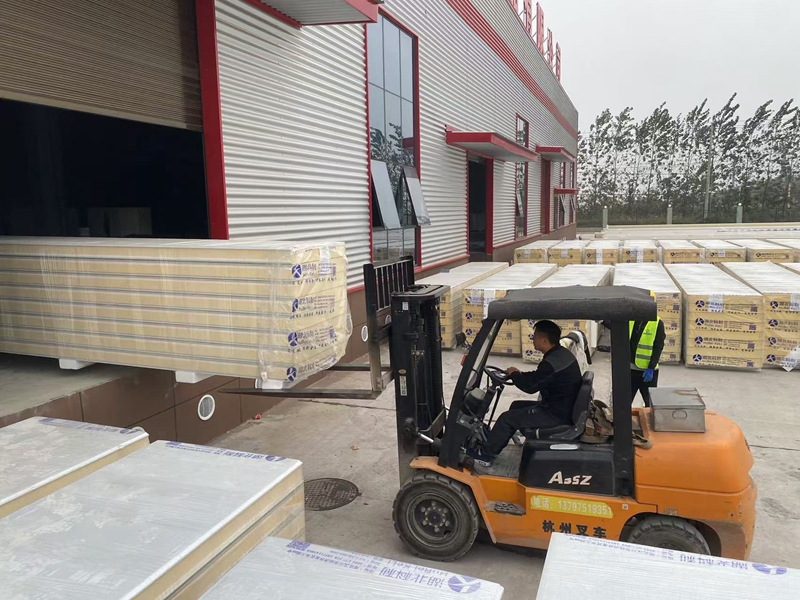

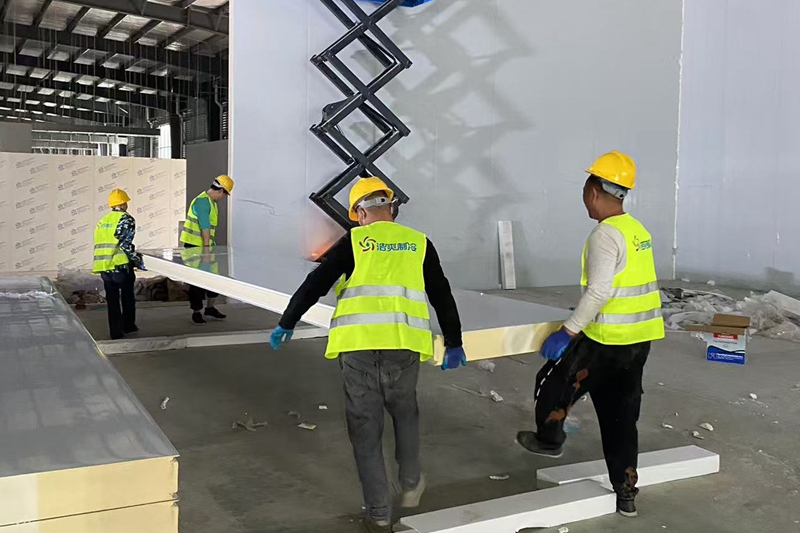

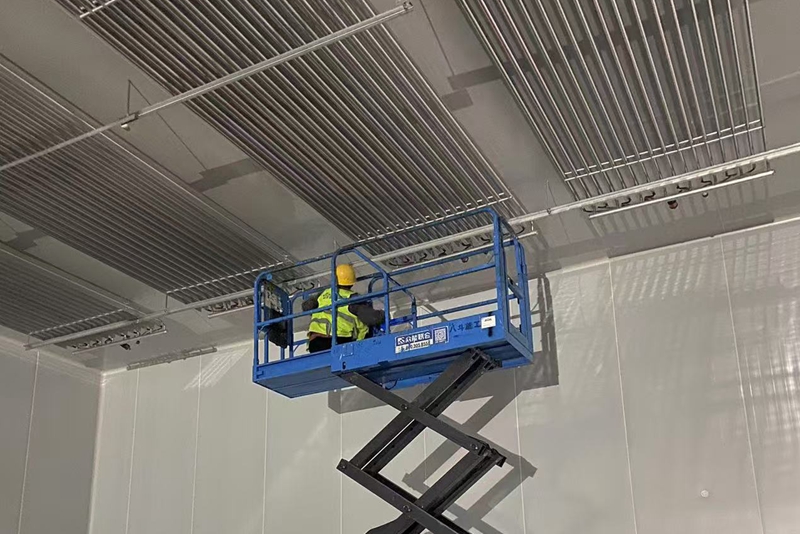

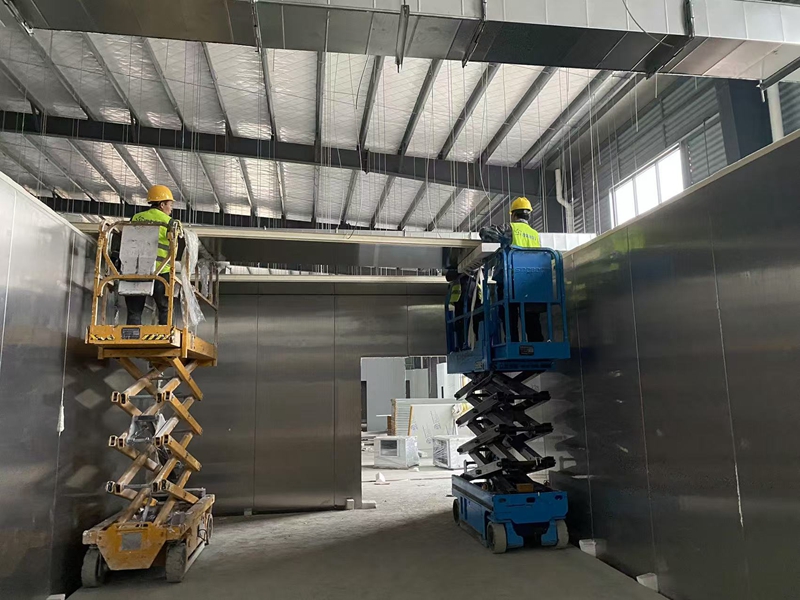

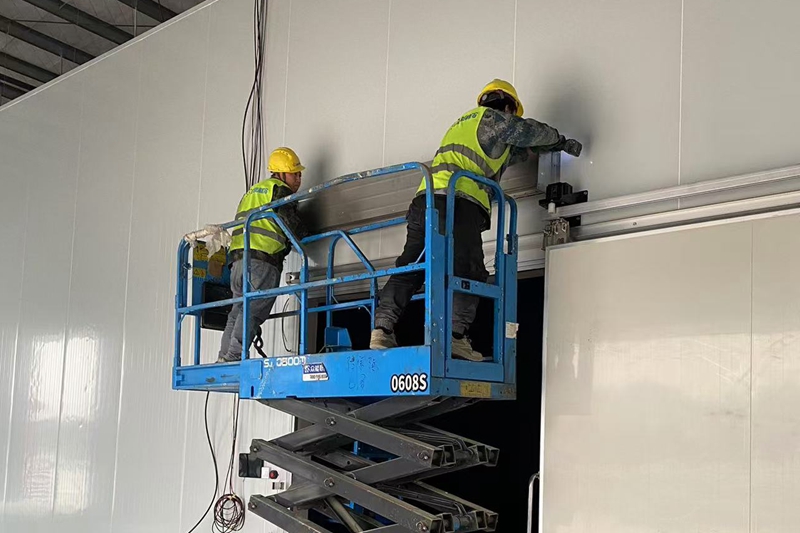

Construction & Completion Photos
