Foxconn Technology Group 2,400㎡ Explosion-Proof Battery Cold Storage Design & Construction Plan

Project Overview

Foxconn Technology Group commissioned the construction of three explosion-proof cold storage facilities, located in Shenzhen, Zhengzhou, and Taiyuan. Each warehouse was specifically designed for battery storage with explosion-proof safety requirements. The total construction area covers 2,400㎡, with storage temperatures maintained between 10–15℃.

Key Requirements

1. Explosion-Proof Design: All three warehouses (Shenzhen, Zhengzhou, Taiyuan) required internal explosion-proof capabilities to safely store batteries.
2. Floor Insulation: A multi-layer floor structure including SBS waterproofing, 100mm XPS insulation boards, PE vapor barriers, reinforced concrete (C30 grade), and anti-static epoxy flooring.
3. Centralized Control: Real-time monitoring and management of temperature, humidity, and safety systems.
4. Energy Efficiency: Cost-effective solutions with high-performance equipment.
5. Compliance: Adherence to URS specifications and international safety standards.

Technical Solution

1. Facility Layout

• Shenzhen Warehouse: 600 m² (3 rooms, each 200 m²) with a clear height of 8 meters.
• Zhengzhou Warehouse: 1,375 m² (1 room) with a clear height of 6 meters.
• Taiyuan Warehouse: 446 m² (2 rooms: 228 m² + 218 m²) with a clear height of 3 meters.

2. Refrigeration System

• Compressors: German-made Bitzer piston compressors for high cooling capacity, reliability, and energy efficiency.
• Redundancy Configuration:
  • Shenzhen & Taiyuan: 2 operational units + 1 backup per room.
  • Zhengzhou: 3 operational units + 1 backup.
• Evaporators: Explosion-proof air coolers with corrugated aluminum fins and copper tubes for efficient heat exchange, forced air circulation, and rapid cooling. Patented small-temperature-difference heat transfer technology ensured low noise and stable operation.

3. Insulation Structure

• Floor Construction: Multi-layer system comprising:
  • SBS waterproofing layer.
  • 100mm XPS insulation boards.
  • PE vapor barrier.
  • 200mm × 200mm reinforced steel mesh.
  • 100mm reinforced concrete (C30 grade).
  • Anti-static epoxy coating.

4. Control & Monitoring System

• Automation: Siemens fully automated temperature control system with real-time monitoring, data logging, and mobile alerts.
• Safety Features: Temperature and humidity alarms, remote access via mobile client, and emergency shutdown capabilities

Construction & Completion Photos

Real scene of Foxconn Technology Park in Longhua, Shenzhen

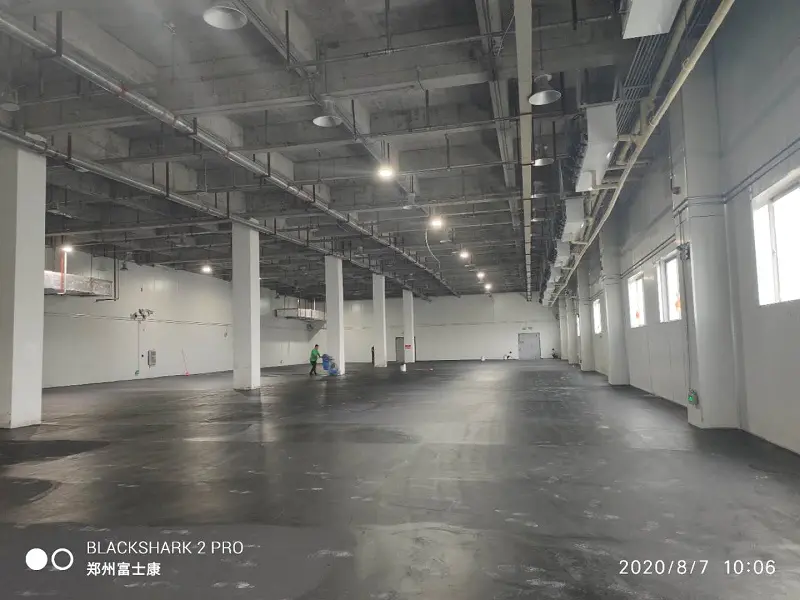

Epoxy flooring is being done in the warehouse

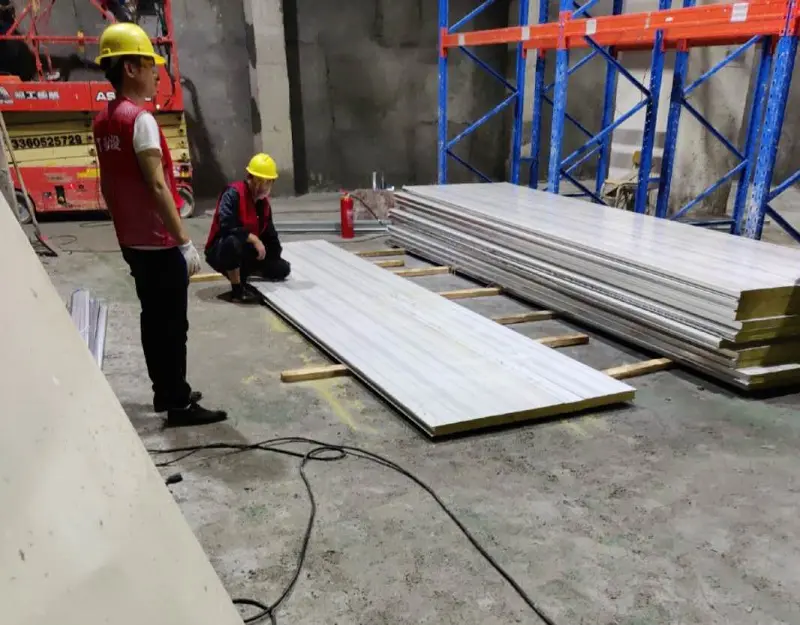

Workers are installing cold storage panels

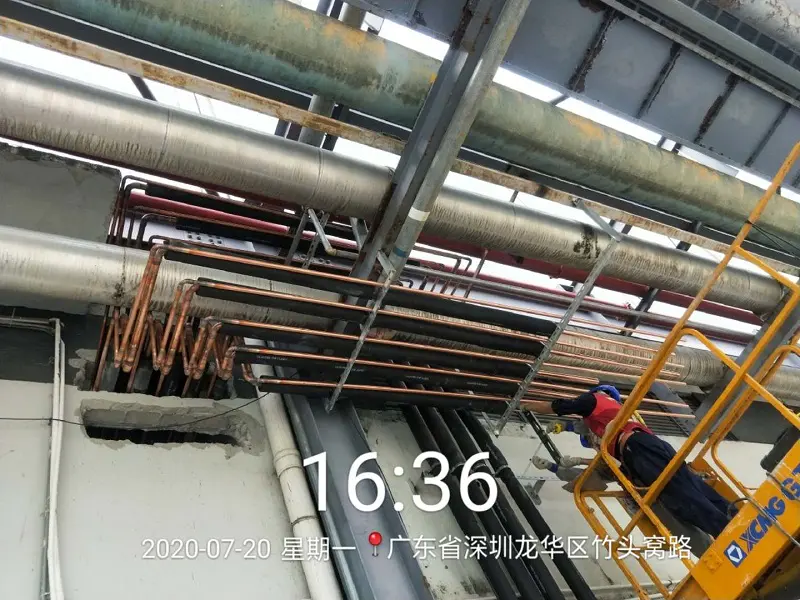

Workers are welding copper pipes

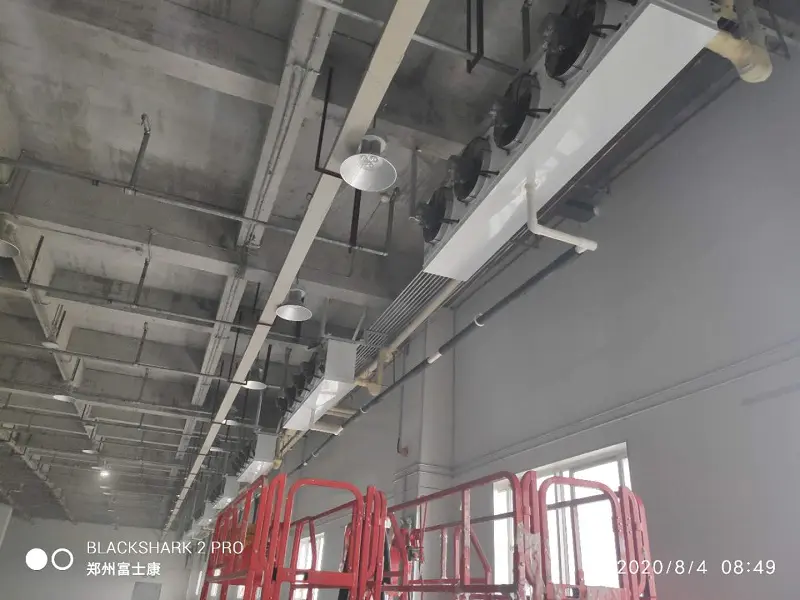

Air cooler installed
