Qiaqia Foods 49,500m³ Cold Storage Project for Nut Processing and Raw Food Preservation in China

Project Overview: Precision Storage for Nut & Snack Processing

Project Scope: Design, construction, and commissioning of a large-scale, multi-zone cold storage facility totaling 49,500 cubic meters (m³) for food raw material processing and storage.

Application: Dedicated storage for nuts, dried fruits, and semi-finished products requiring precise temperature and humidity control.

Project Phases & Key Specifications

Phase I (Completed July 2018):

Volume: 19,500 m³

Facilities: Automated Constant Temperature Cold Rooms, Fresh-Keeping Cold Rooms.

Phase II(Completed March 2020):

Automated Controlled Atmosphere Fresh-Keeping Cold Room:

• Volume: 12,500 m³
• Temperature Range: Adjustable 0°C to 10°C
• Humidity: ≤ 50% RH (Independent Dehumidification)
• Primary Use: Storage of nuts and dried fruits.

Refrigerated Storage:

• Volume: 8,750 m³
• Temperature: 0°C to 5°C
• Humidity: ≤ 50% RH (Independent Dehumidification)

Constant Temperature Storage:

• Volume: 8,750 m³
• Temperature: 5°C to 15°C
• Humidity: ≤ 50% RH (Independent Dehumidification)

Critical Performance:

• Cooldown Time: Achieves target temperature throughout the entire warehouse within 3 hours.
• Temperature Uniformity: Ensured consistent temperature distribution across all storage zones.

Advanced Engineering & Technology

Structure: Pentagonal (5-sided) design. All systems (Phase I & II) are independent, allowing for separate operation and control.

Insulation:

• Walls & Ceiling: 100mm thick Polyurethane (PU) Sandwich Panels with double-sided color steel sheets, rated B1 Fire Resistance (Chinese Standard, equivalent to high fire retardancy).
• Floor: 200mm thick High Compressive Strength XPS (Extruded Polystyrene) Insulation.

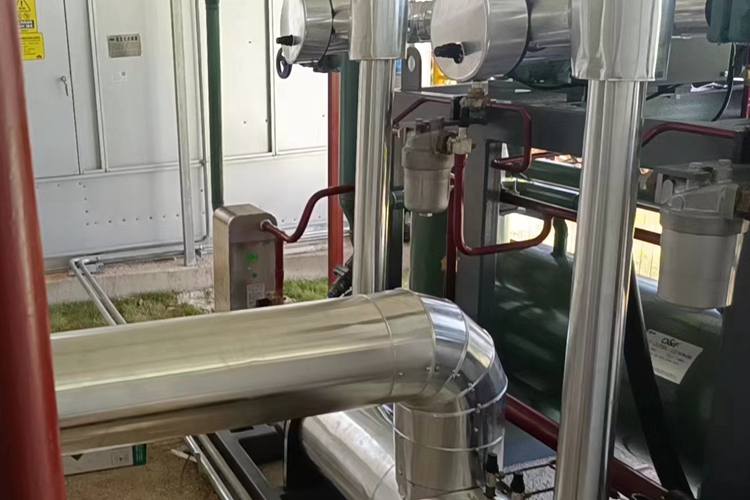

Refrigeration System:

• Compressors: Internationally renowned, energy-efficient, low-noise, eco-friendly brands (Panasonic, Sanyo) chosen for reliability and low maintenance costs.
• Refrigerant: Environmentally friendly R404A.
• Valves & Components: Premium Danfoss (Denmark) brand valves and components.
• Air Coolers (Evaporators): High-performance units from KaBeO and Jiesheng.

Control & Monitoring System:

• PLC Central Control System: Provides fully automated temperature and humidity regulation.
• Independent Control: Separate and independent operation for temperature and humidity control systems.
• Data Logging & Display: Real-time temperature and humidity display with automatic data storage and recording.
• Alarms & Remote Monitoring: Features include accidental door closure alarm and remote monitoring capabilities.

Project Outcome & Client Satisfaction

Both Phase I (operational since 2018) and Phase II facilities have been successfully handed over and are in full operation.

The cold storage equipment has been performing exceptionally well since handover.

ChaCha Food has expressed high recognition and satisfaction with the project’s execution, performance, and reliability.

Client Profile: Qiaqia Foods Co., Ltd.

ChaCha Food Co., Ltd. (SZSE: 002557), founded in 2001, is a globally recognized leader in nut and seed-based snack production.

Its popular brands include the iconic Red Bag Sunflower Seeds, Blue Bag Flavored Seeds, Little Yellow Bag Daily Nuts, and Little Blue Bag Probiotic Daily Nuts.

Driven by the mission “Craft Delicious Nuts, Share Happy Moments“, ChaCha boasts a robust marketing network with products enjoyed across China and exported to nearly 50 countries and regions, including Southeast Asia, Europe, and the Americas.

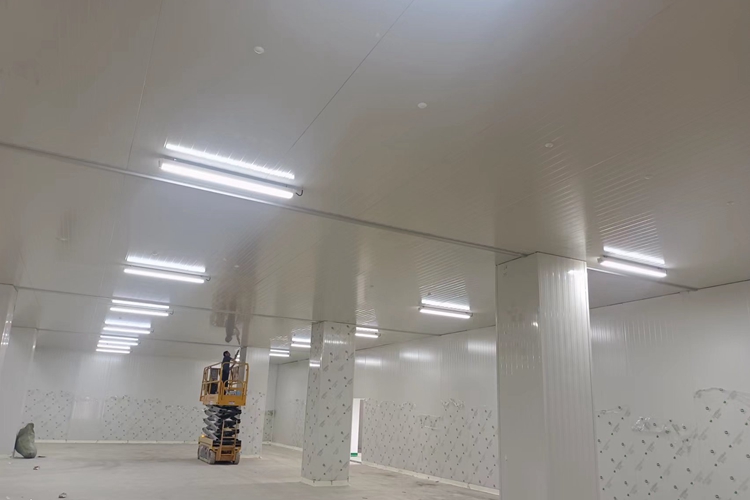

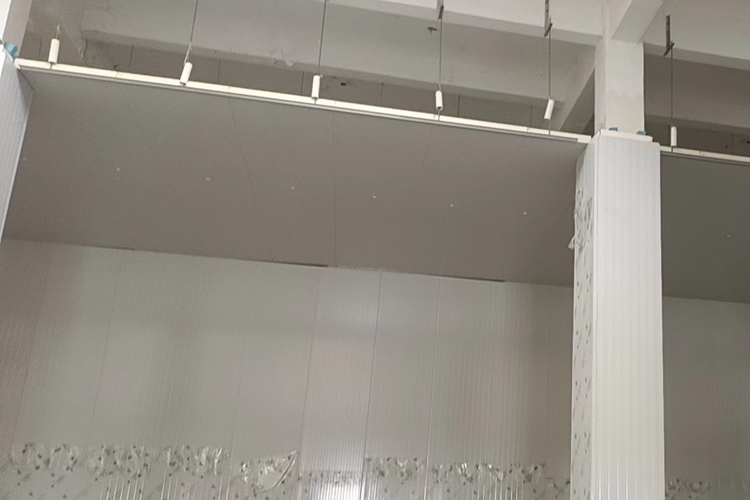

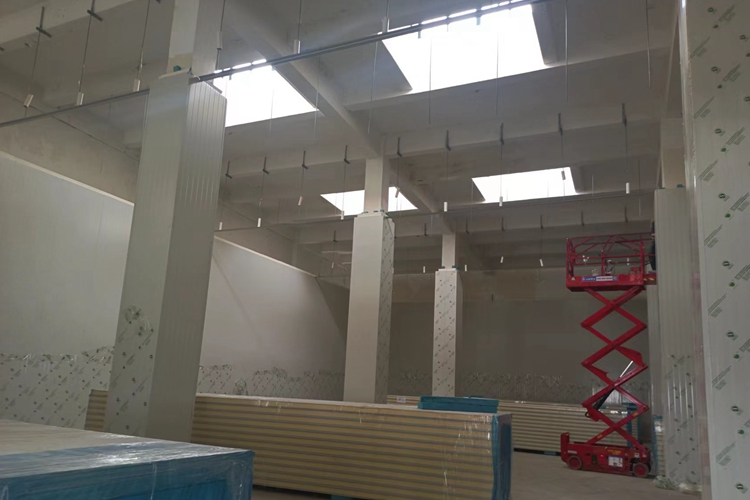

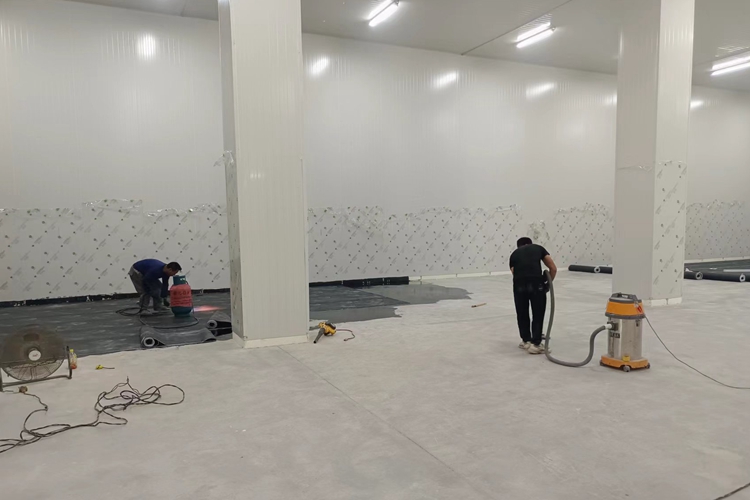

Construction & Completion Photos
