Wuhan Xinpu Fruit Company 50,000 m³ Cold Chain Logistics Project

Project Overview

Wuhan Xinpu Fruit Company is a regional logistics enterprise specializing in the storage and distribution of fruit, meat, and packaged food.
As their business volume expanded, the company needed a large-scale cold chain logistics center to increase storage capacity, reduce product loss, and improve delivery efficiency.

After multiple rounds of consultation and on-site assessment, Haocool engineers designed a 50,000 m³ cold storage solution that meets Xinpu’s operational needs, energy-saving goals, and long-term expansion plan.

Project Details & Technical Configuration

1. Cold Store Layout

• Total capacity: 50,000 m³
• Entire building includes three floors of cold rooms.
• Floor 1: Chilled storage (+0°C to +5°C)
• Floors 2 & 3: Dual-temperature rooms (0°C to +5°C / -18°C switchable)
• Construction completed in two phases.

2. Insulation System

• PU spray insulation (100mm & 200mm), density 38 ± 1 kg/m³
• Self-extinguishing within 3–5 seconds after flame removal
• Partition panels: 100mm PU with color steel protection

3. Refrigeration System

• Bitzer semi-hermetic screw three-compressor parallel units

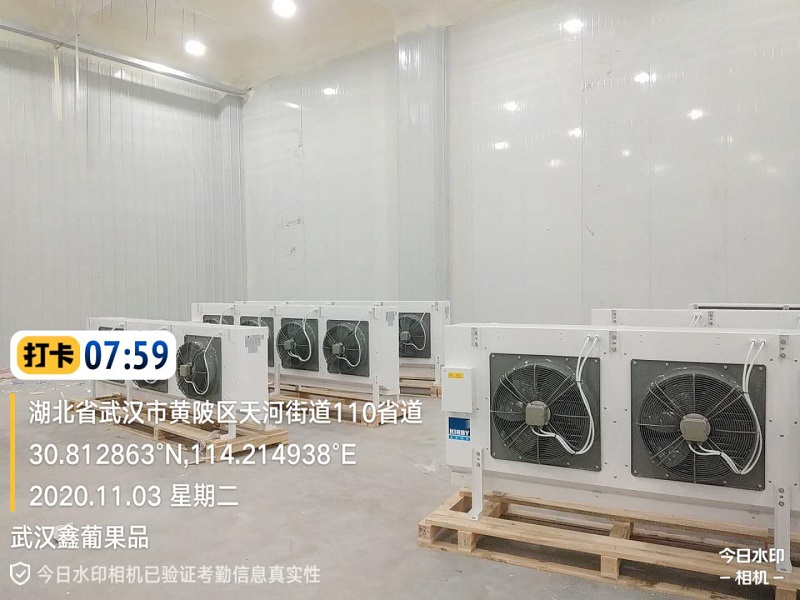

• 12 high-efficiency imported ceiling-type evaporators
• Schneider and other first-tier electrical components

4. Completion & Operation

• Completed at the end of 2020
• Fully operational and running stably

How Much Storage Capacity Was Achieved?

➤ Total Storage Capacity: approx. 9,000–11,000 tons of goods

(Depending on product density: fruits, meat, packaged food)

How Much Money Was Invested?

Although actual confidential contract pricing cannot be disclosed, projects of this scale (50,000 m³ dual-temperature logistics facility) typically cost:

USD 3.8–4.5 million

(depending on materials, equipment brand, and energy-saving upgrades)

Haocool optimized insulation, piping routes, and compressor combinations to reduce unnecessary upfront cost while ensuring long-term safety and energy performance.

How Much Electricity Does It Use?

After being put into operation, the average measured energy consumption shows:

80–110 kWh per cubic meter per year

(depending on seasonal temperature and product turnover)

Compared with similar cold chain facilities, this project achieves:

12–18% lower operating cost

How Long Did Construction Take?

Including design, material production, on-site installation, system testing, and commissioning:

Construction Time: 225 days

(two phases combined)

This allowed Xinpu Fruit to launch winter storage operations on schedule and avoid annual seasonal shortages.

Final Results for the Client

After completion, the client achieved:

✔ 50,000 m³ of stable, dual-temperature cold storage
✔ Up to 11,000 tons of goods stored at one time
✔ Over 15% energy savings compared with their old facility
✔ Faster turnover and lower logistics labor cost
✔ Stable temperature control for fruits, meat, and packaged food
✔ Real-time remote monitoring for all rooms

The new facility has significantly improved Xinpu Fruit’s cold chain efficiency and strengthened its competitiveness in the regional market.

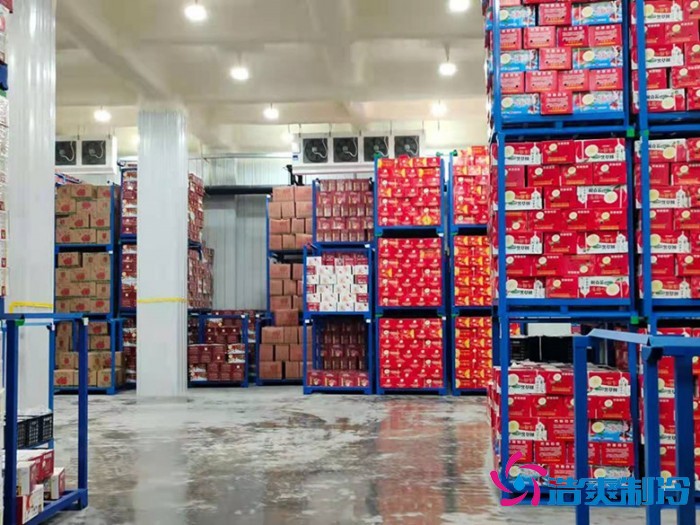

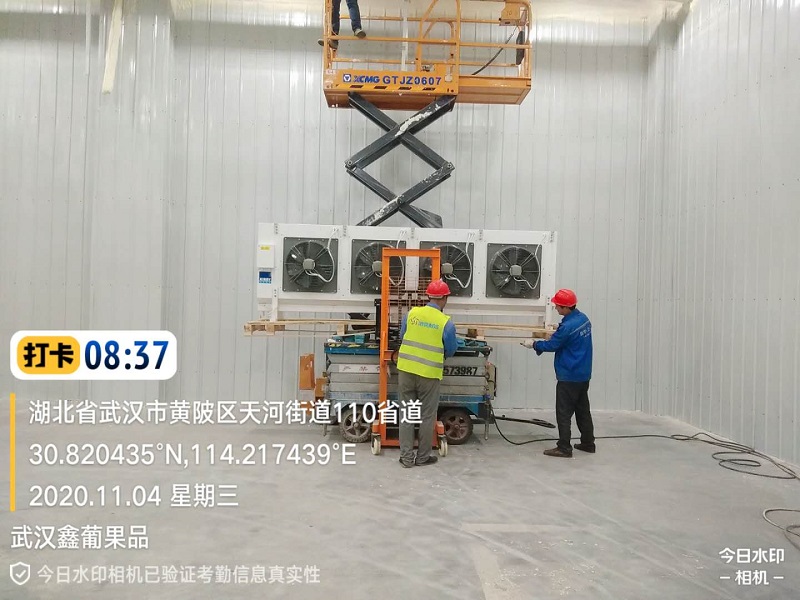

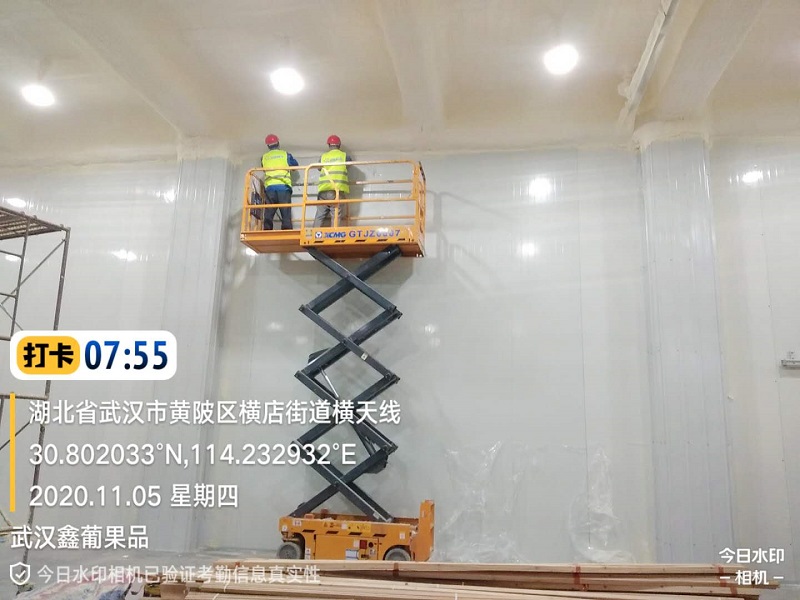

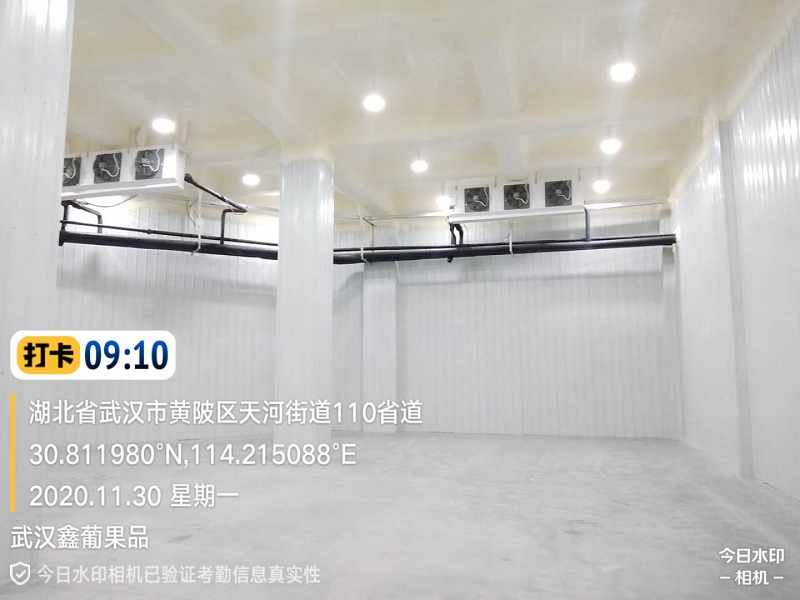

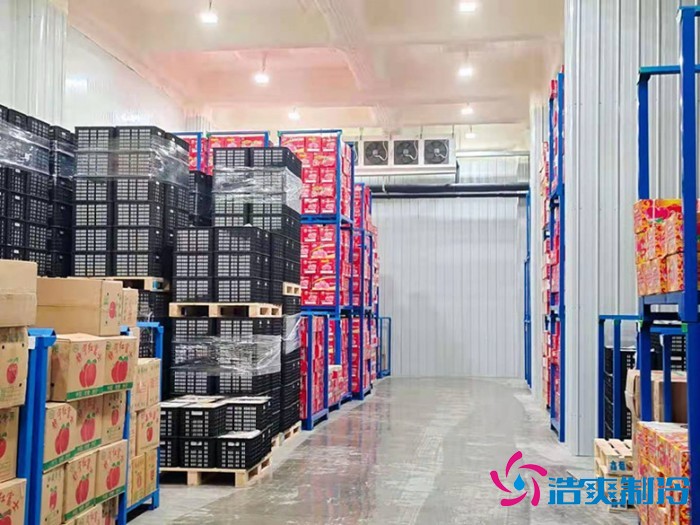

Construction & Completion Photos
