China cold storage solution provider
1. Project Overview
Client: JINZHONG FOOD (Leading Sichuan meat processor supplying China & global markets)
Location: Sichuan, China
Capacity: 6,000m³ Integrated Cold Storage
Key Requirements:
Multi-zone design: Aging Coolers (0-5°C), Rapid Pre-cooling Rooms, Frozen Storage (-18~-25°C), Blast Freezers (-30~-35°C)
2. Engineering Solutions
(1) Multi-Temperature Zone Design
| Zone | Temperature | Function |
|---|---|---|
| Aging Coolers | 0-5°C | Meat tenderization |
| Pre-cooling | Rapid-chill | Preserve freshness |
| Frozen Storage | -18~-25°C | Long-term preservation |
| Blast Freezers | -30~-35°C | IQF processing in ≤4 hours |
(2) Refrigeration System
- Core Tech: German BITZER Reciprocating Compressors
- High efficiency (COP >3.2), low maintenance, 24/7 reliability
- Evaporators: KAYDI High-Velocity Air Coolers (Zhejiang, China)
- Features: Ultra-quiet (≤65dB), 15m air throw, rapid defrosting
- Outcome: ±0.5°C temperature uniformity
(3) Thermal Insulation
| Zone | Insulation Thickness | Material |
|---|---|---|
| 0-5°C Rooms | 100mm | B1 Fire-rated PUF Sandwich Panels |
| -18~-35°C Rooms | 150mm | B1 Fire-rated PUF Sandwich Panels |
*Benefits: IPX6 moisture resistance, 0.023 W/(m·K) thermal conductivity, 30% energy saving vs. standard EPS*
(4) Intelligent Control System
- Siemens PLC Control Center
- Automated operations: Startup/shutdown, defrost cycles
- Safety: Real-time alarms (SMS/email), temperature deviation alerts
- Redundancy: Auto-switch to backup units during failures
- Remote access: Cloud-based monitoring via web/mobile
3. Energy Efficiency & Cost Control
- Bitzer Eco+ Compressors: 20% lower power consumption
- KAYDI EC-fan Evaporators: 30% energy reduction vs. AC fans
- PUF Panel ROI: ≤3-year payback via reduced electricity costs
4. Compliance & Certifications
- Meets EU EN 378 refrigeration safety standards
- Materials: FDA-compliant, corrosion-resistant stainless steel
- Documentation: Full validation protocols (IQ/OQ/PQ) provided
5. Client Profile: Sichuan Jin Zhong Food Co., Ltd.
- Core Business: Premium pork/beef products (fresh, frozen, processed)
- Market: Retail (Walmart, Carrefour), HORECA, export to EU/ASEAN
- Quality Cert: ISO 22000, HACCP, China Green Food
6. Project Outcome
✅ 95% energy efficiency vs. conventional meat cold stores
✅ <2% product loss during 12-month operation
✅ Centralized control reduces staffing needs by 40%
Ready to optimize your meat cold chain?
Contact our engineers for a custom design – 24h response guaranteed.

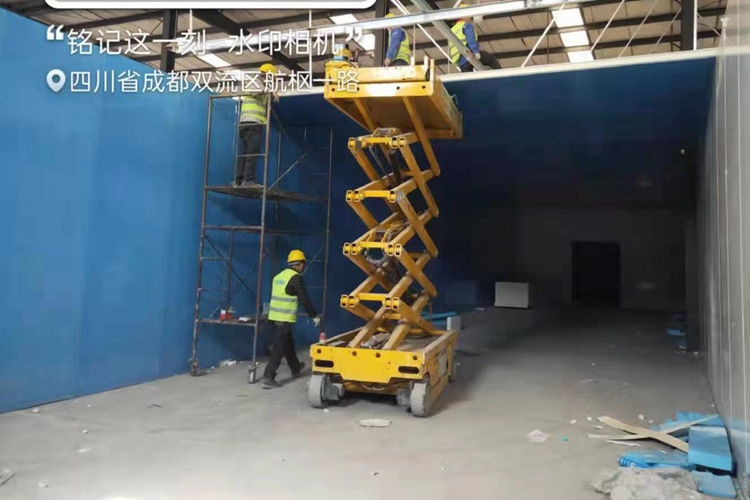

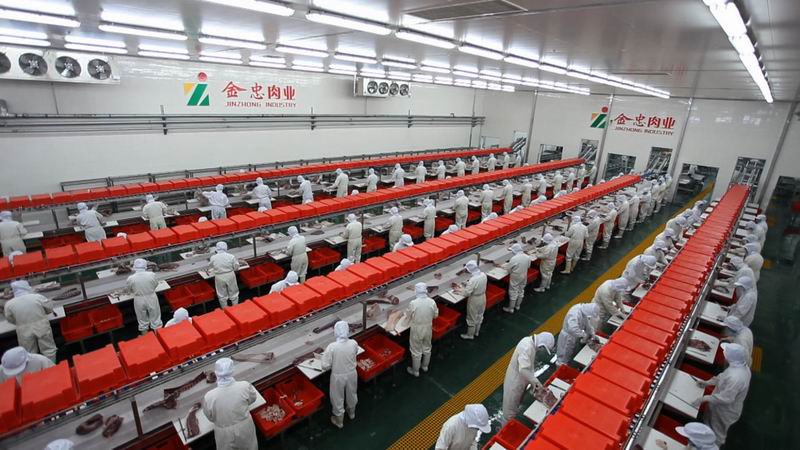

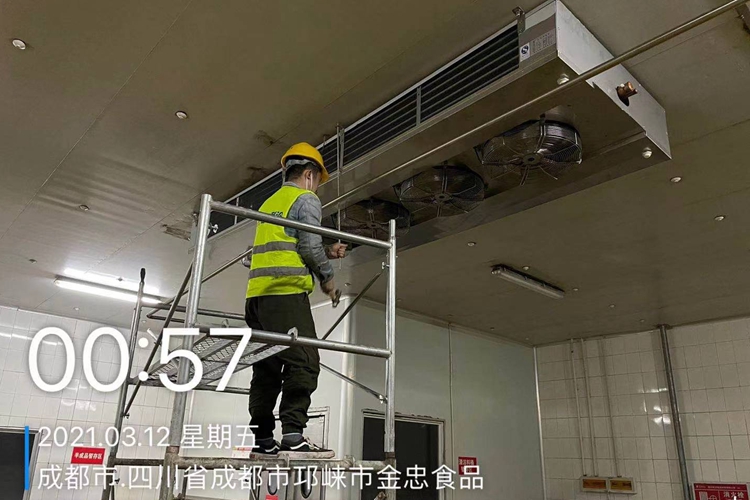

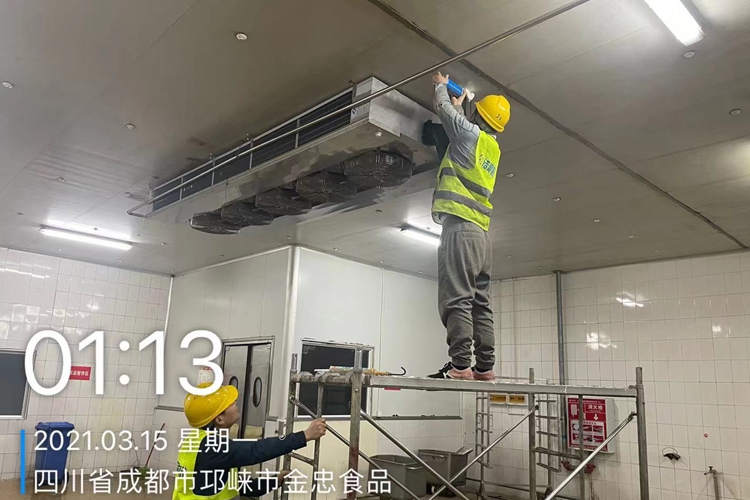

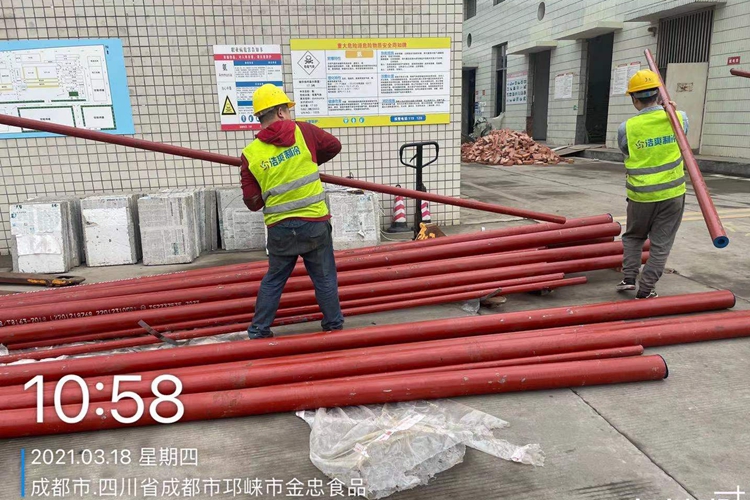

Construction & Completion Photos
Jinzhong Food Meat Cold Storage is now in use
