Chengdu Institute of Biological Products 1,100 m³ Rabies Lyophilized Vaccine GSP Cold Storage EPC Case

Author: Sichuan Subtropical GSP Biologics Cold Chain Senior Engineer

12 years vaccine & biotech cold storage EPC experience for Sinopharm subsidiaries in Sichuan/Yunnan. Familiar with GB 50072-2021, National GSP Appendix Cold Chain, GB/T34399 Cold Storage Validation & Vaccine Administration Regulation, specialize in high-humidity Chengdu plum rain anti-condensation & full FDA/GMP/GDP compliant vaccine warehouse design.

Project Overview

Chengdu Institute of Biological Products (Sinopharm Group) is a national key rabies vaccine R&D & production base, mass producing freeze-dried rabies vaccine requiring strict 2–8℃ constant low-humidity storage. The customized 1,100 m³ independent six-chamber cold storage solves original scattered small warehouse temperature fluctuation & batch activity loss issues, fully complying domestic GSP + EU GDP export audit standards.
Local climate feature: Chengdu subtropical basin, annual average RH 78%~88%, long plum rain season; single-layer insulation causes wall condensation, vaccine aluminum foil packaging damp & protein denaturation without double HDPE full vapor barrier.

Core Standard Engineering Data

• Total nominal volume: 1,100 m³, divided into 6 independent solid-wall vaccine chambers
• GB50072 capacity calculation (small warehouse η=0.4, boxed lyophilized vaccine ρ=0.3t/m³):
  Total usable vaccine ton = 1100 × 0.4 × 0.3 = 132 tons (400 standard EUR pallets)
• Mandatory vaccine storage standard: Temp 2~8℃, fluctuation ≤±0.5℃, RH 35–75%
• Full construction + DQ/IQ/OQ/PQ four-stage validation cycle: 32 working days
• Compliance certification: National GSP, ISO13485, EU GDP, drug supervision temperature mapping report


Pre-Construction Core Compliance & Production Pain Points

• Old scattered small rooms without independent standby compressors, summer high ambient temp over 10℃, 2 consecutive drug supervision rectification notices;
• Single-layer insulation without full vapor barrier, plum rain wall continuous condensation, rabies vaccine damp scrap rate up to 9.1%;
• Editable manual temperature records, unable to provide 5-year encrypted trace data for annual GSP inspection;
• Mixed qualified & unqualified vaccine without solid partition, risk of cross-contamination & batch recall;
• No independent dehumidifier, RH exceeds 80% long-term accelerates lyophilized powder protein inactivation.

1 Chengdu Plum Rain Exclusive Anti-Condensation GSP Envelope System

Comply with GB50072 full warm-side double HDPE vapor barrier mandatory clause for subtropical high-humidity biotech factory:

Envelope Part	Standard Specification	Vaccine Hygiene & Moisture Optimization
Wall/Ceiling Panel	100mm B1 low-smoke zero-halogen stainless steel PUR	Double full HDPE vapor barrier on hot side; all panel joints filled mildew-proof low-temp silicone sealant; 50mm seamless 304 stainless arc wall for daily disinfection

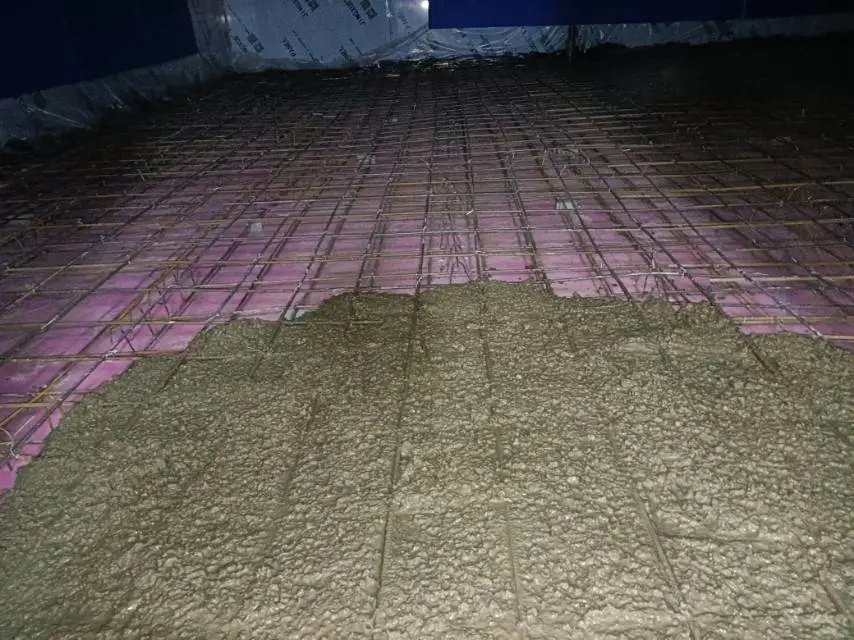

Floor	Double 50mm XPS anti-freeze insulation	Anti-slip wear concrete, 0.5% drainage slope for disinfection wastewater
Cold Door & Vestibule	Stainless auto-closing sliding door	13 sets heating air curtain with limit switch to block hot humid outdoor air inflow

Core construction rule: All suspension brackets & pipeline holes fitted nylon cold-bridge insulation gaskets to eliminate wall sweating; every chamber independent air lock buffer room.

2 Per-Chamber N+1 Redundant Refrigeration & Full Power Backup

Six fully separated vaccine rooms adopt independent refrigeration loop respectively:
7 sets frequency conversion modular air handling units configured as 1-main-1-standby auto-switch group per zone; matched low-dehydration evaporator + industrial rotary dehumidifier to lock RH 35–75%.

GSP Mandatory Power Safety System

1. Dual independent municipal power supply from two transformers;
2. 72h dedicated UPS for full monitoring & alarm equipment;
3. Emergency diesel generator auto startup within 15min for long power outage;
4. Complete hot gas defrost without local temperature spike damaging vaccine activity.

3 GSP Three-Zone Physical Isolation Layout (Solid Wall Only, Curtain Forbidden)

Every chamber divided into three independent functional areas by partition wall:
1. Yellow marking Pending Inspection Zone
2. Green marking Qualified Lyophilized Rabies Vaccine Storage Zone
3. Red marking Unqualified / Expired Vaccine Isolation Zone
All personnel & goods implement one-way access flow, avoid cross mixing of finished & defective vaccines.

Sanitary Hard Standard

Full tri-proof LED explosion-proof lighting, regular UV disinfection lamp installed inside each cold room, no sanitary dead corners for high-temperature alcohol flushing.

4 Five-Year Tamper-Proof Intelligent GSP Monitoring Platform

1. Multi-point PT100 high-precision sensors (accuracy ±0.5℃), data auto record every 10 minutes;
2. 5-year non-editable encrypted cloud storage, one-click export full trace report for domestic & EU GDP audit;
3. Four-level linkage alarm: On-site sound-light + SMS + PC backend + mobile APP remote warning for over-temp/high-humidity/power failure;
4. Complete temperature mapping full load test report delivered with validation files.


Mandatory Four-Stage Validation Handover

Full DQ (Design Qualification) / IQ (Installation Qualification) / OQ (Operation Qualification) / PQ (Performance Qualification) reports, including door opening temp recovery, 72h full load stability, power outage holding test.

5 Measurable 12-Month Operation Benefits

1. Three physical separated zones + stable 2–8℃ pass national drug supervision GSP one-time without rectification;
2. Double vapor barrier eliminate wall condensation, rabies vaccine damp scrap rate reduced from 9.1% down below 1.0%;
3. N+1 standby unit completely avoid whole batch vaccine protein inactivation during equipment breakdown;
4. Constant low-humidity system extend vaccine valid shelf life by 3 months;
5. Frequency conversion unit cut annual refrigeration power consumption by 20–25%.

6 8 Common Biotech Vaccine Cold Storage Supervision Pitfalls

1. No independent standby compressor per chamber → Irreversible vaccine activity loss during shutdown
2. Omit double HDPE vapor barrier for Chengdu plum rain → Packaging damp & protein denaturation
3. Cloth curtain instead of solid wall zoning → Direct GSP audit failure
4. Editable temperature recording system → All trace data invalid for inspection
5. Missing DQ/IQ/OQ/PQ validation files → Cannot obtain drug production inspection approval
6. No independent rotary dehumidifier → RH over 80% accelerates lyophilized powder failure
7. Single power supply without UPS/generator → Long power outage batch scrapping risk
8. Insufficient temperature sensors → Blind hot/cold spots inside warehouse undetected

Simple Biotech Factory ROI Calculation Formula

Annual Net Income = Vaccine Export Premium − Annual Power & Maintenance − Damp Spoilage Loss Reduction
Full Payback Months = Total EPC Investment ÷ Average Monthly Net Profit

FAQ For Biopharma Institute Infrastructure Managers

Q1 What temperature & humidity for lyophilized rabies vaccine?

Strict 2~8℃, fluctuation ≤±0.5℃, RH controlled 35–75% per GSP standard.

Q2 Why every vaccine room needs 1-main-1-standby unit?

Rabies vaccine protein permanently inactivated over 8℃, single machine failure causes massive economic loss.

Q3 What special moisture-proof design for Chengdu vaccine warehouse?

Double HDPE warm-side vapor barrier for wall & ceiling, heating air curtain for each cold vestibule.

Q4 What validation documents must be handed over after project completion?

Complete DQ/IQ/OQ/PQ four-stage cold storage validation & temperature mapping reports.

Custom Vaccine Cold Storage Inquiry

Provide vaccine variety, production batch volume & export certification demand to get GSP compliant zoning layout drawing & itemized quotation.

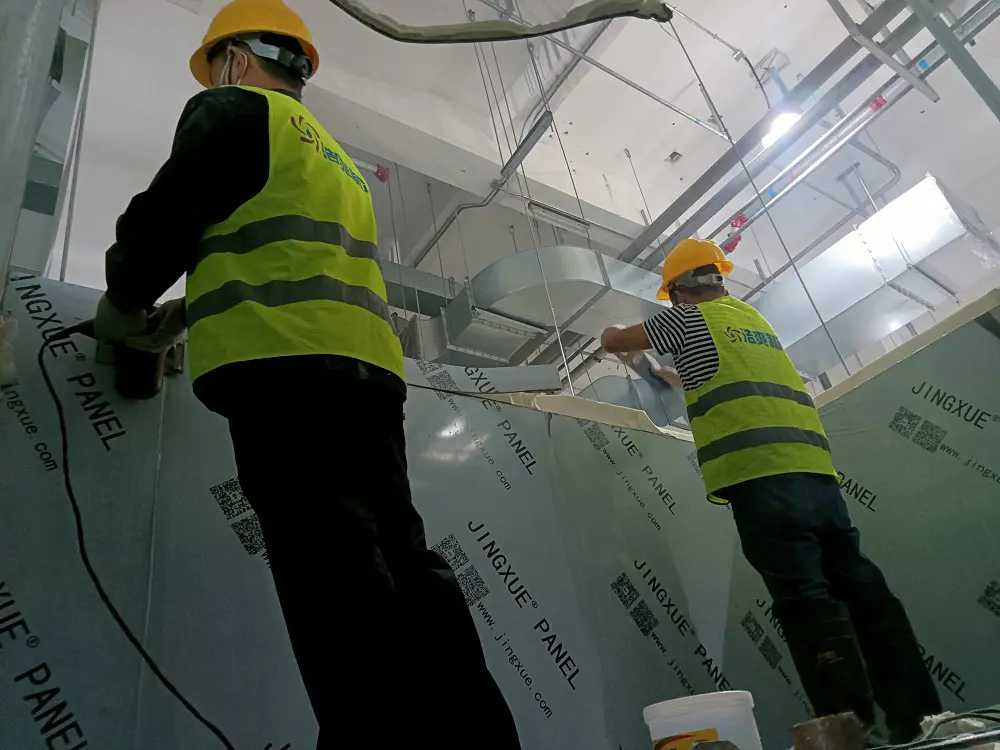

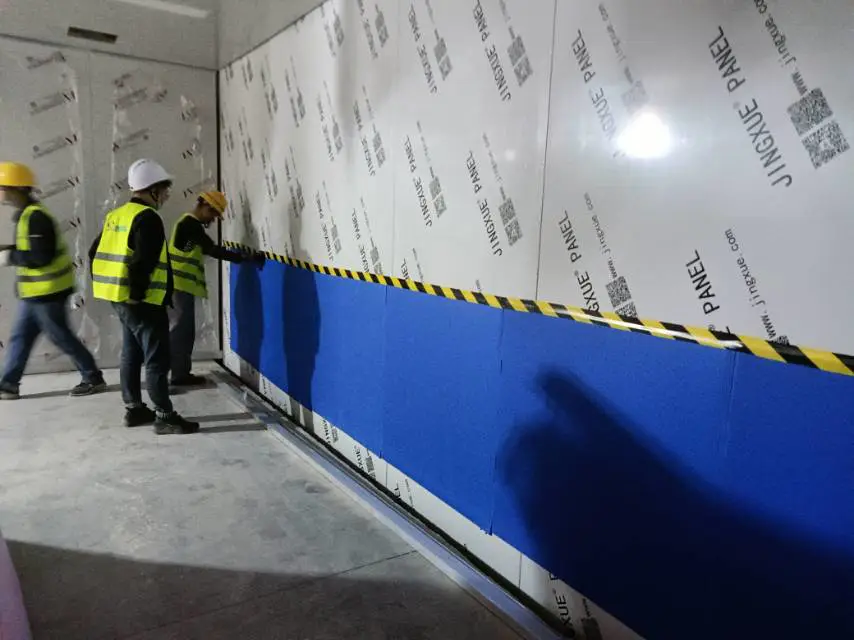

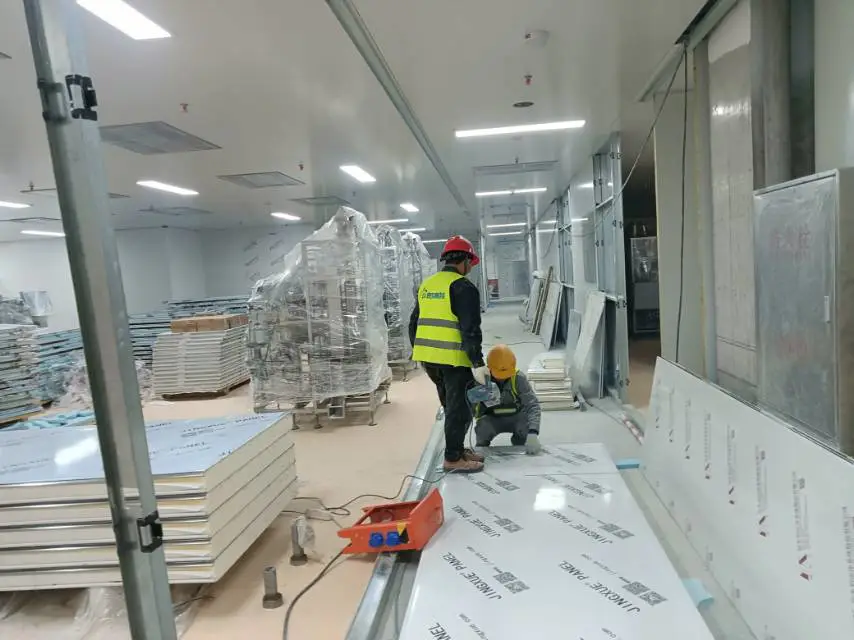

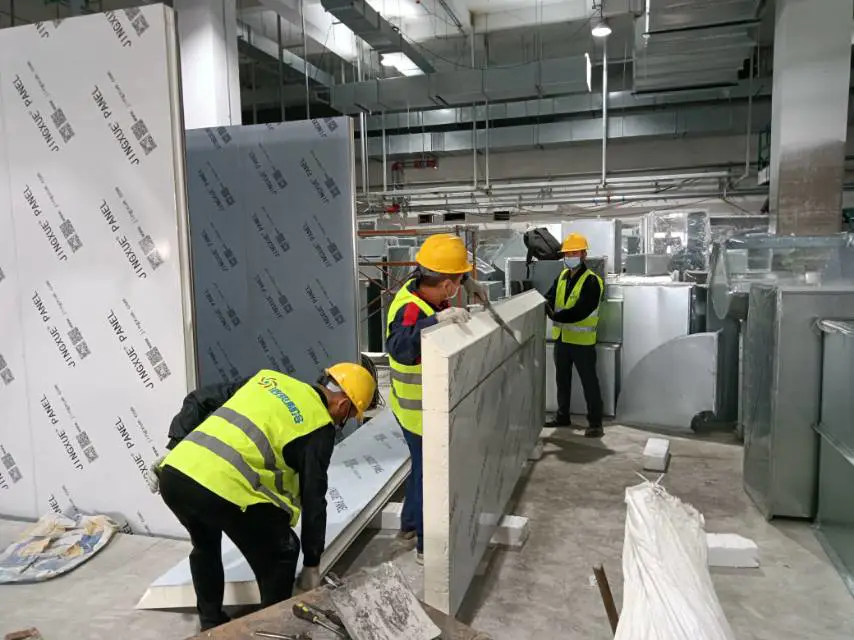

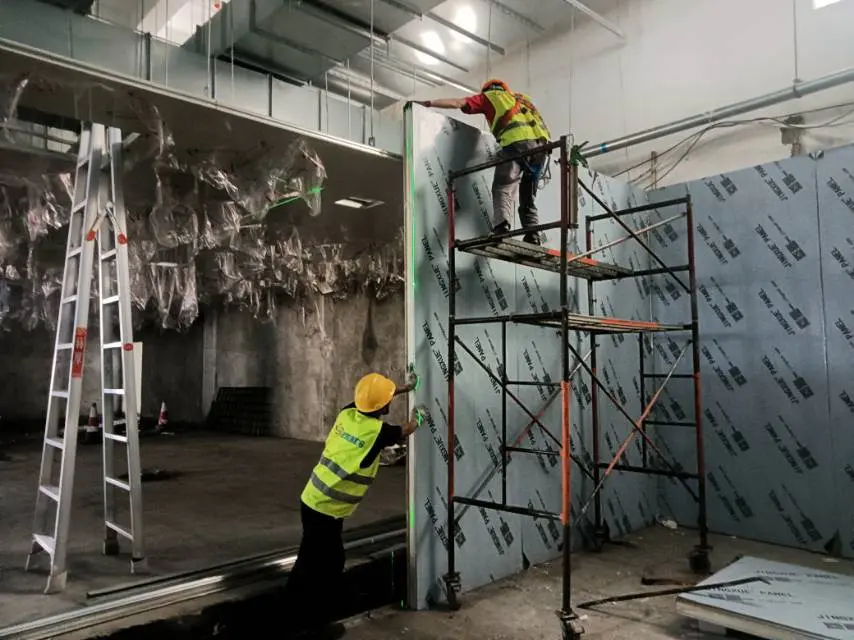

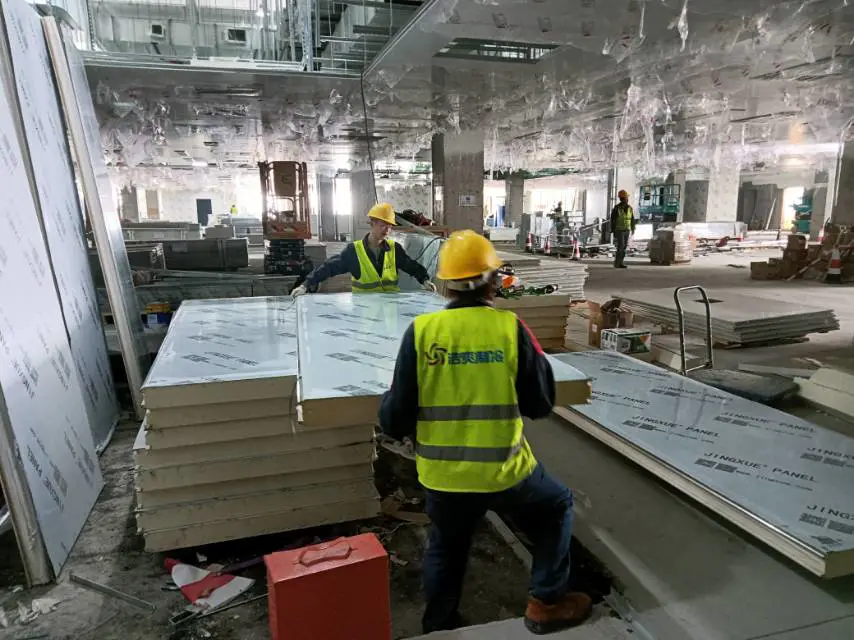

Construction & Completion Photos
