Shandong Lukang Pharmaceutical 32,500 ㎡ Large GSP/GMP Multi-Zone Cool Storage EPC Case

Author: North China API & Antibiotic Large Cold Chain Senior Engineer

12 years large pharmaceutical warehouse EPC experience for penicillin, cephalosporin raw material factories in Shandong, Hebei. Familiar with GB50072-2021 Cold Storage Standard, New Version GSP, Chinese Pharmacopoeia & GMP API Specification, specialize in North China winter anti-freeze & summer high-humidity double vapor barrier design.

Project Overview

Shandong Lukang Pharmaceutical is a national core manufacturer of penicillin, streptomycin and cephalosporin raw materials, with export business covering EU, Southeast Asia and North America. This 32,500㎡ two-story integrated GSP cool storage contains 22 independent solid-wall chambers, dedicated to raw medicine, finished formulations, capsule intermediates and packaging materials constant temperature storage.
Local climate feature: Jining Shandong temperate monsoon zone, summer high temperature & RH up to 83%, winter minimum -7℃; single-layer insulation causes wall condensation and floor frost heave without double HDPE vapor barrier & XPS anti-freeze ground.

Core Standard Engineering Data

1 Total construction area: 32,500㎡, divided into 22 independent chambers, total nominal volume 130,000 m³
GB50072 rule: Warehouse volume＞10000m³ η=0.6, boxed API density=0.32t/m³
Total usable antibiotic storage ton = 130000 × 0.6 × 0.32 = 24960 tons
2 Standard temperature classification (Comply with Pharmacopoeia cool storage definition ≤20℃, fluctuation ±2℃, RH45–75%)

Chamber Category	Design Temp	Storage Object
Penicillin/Cephalosporin Cool Zone	16℃	Antibiotic raw powder
Finished Drug Finished Goods Zone	16℃	Packed oral capsules
Packaging Material Warehouse	16℃	Carton & plastic packaging
0–5 Low-Temp Cold Room	0~5℃	Lyophilized biological seed samples

3 Full construction + DQ/IQ/OQ/PQ four-stage validation cycle: 105 calendar days
4 Compliance: Domestic GSP, EU GDP, enterprise GMP production audit

Pre-Construction Core Compliance Pain Points

1 Old scattered small warehouses without independent standby compressor per room, summer ambient over 35℃ leads long-term temp over 22℃, received 2 food & drug supervision rectification orders;
2 Single-layer insulation without full HDPE vapor barrier, summer wall condensation causes API powder damp & degradation, monthly scrap rate up to 8.7%;
3 Mixed qualified & unqualified antibiotics without solid partition, risk of batch cross-contamination;
4 Manual editable temperature records, unable to provide 5-year trace data for annual GSP inspection;
5 Shared single refrigeration system for multiple rooms, cross-temperature interference causes cephalosporin activity decline.

1 North China Winter-Summer Exclusive Anti-Frost & Anti-Condensation Envelope System

Comply with GB50072 warm-side double vapor barrier & floor anti-freeze mandatory clause:

Zone Type	PU/XPS Spec	Shandong Climate Optimization
16℃ Cool Storage Chamber	100mm B1 low-smoke PUR	Double HDPE full wall & ceiling vapor barrier, all suspension brackets with nylon cold-bridge gaskets, 50mm seamless 304 stainless arc wall for disinfection
0–5℃ Low Temp Room	100mm B1 PUR + Double XPS Floor	100mm double staggered XPS anti-freeze ground with underground heating pipeline to avoid frost heave

Core rule: Every loading vestibule equipped heating air curtain to block summer hot humid wind and winter cold air inflow; all panel joints filled mildew-proof low-temperature silicone sealant.

2 N+1 Independent Redundant Refrigeration System (22 Separate Rooms)

Each of the 22 pharmaceutical chambers configures exclusive 1-main-1-standby frequency conversion scroll rack, independent air-cooled evaporator & hot gas defrost pipeline, no cross temperature interference between zones:

• Main unit auto switch within 30s when standby triggered by overload or fault;
• Low-speed EC evaporator to reduce API powder moisture absorption;
• Full liquid barrel pump circulation system to stabilize flow under Jining high summer temperature.

Unified Power Safety Standard

Dual independent municipal power + 800kW emergency diesel generator + 72h dedicated UPS for monitoring equipment, uninterrupted encrypted data recording during long power outage.

3 GSP Three-Zone Color-Coded Solid Wall Layout (Curtain Separation Forbidden)

Every independent chamber internal divided into three physical separated areas:
1 Yellow marking: Pending inspection raw antibiotics
2 Green marking: Qualified finished pharmaceutical bulk
3 Red marking: Expired / unqualified isolated drugs

Three Exclusive Passage Hard Rule

Separate personnel clean passage / raw material inbound / finished goods outbound / waste residue exclusive channel, strict one-way flow to eliminate cross-contamination of active pharmaceutical ingredients.

Sanitary Mandatory Standard

Full light-shield closed structure, tri-proof explosion-proof LED lighting, regular UV disinfection system, no sanitary dead corners for daily alcohol wiping.

4 Five-Year Tamper-Proof GSP Trace Monitoring Platform

1 Multi-point PT100 sensors laid per 50㎡, temp control ±2℃, RH locked 45–75%; auto record data every 30min per GSP requirement;
2 5-year non-editable encrypted cloud storage, one-click export full audit report for domestic & EU GDP inspection;
3 Four-level linkage alarm: On-site sound-light + SMS + PC backend + mobile APP remote warning for over-temp/humidity/power failure;
4 Full temperature mapping 72h full load test report as handover document.

Mandatory Four-Stage Validation Handover

Complete DQ (Design) / IQ (Installation) / OQ (Operation) / PQ (Performance) full validation files delivered together with project acceptance.

5 Measurable 12-Month Full Operation Benefits

1 Three color solid wall zoning + stable ≤20℃ cool temp pass national drug supervision GSP audit one time without rectification;
2 Double vapor barrier & anti-freeze ground eliminate condensation & frost heave, API damp scrap rate reduced from 8.7% down below 1.1%;
3 Independent N+1 standby unit completely avoid mass antibiotic activity loss during summer equipment breakdown;
4 Frequency conversion rack cut annual refrigeration electricity consumption by 22%;
5 Integrated 22-chamber centralized PLC control improve warehouse turnover efficiency by 38%;
6 Full investment payback cycle: 3.5 years based on API export premium & scrap loss reduction.

8 Large Pharmaceutical Warehouse Supervision Hidden Pitfalls

1 Shared compressor for multiple rooms without independent N+1 → Whole batch API degradation risk
2 Omit double HDPE vapor barrier & floor anti-freeze pipeline → Wall condensation & ground frost heave
3 Cloth curtain instead of solid three-zone partition → Direct GSP audit failure
4 Editable temperature recording system → All trace data invalid for supervision
5 Missing DQ/IQ/OQ/PQ validation documents → Cannot pass annual GMP inspection
6 No dual power + emergency generator → Long power outage causes bulk drug scrapping
7 Single air flow without independent cargo passage → Raw & finished cross-contamination
8 Insufficient temperature sensors → Blind hot spots inside bulk API pallet stacks

Simple Large Pharma Warehouse ROI Calculation Formula

Annual Net Income = API Export Price Premium − Annual Power & Maintenance − Damp Spoilage Loss Reduction
Full Payback Months = Total EPC Investment ÷ Average Monthly Net Profit

FAQ For API Pharmaceutical Factory Infrastructure Managers

Q1 What’s the legal temperature range for pharmaceutical cool storage per GSP?

Cool warehouse must maintain ≤20℃ overall, design setpoint 16℃ with fluctuation limited ±2℃, RH 45–75%.

Q2 Why each of the 22 rooms needs independent standby compressor?

Antibiotic raw powder will degrade permanently above 20℃, single machine failure leads tens of tons economic loss.

Q3 What special ground design for Shandong cold winter?

Double XPS anti-freeze floor with underground heating pipeline to prevent frost heave cracking.

Q4 What validation files must be handed over after project completion?

Complete four-stage DQ/IQ/OQ/PQ cold storage validation & temperature mapping report.

Custom Large Multi-Zone Pharmaceutical Cold Storage Inquiry

Provide API type, total warehouse area and export certification demand to get GMP/GSP compliant zoning layout & itemized quotation.

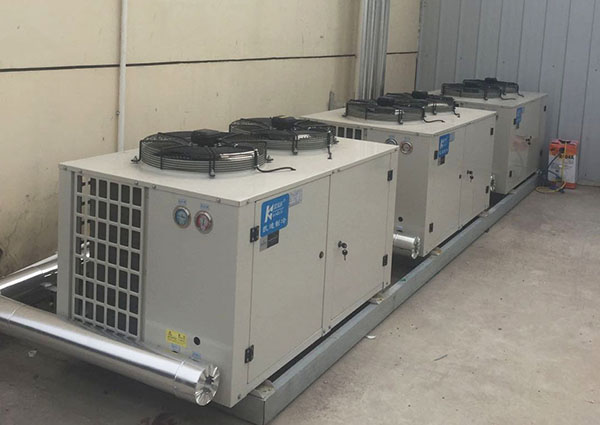

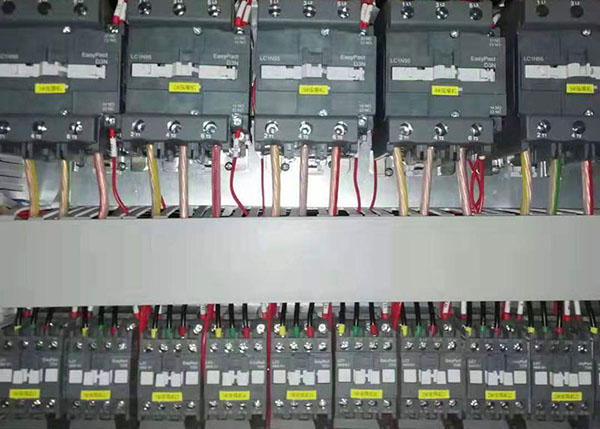

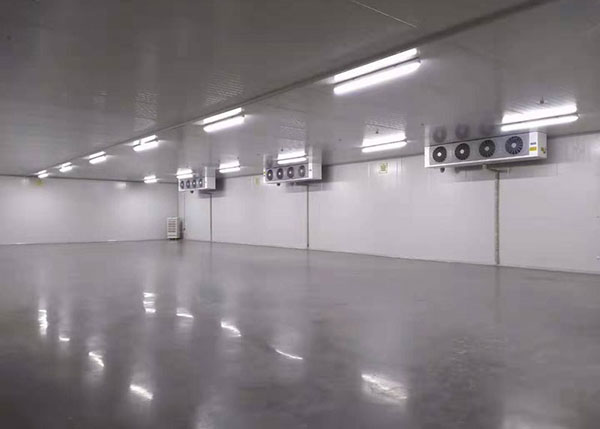

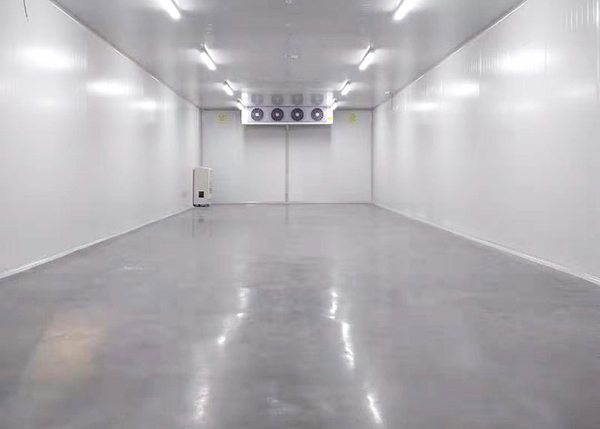

Construction & Completion Photos
