Author GCC Middle East High-Temp Warehouse HVAC Senior Engineer
12 years large distribution center EPC experience for Dubai, Riyadh GCC free trade zones. Familiar with ASHRAE 90.1 / ASHRAE 55, UAE ESMA cooling standard, T3 tropical compressor design code, specialize in ultra-high 17m ceiling thermal stratification elimination & desert salt anti-corrosion chilled water system.
Project Overview
This 35,000 ㎡ single-story e-commerce automated sorting warehouse locates in Dubai Free Trade Zone, net height 17m for high rack automated storage & all-day parcel sorting operation. Local extreme climate: peak ambient 48–50℃, strong solar radiation, high salt air, scarce fresh water resources. Traditional air-cooled units face capacity loss 30%+ & sky-high power bills; client required full year stable 24–28℃ indoor temp, low long-term OPEX complying GCC energy certification.
Core Standard Engineering Data
1 Building dimension: 35,000 ㎡ floor, 17m clear height, total air volume 2.1 million m³/h
2 Design outdoor extreme condition: 50℃ dry bulb + solar radiation temperature rise +15℃, load safety factor 1.3 per GCC standard
3 Target zoning temp: Sorting operation area 24℃ / storage rack area 28℃, RH 40–60 per ASHRAE 55
4 Full construction & system calibration cycle: 40 calendar days
5 Compliance: UAE ESMA energy certificate, ASHRAE 90.1 energy efficiency, Dubai Free Zone MEP inspection
Pre-Construction Client Pain Points
1 Conventional air-cooled screw chillers drop 32% cooling capacity at 48℃ summer, warehouse internal temperature hit 36℃, cosmetic & food parcels deteriorated massively;
2 Annual electricity cost up to $285,000, low EER unit without energy-saving optimization;
3 Metal hard duct heavy weight increases steel structure load, long installation period & high welding labor cost;
4 No central cloud monitoring, on-site manual patrol only, high risk of overheating loss during night shift;
5 Ordinary T2 compressor without anti-salt coating, condenser corroded within 1 year leading frequent breakdown.
1 GCC Extreme Desert Anti-Corrosion Maglev Chilled Water System
Core Unit Specification
Full oil-free maglev centrifugal chillers, refrigerant R134A ODP=0, T3 tropical certified compressor (max operating ambient 55℃), IPLV up to 7.4 under Dubai peak condition, 40–48% annual power saving vs air-cooled units.
Desert Exclusive Upgrades
1 Condenser coil with blue anti-salt epoxy coating to resist coastal salt fog corrosion;
2 Closed loop cooling tower (zero fresh water waste) instead of open evaporative type for Dubai water restriction;
3 N+1 redundant modular layout: 6 main + 1 standby chiller group, auto switch during single unit fault to avoid full warehouse overheating;
4 Independent UPS for whole cooling & monitoring system, maintain 8h basic cooling during power cut.
Maglev vs Traditional Air-Cooled Annual Energy Comparison Table
| Item | Traditional Air-Cooled Screw | This Project Maglev Water Chiller | Annual Saving |
|---|---|---|---|
| Average EER @50℃ | 3.8 | 7.2 | +89% efficiency |
| Yearly Power Consumption | 1.28 million kWh | 0.66 million kWh | 620,000 kWh |
| Annual Electricity Cost | $285,200 | $147,800 | $137,400 |
| Yearly Maintenance Fee | $32,000 (oil change + filter) | $9,500 (oil-free no overhaul) | $22,500 |
2 17m Ultra-High Ceiling Air Distribution Design (Eliminate Thermal Stratification)
Two-tier air circulation solution solving 8–12℃ vertical temperature difference:
1 Top destratification axial fans evenly mix upper hot air down to working height;
2 Suspended fabric air duct full permeable upward supply system
Fabric Duct Advantages For 17m High Rack Warehouse
- Weight only 2% of metal duct, no extra steel structure reinforcement cost;
- 360° micro-permeable air supply, no local hot dead zone between high racks;
- UV-resistant anti-aging textile material customized for Dubai strong sunlight;
- Quick suspension by steel wire rope, cut 50% installation time vs welded metal duct;
- No surface condensation under desert dry climate.
Zoned Air Handling Layout
Independent air handling units separate sorting zone (24℃) and storage rack zone (28℃), adjustable air volume via PLC based on daytime/night shift parcel throughput.
3 Intelligent Central Cloud Monitoring & Energy Optimization Platform
1 Multi-point temp/RH sensors deployed per 800 ㎡, data record every 15min, 5-year cloud storage;
2 Four-level alarm: On-site sound-light + Dubai local SMS + China remote backend + mobile APP push;
3 Time-shift energy strategy: Full pre-cooling during off-peak midnight low electricity price, partial load operation daytime to cut peak demand charge;
4 One-click export monthly energy consumption report for Dubai free zone energy audit.
4 Measurable 12-Month Operation Benefits
1 Stable 24–28℃ zoning temp eliminate parcel deterioration loss, scrap rate down from 9.2% to below 1.1%;
2 Total annual OPEX (power + maintenance) reduced by 48% vs old air-cooled scheme;
3 No annual compressor oil replacement overhaul, cut 70% labor maintenance workload;
4 Pass Dubai Free Zone MEP & ESMA energy certification one time without rectification;
5 Full extra investment payback period: 22 months via energy & spoilage cost saving.
7 Common GCC High-Temp Warehouse HVAC Hidden Pitfalls
1 Use T1/T2 non-tropical compressor → 30% capacity loss & frequent high-pressure trip in summer
2 Open cooling tower without water recycling → Dubai fresh water overspending penalty
3 Ordinary metal duct for 17m high ceiling → extra steel structure reinforcement cost
4 Skip destratification fans → severe upper hot air stratification & uneven working temp
5 No N+1 standby chiller → whole warehouse parcel loss during single unit breakdown
6 Condenser without anti-salt coating → rapid coastal corrosion & short service life
7 Lack time-shift pre-cool logic → high peak electricity demand surcharge
Simple GCC Warehouse HVAC ROI Calculation Formula
Annual Net Saving = Electricity Reduction − Maintenance Cost Cut − Parcel Spoilage Loss Reduction
Full Payback Months = Extra Maglev System Investment ÷ Average Monthly Net Saving
FAQ For Dubai Free Zone E-Commerce Developers
Q1 What compressor grade mandatory for Dubai 50℃ summer?
Must adopt T3 tropical certified maglev centrifugal unit per UAE ESMA standard.
Q2 Why closed cooling tower instead of open type in Dubai?
Dubai implements fresh water consumption restriction, open tower causes huge water waste & government fines.
Q3 How to solve 17m high warehouse hot air stratification?
Install ceiling destratification axial fans + full permeable fabric air duct circulation system.
Q4 Can we monitor the cooling system remotely from China?
Yes, cloud PLC platform supports cross-border real-time data & multi-level fault alarm.
Custom GCC High-Rack Warehouse HVAC Inquiry
Provide warehouse height, peak local temperature & daily sorting throughput to get ESMA compliant chilled water layout & energy budget report.

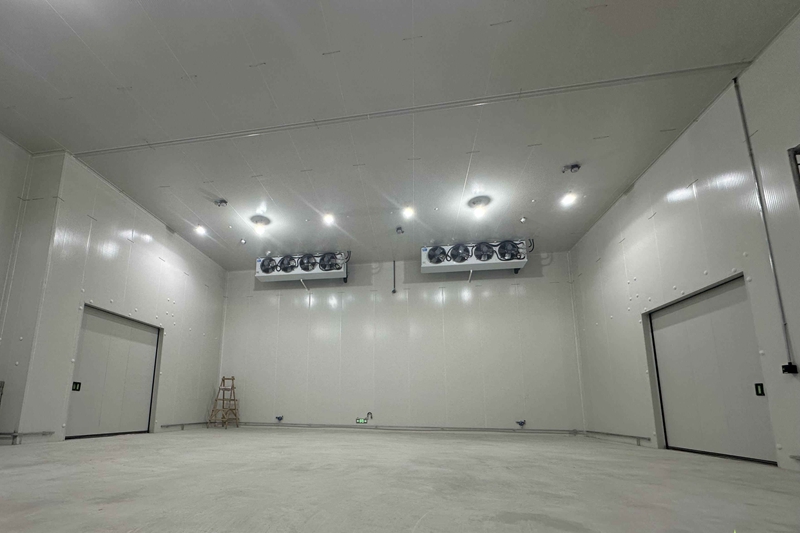

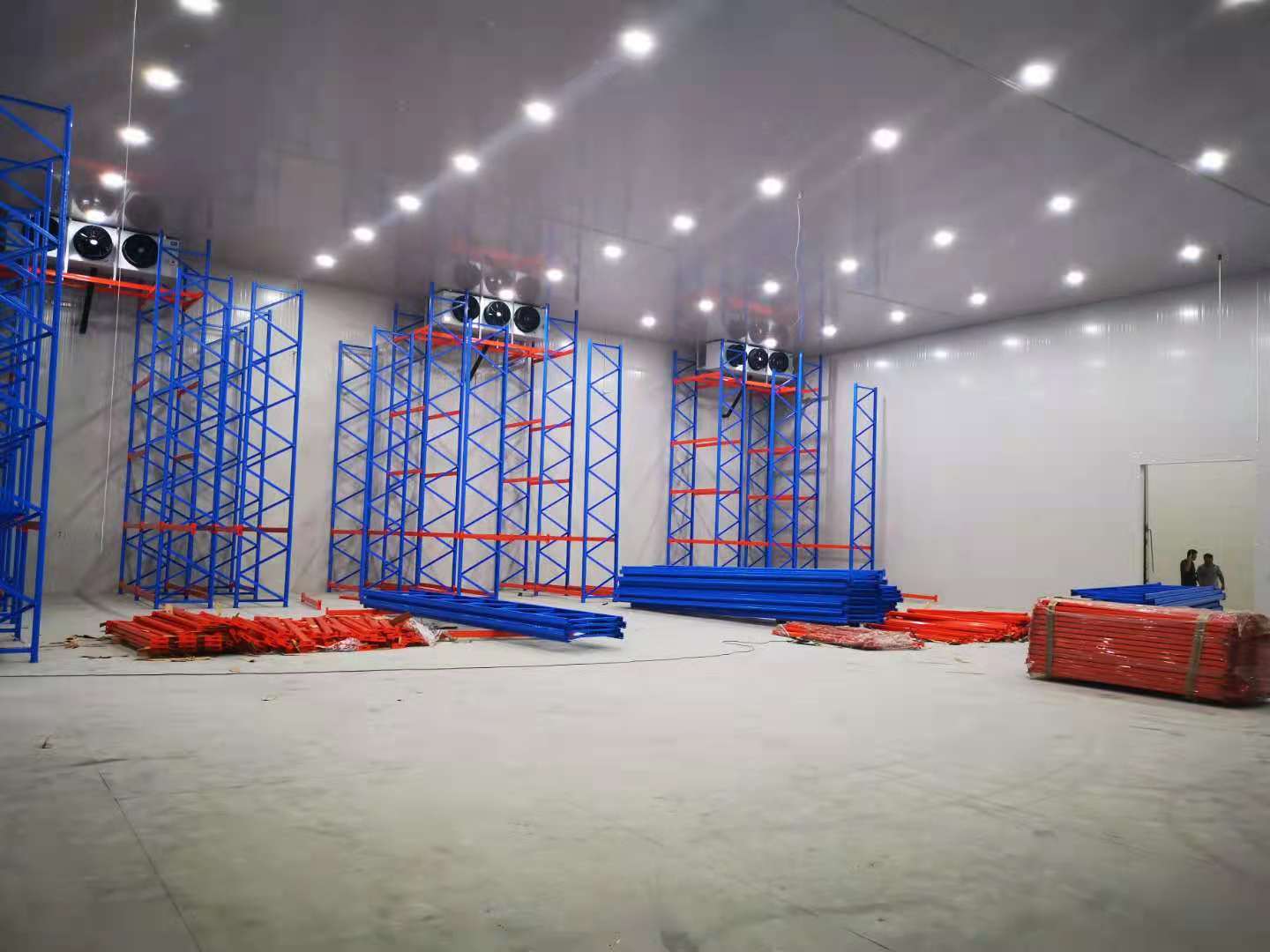

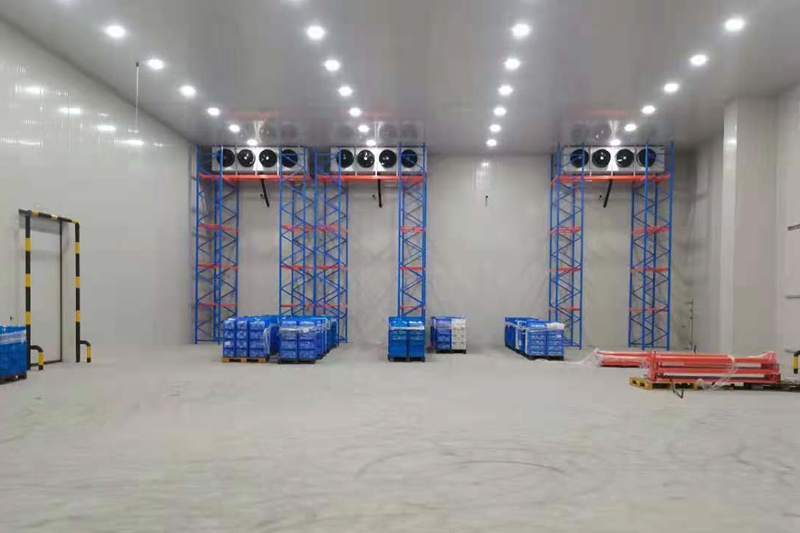

Construction & Completion Photos
