Author: Yangtze River Subtropical GSP Pharmaceutical Cold Chain Senior Engineer
12 years large pharmaceutical cold storage EPC experience for Zhejiang/Jiangsu herbal extract & finished drug manufacturers. Familiar with GB 50072-2021, GSP Appendix Cold Chain, GMP & GB/T40939 pharmaceutical cold storage standard, specialize in high-humidity Yangtze plum rain anti-condensation & full GSP validated cold room design.
Project Overview
Zhejiang Huisong Pharmaceutical is a Sino-Japan joint high-tech enterprise producing Chinese herbal extracts, oral preparations and capsule finished drugs, with export qualification to Japan KFDA market. The custom-built 5,000 m³ two-story shade warehouse is used for medium-term storage of heat-sensitive raw medicinal materials & finished formulations.
Local climate feature: Zhejiang subtropical plum rain zone, annual average RH 78%~88%, long high-humidity period easily cause wall condensation, herbal extract oxidation and mold without full vapor barrier design.
Core Standard Engineering Data
- Total nominal volume: 5,000 m³ | Two-story independent shade zone
- Mandatory GSP storage parameter (corrected from wrong 25℃ design):
Temperature: 10~20℃ (permanent ≤20℃), Relative Humidity: 35~75%, Temp fluctuation ≤±0.5℃ - Standard usable capacity GB calculation:
Volume utilization coefficient η=0.5, boxed herbal extract density ρ=0.3 t/m³
Total storage ton = 5000 × 0.5 × 0.3 = 750 tons - Full construction & 72h full-load validation cycle: 45 calendar days
- Compliance certification: National GSP drug supervision, Japan KFDA export, full DQ/IQ/OQ/PQ validation files
Pre-Construction Core Operational & Compliance Pain Points
- Old scattered storage rooms without physical isolation zone, frequent temperature over 23℃, 2 consecutive drug supervision rectification notices;
- Single-layer insulation without full HDPE vapor barrier, plum rain wall continuous condensation, herbal extract mold scrap rate up to 10.5%;
- Single refrigeration unit without standby, summer high ambient overload shutdown leads whole batch drug oxidation loss;
- Manual discontinuous temperature record, data editable, cannot pass annual GSP spot check;
- Ordinary flat wall without seamless arc structure, difficult to sanitize, residual extract causes cross-contamination risk.
1 Zhejiang Plum Rain Exclusive Anti-Condensation Envelope System
Comply with GB51440 high-humidity warehouse full vapor barrier mandatory clause:
| Zone Type | PU Insulation Spec | GSP & Humidity Optimization |
|---|---|---|
| 10~20℃ Shade Zone | 120mm B1 low-smoke zero-halogen PUR (λ≤0.022 W/m·K) | Double-layer HDPE full warm-side vapor barrier on wall & ceiling; all panel joints filled mildew-proof low-temperature sealant; 50mm seamless inner arc wall for daily high-temperature disinfection, 304 stainless anti-corruption inner plate |
Core construction rule: All ceiling suspension brackets & pipeline holes fitted nylon cold-bridge insulation gaskets; each loading vestibule equipped heating air curtain to block hot humid outdoor air inflow.
2 N+1 Redundant Refrigeration & Dual Power Safety System
Two-Story Independent Shade Zone Configuration
4 sets Bitzer parallel screw units, 2 groups of 1-main-1-standby auto-switch system for upper/lower floor respectively; low-speed anti-dehydration evaporator with PLC interlocked rotary dehumidifier to lock RH 35~75%.
Mandatory Power Backup (GSP Hard Requirement)
Dual municipal independent power supply + emergency diesel generator + dedicated 72h UPS for monitoring system; keep full temperature tracking during long-time power outage.
Defrost Design
Hot gas circulation defrost only, no electric heating strip to avoid local temperature surge damaging herbal extracts.
3 GSP & KFDA Mandatory Functional Zoning Layout
Strict three physical separated zones + one-way people & goods flow (cloth curtain separation is forbidden):
1. Pending inspection zone (yellow marking)
2. Qualified finished drug & herbal extract storage zone (green marking)
3. Unqualified / expired drug isolation zone (red marking)
Sanitation Hard Standard
All wall & floor seamless arc transition, anti-slip drainage concrete with 1% slope, no dead angle for drug residue cleaning; full light-shield ceiling to prevent herbal extract photooxidation.
4 Full GSP Validated Intelligent Monitoring Platform
- Multi-point PT100 high-precision sensors, data auto record every 30min, temp error ≤±0.5℃;
- 5-year non-editable encrypted cloud data storage, one-click export full audit report for domestic & Japanese KFDA inspection;
- Multi-level linkage alarm: On-site sound-light + mobile SMS + PC background remote warning for RH/temp over-limit;
- Complete DQ (Design)/IQ (Installation)/OQ (Operation)/PQ (Performance) four-stage validation report delivered handover.
5 Measurable 12-Month Operation Benefits
- Independent isolation zone + stable ≤20℃ temp pass domestic & Japan KFDA audit at one time without rectification;
- Double full vapor barrier eliminate wall condensation, herbal extract mold scrap rate reduced from 10.5% down below 1.2%;
- N+1 standby unit completely avoid mass drug loss caused by summer equipment breakdown;
- Constant low-humidity system slow down extract oxidation, extend shelf life by 4 months;
- Inverter parallel rack cut annual refrigeration electricity consumption by 23%.
6 6 Common Zhejiang Pharmaceutical Cold Storage Supervision Pitfalls
- Long-term storage temp exceed 20℃ → Serious defect item, forced warehouse shutdown rectification
- Omit double HDPE vapor barrier for plum rain → Wall condensation & herbal mold contamination
- No standby compressor for large 5000m³ warehouse → Whole batch drug oxidation loss risk
- Editable temperature recording system → All trace data invalid for drug supervision
- Only cloth partition instead of solid wall → Direct GSP audit failure
- No full DQ/IQ/OQ/PQ validation files → Cannot pass export KFDA inspection
FAQ For Pharmaceutical Factory Infrastructure Managers
Q1 What’s the mandatory maximum temperature for GSP shade warehouse?
Strictly ≤20℃ per national GSP standard; fixed 25℃ design violates drug storage regulation.
Q2 Why pharmaceutical cold room needs standby compressor & dual power?
Over-temperature causes irreversible oxidation loss of herbal extracts, leading huge economic loss & audit risk.
Q3 What special moisture-proof design for Zhejiang plum rain pharmaceutical warehouse?
Full double HDPE vapor barrier on all wall & ceiling, heating air curtain for each cold door.
Q4 What validation documents need to be delivered after project completion?
Complete DQ/IQ/OQ/PQ four-stage full cold storage verification report.
Custom GSP Pharmaceutical Cold Storage Inquiry
Main stored drug type, local maximum summer humidity and export certification demand to get GSP compliant multi-zone layout drawing & itemized quotation.

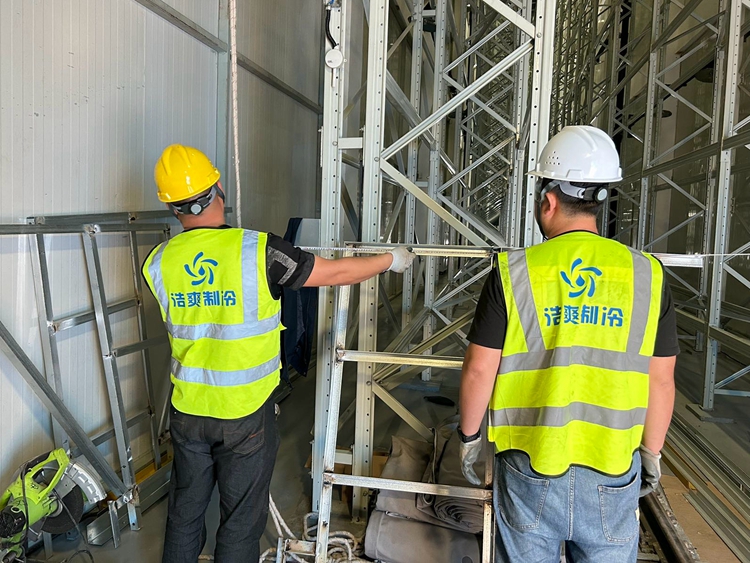

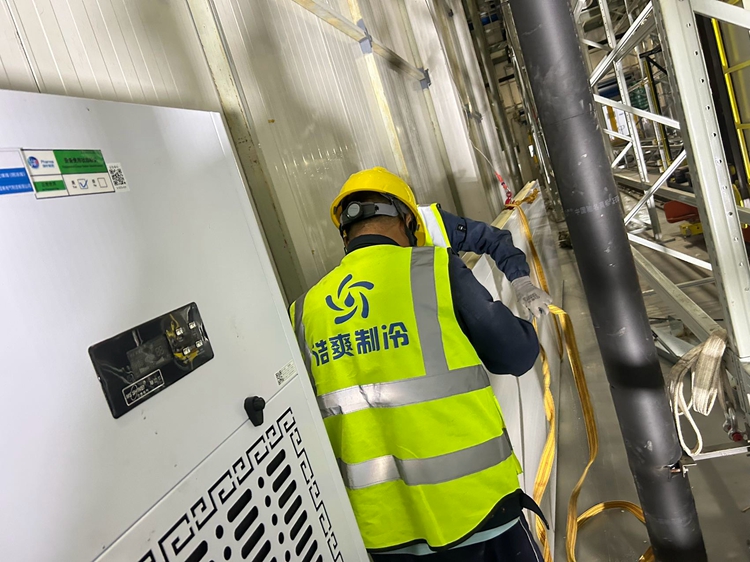

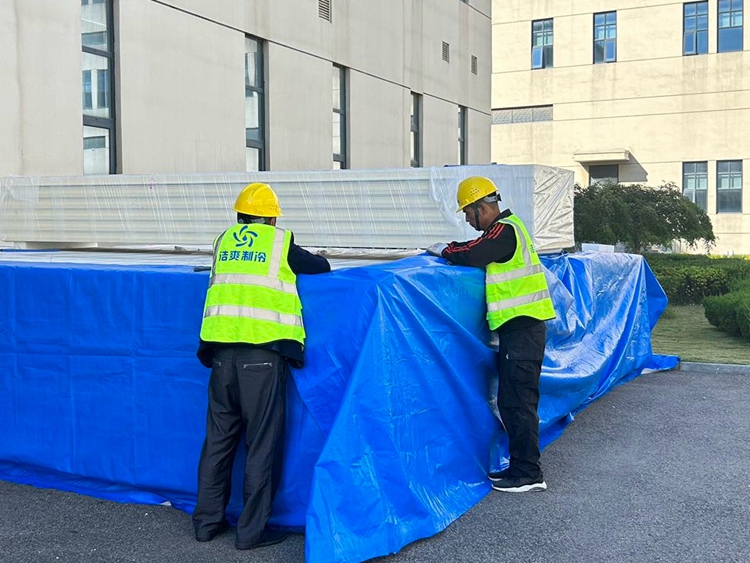

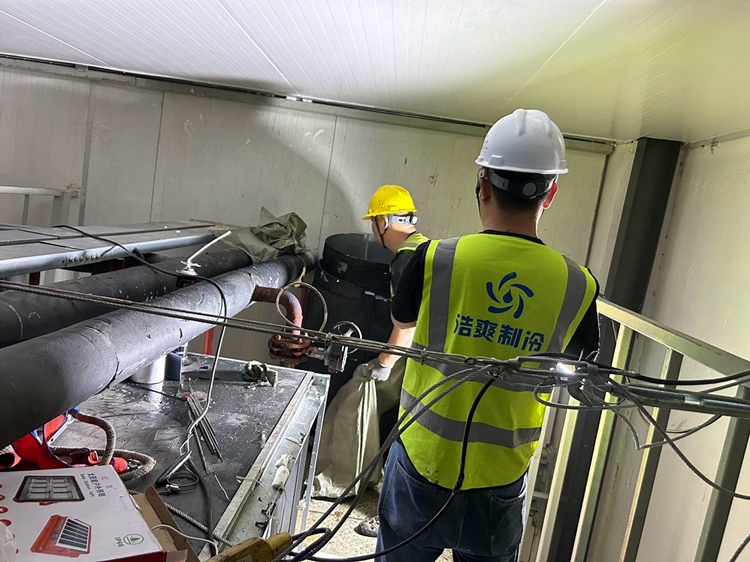

Construction & Completion Photos
