Author: Senior Tropical Blast Freezer Engineer
12 years EPC experience for seafood, meat & ready-meal blast freezer projects in Southeast Asia, Middle East & Africa. Familiar with GB 50072-2021 cold storage standard, BRCGS / HACCP export food critical control point specifications, specialize in 40–45℃ high ambient tropical customized low-temperature design.
-35°C blast freezer is a mandatory CCP facility for EU/GCC exported seafood, meat and pre-cooked food. Ordinary -18℃ frozen room cannot rapidly pull core temperature below -18℃ within 4–6 hours, leading massive histamine and bacterial overgrowth failing export audit.
Many overseas investors only compare cost per square meter without distinguishing double-stage unit, 200mm B1 panel and tropical oversized condenser, resulting long-term high power or batch goods scrap.
1 GB 50072 Standard Storage Capacity Calculation
Official Calculation Formula
G (ton) = Total Internal Volume V × Volume Utilization Coefficient η × Frozen Cargo Density ρ
Standard Fixed Parameters for Blast Freezer
- Volume Utilization Coefficient η (500–1000 m³ blast room): 0.40
- Palletized frozen meat/seafood density ρ: 0.45 t/m³
- Single pallet air circulation gap reserved 300mm minimum
Standard Capacity Table (Net Height 5m)
| Floor Area | Total Volume (m³) | Theoretical Storage Tonnage |
|---|---|---|
| 100 ㎡ | 500 | 500 × 0.4 × 0.45 = 90 tons |
| 200 ㎡ | 1000 | 1000 × 0.4 × 0.45 = 180 tons |
| 500+ ㎡ | 2500+ | 2500 × 0.4 × 0.45 = 450 tons |
Critical Note
Original rough 4–4.5m³ per ton is approximate empirical value; GB standardized formula must be used for factory layout and budget audit.
2 Full Turnkey Price Table (USD, Tropical Standard Configuration)
Benchmark: 200mm B1 40kg/m³ PU panel, Bitzer two-stage screw unit, standard condenser, basic PLC monitoring (Excluding civil & power transformation)
| Floor Area | Total Investment Range | Unit Cost per ㎡ | Standard Matching |
|---|---|---|---|
| 100 ㎡ | 48,000 – 62,000 | 480 – 620 | Small meat processing plant |
| 200 ㎡ | 90,000 – 120,000 | 450 – 600 | Medium seafood export factory |
| 500+ ㎡ | 210,000 – 290,000 | 420 – 580 | Large central processing factory |
Extra Cost Premium Rules
- Ambient >42℃ tropical area (UAE/Saudi): Oversized condenser + double vapor barrier, +10–18% total cost
- Import full Bitzer parallel rack vs domestic unit: +28–35% budget
- B1 upgraded anti-corrosion stainless inner panel: +12–16%
- Independent standby refrigeration loop for export high-value goods: +15–22%
- HACCP tamper-proof 5-year temperature data logger: +3,000–6,000 USD extra
3 Four Core Cost Fixed Proportion (Blast Freezer Exclusive)
- 200mm B1 Insulation Enclosure (30–38%): Wall, roof, XPS anti-freeze floor, cold doors, full cold-bridge sealing
- Two-Stage Refrigeration System (38–48%): Double-stage compressor, low-temp evaporator, tropical condenser, hot gas defrost pipeline (largest price gap)
- HACCP Intelligent Control (10–14%): PLC touch screen, multi-point core temp sensor, SMS multi-level alarm
- Installation & Commissioning Labor (12–18%): Copper pipe welding, anti-freeze ground construction, 72h full-load temperature test
4 Mandatory -35°C Blast Freezer Technical Standard (GB 50072)
Envelope Requirement
- Wall/ceiling: Min 200mm B1 flame retardant PU, density ≥40kg/m³, λ ≤0.020 W/(m·K)

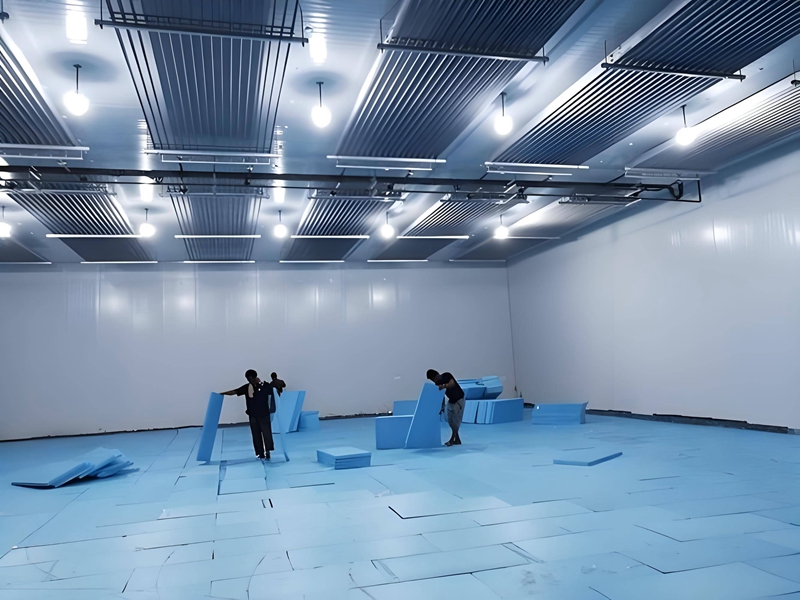

- Floor: Double staggered XPS board, total thermal resistance ≥4.77 m²·℃/W anti-frost heave layer
- All joints low-temperature mildew-proof sealant to eliminate cold bridge
Refrigeration Hard Rule
- Ambient above 35℃ must adopt two-stage compound screw unit; single scroll compressor cannot stabilize -35℃ core temp
- Hot gas circulation defrost only, electric heating strip forbidden to avoid fire risk for food factory
- Air cooler low-speed design to prevent seafood surface dehydration
5 Real Indonesia Surabaya Seafood Blast Freezer Project Case
Basic Info
- Scale: 180㎡ / 828m³ blast room
- Target: Freeze 100 tons shrimp to core -18℃ within 4 hours for EU export
- Full turnkey investment: $103,000
- Local climate: Year-round max ambient 39℃ tropical humidity
Measurable Operation Benefits
- Meet BRCGS HACCP CCP audit standard, pass EU customs inspection without detention
- Small ice crystal formation cut shrimp meat breakage scrap rate by 40%
- 3 Two-stage inverter unit reduce daily power consumption by 27% vs single-stage scheme
- 4 Full investment payback cycle: 21 months via export premium & scrap loss reduction
6 7 Common Blast Freezer Procurement Hidden Pitfalls
- Replace 200mm B1 panel with 150mm ordinary board → Unit overload, cannot reach -35℃ in summer
- Adopt single-stage compressor for tropical factory → Core temp stuck above -12℃, export goods rejected
- Omit double-layer vapor barrier for hot humid regions → Wall continuous condensation, panel foam failure
- No independent standby unit → Full batch high-value seafood loss during equipment breakdown
- Quote exclude refrigerant & on-site welding labor → Extra hidden charges after signing
- Ordinary floor without 4.77 anti-freeze layer → Ground frost heave crack within one year
- Editable temperature recorder → HACCP export audit data invalid
7 Simple ROI Calculation Formula For Export Factories
Annual Net Benefit = Export Price Premium − Annual Electricity − Scrap Loss Reduction
Full Payback Months = Total Turnkey Investment ÷ Average Monthly Net Income
Industry Reference: Tropical seafood blast freezer average payback 18–26 months.
FAQ For Overseas Food Processing Investors
Q1 Why single compressor cannot reach stable -35°C in tropical countries?
A Single scroll unit compression ratio insufficient under 40℃ high ambient; GB50072 standard requires two-stage compound system for blast freezer below -30℃.
Q2 What’s the standard thickness for -35 blast freezer panels?
Min 200mm B1 flame retardant PU with density ≥40kg/m³; thinner panel causes continuous overload and sky-high power cost.
Q3 How to calculate accurate blast freezer storage tonnage?
Follow GB formula: Total volume × 0.4 utilization coefficient × 0.45 frozen cargo density, rough 4–4.5m³/ton only for quick estimate.
Q4 What extra cost for Middle East high temperature blast freezer?
Need oversized tropical condenser + full double vapor barrier, total cost increases 10–18%.
Custom Blast Freezer Inquiry
Provide factory area, daily frozen tonnage and local maximum ambient temperature to get itemized quotation & HACCP compliance layout drawing.
