600㎡ (1,852m³) IVD Diagnostic Reagent Cold Storage EPC Case | Sansure Biotech Changsha (GSP & GMP Full Qualified)

Project Overview

This full six-chamber multi-temperature cold storage is custom-built for Sansure Biotech, a leading Changsha-based IVD molecular diagnostic reagent manufacturer for clinical testing kits, calibrators and biological raw materials.

Changsha belongs to subtropical humid climate, plum rain season ambient RH often exceeds 85%; high dew point easily causes reagent box mildew, label peeling and enzyme activity attenuation. The whole project adopts full double vapor barrier + independent rotary dehumidifier exclusive design, fully pass domestic GSP and enterprise internal GMP audit.

Core Basic Project Data

• Total floor area: 600 ㎡ | Total effective volume: 1,852 m³
• Six independent physically isolated cold chambers (four separated storage zones for audit compliance):
  1. Two 2–8°C Finished Diagnostic Reagent Chambers
  2. Two -15~-20°C Biological Raw Material Freezer Chambers
  3. One 2–8°C Receiving & Inspection Buffer Room
  4. One 0–15°C Packaging Preparation Room
• Mandatory storage humidity range for IVD products: RH 45%–75%, full warehouse temp fluctuation ≤±0.3℃
• Standard effective storage capacity: 180 tons boxed diagnostic kits & biological raw materials
• Full construction & commission cycle: 60 calendar days
• Compliance certification: National GSP storage specification, enterprise GMP production validation, one-time market supervision inspection acceptance

Pre-Construction Core Compliance & Operational Pain Points

1. Original scattered small cold rooms without four-zone physical separation (pending / qualified / unqualified / returned), failed two previous drug supervision spot checks;
2. No professional dehumidification system for Changsha plum rain, annual reagent packaging mildew scrap rate up to 8.1%;
3. Single shared refrigeration unit without independent standby per chamber, equipment shutdown risk leads full batch kit inactivation;
4. Old monitoring system editable temperature records, unable to pass annual GMP QA audit traceability review;
5. Thin single-layer insulation without full vapor barrier, wall continuous condensation increases long-term electricity cost.

1 High-Humidity Anti-Condensation Envelope System (Changsha Plum Rain Exclusive)

Comply with GB 50072 vapor barrier clause for high RH southern areas:

Structural Component	Standard Configuration & Anti-Moist Optimization	GSP Hygiene Requirement

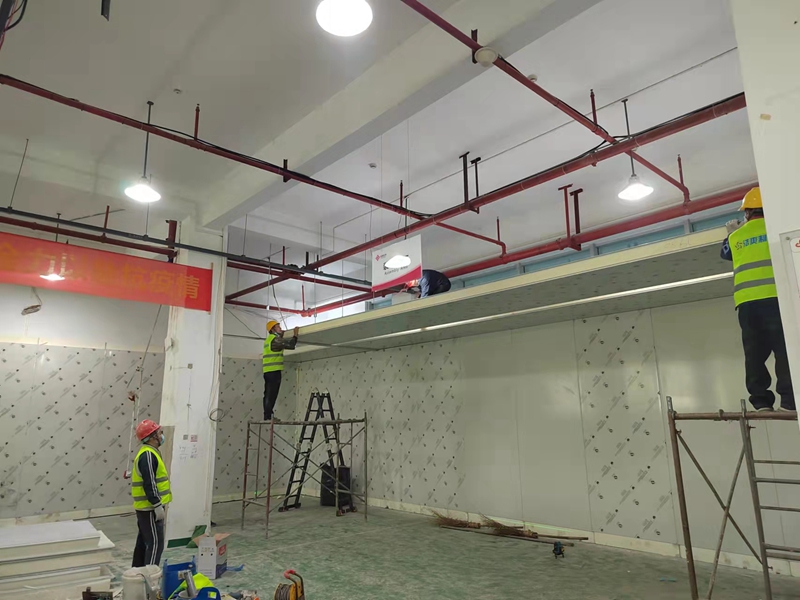

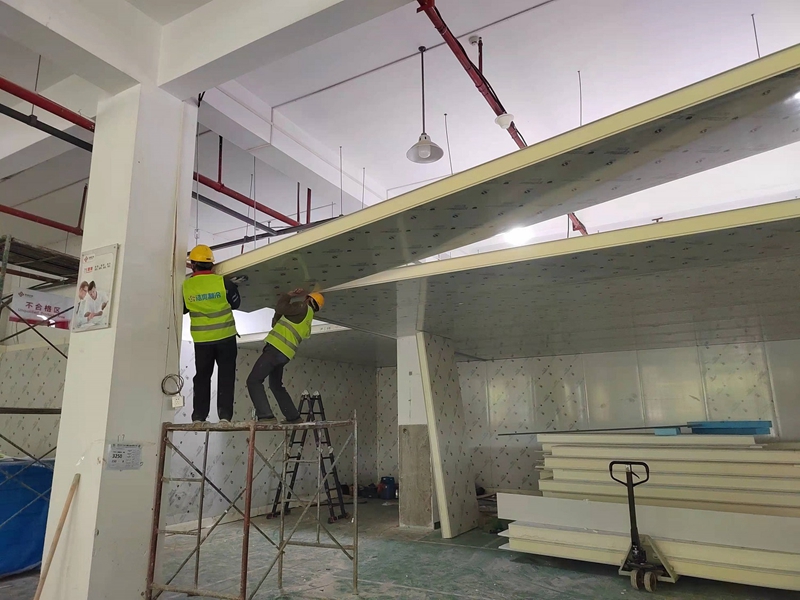

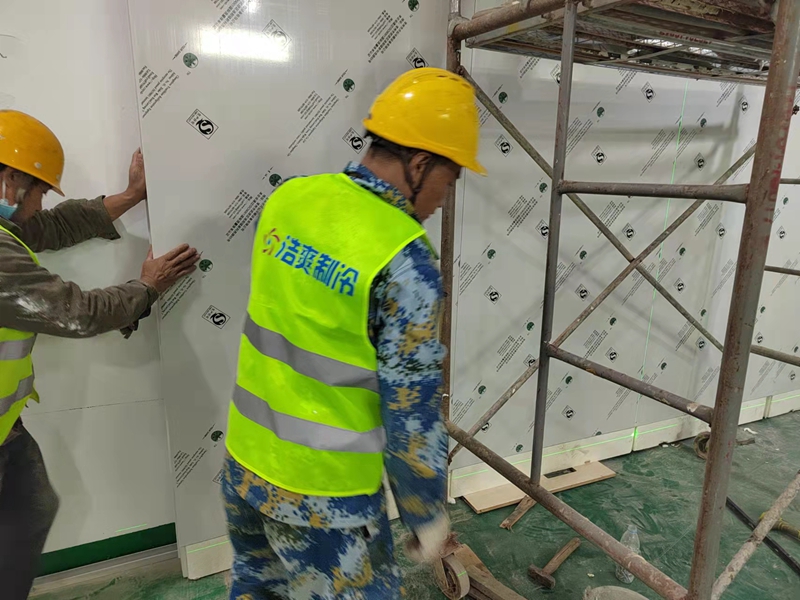

Wall & Ceiling PU Panel	150mm B1 flame retardant PUR, density ≥40kg/m³, double-layer HDPE full warm-side vapor barrier	50mm inner arc seamless corners for daily disinfection, no mold dead angles

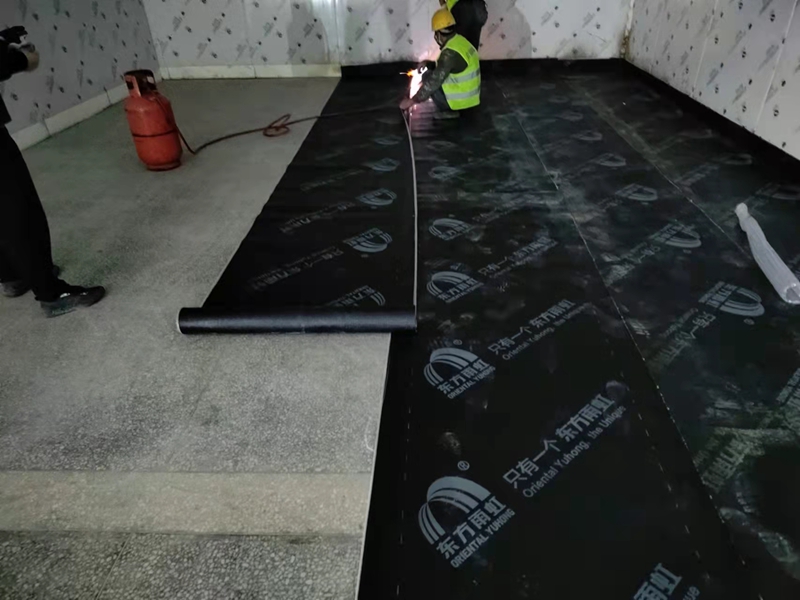

Floor Insulation	150mm staggered XPS anti-freeze board, integral waterproof base + anti-slip epoxy layer	Floor slope drainage, avoid accumulated disinfection water
Cold Door & Air Curtain	Stainless thermal break sliding door with embedded anti-condensation heating strip, full air curtain with interlock	Prevent hot humid air inflow during loading/unloading
All Joint Treatment	Closed-cell low-temperature mildew-proof sealant for panel seams & pipeline penetration holes	Eliminate cold bridge & moisture infiltration gaps

Core optimization: All metal suspension brackets fitted nylon insulation gaskets to stop ceiling sweating.

2 Independent Redundant Refrigeration System (Per Chamber One-Main-One-Standby)

Each cold chamber equipped separate Emerson/Bitzer scroll compressor loop, forbidden shared cooling circuit between reagent batches (GMP mandatory):
1. Unit matching: Independent duty + standby scroll unit for every temperature chamber, automatic switch within 10s upon main machine fault;
2. Evaporator: Low-speed EBM fan air coolers to avoid reagent package surface dehydration;
3. Defrost mode: Hot gas circulating defrost only, no electric heating ignition source for biotech safety;
4. Power guarantee: Dual municipal power + long-duration UPS, sustain 72h continuous temperature data recording during blackout.

3 Independent Rotary Dehumidification System For IVD Reagents

Dedicated industrial dehumidifier interlocked with PLC control platform, solve Changsha high humidity hidden danger:
1. Constant RH locked 45–75% full warehouse; auto start when ambient humidity exceeds threshold;
2. Pre-dehumidify air entering buffer hall before goods transfer;
3. Eliminate kit mildew, label falling and biological reagent activity loss caused by plum rain moisture.

4 GSP/GMP Tamper-Proof Intelligent Monitoring Platform

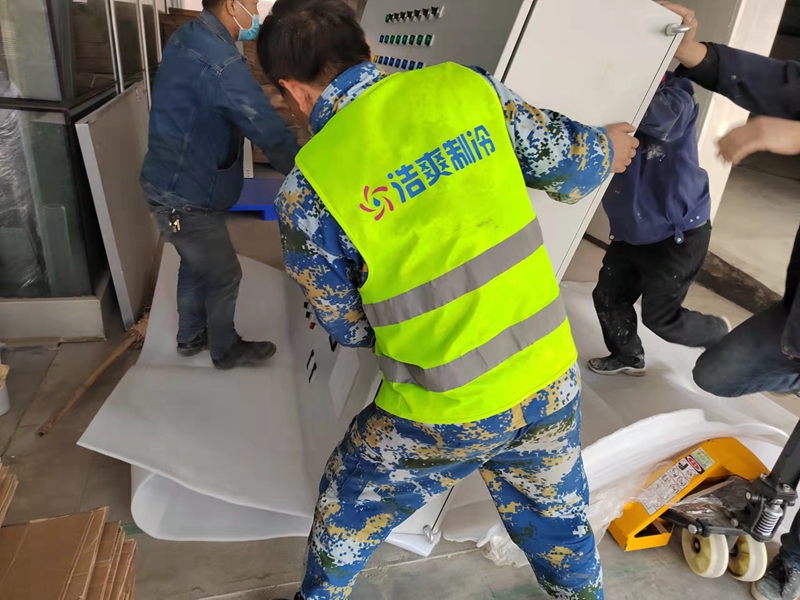

Hardware: Siemens PLC + 10-inch HMI touch screen, full Schneider intrinsically safe electrical parts
Mandatory audit core functions:
1. High-precision sensors (accuracy ±0.2℃), 1 probe per 50㎡ as GSP rule, data auto-saved 5+ years non-editable;
2. Three-tier authority management: Warehouse operator / equipment engineer / QA auditor, all operation traces permanently stored;
3. Multi-level linkage alarm: On-site sound-light + SMS + remote APP real-time push;
4 One-click full temperature mapping report export for DQ/IQ/OQ/PQ validation;
5 Door opening signal linkage record for traceability of inbound & outbound batches.

5 GMP Four-Zone Independent Partition Layout (Audit Mandatory)

Six chambers divided into four functional isolated areas to avoid cross-contamination of diagnostic products:
1. Qualified Finished Reagent Storage Zone (2–8°C dual rooms)
2. Unprocessed Biological Raw Material Freezing Zone (-15~-20°C dual rooms)
3. Receiving & Pending Inspection Buffer Room
4. Packaging Preparation Constant Temp Room
Separate dedicated inbound/outbound passages, one-way people & goods flow without crossing.

6 Full Four-Stage Validation Documents Handover (DQ / IQ / OQ / PQ)

Complete validation report package delivered after commissioning for annual supervision audit:
1. DQ Design Qualification: High-humidity anti-condensation scheme & six-chamber zoning design review records
2. IQ Installation Qualification: All equipment certificates, insulation air tightness & sensor calibration test data
3. OQ Operation Qualification: 72h full-load temperature uniformity & standby power failure simulation test
4. PQ Performance Qualification: 30-day continuous stable operation monitoring report
Supporting attachments: B1 fire panel test report, anti-static ground detection record, dehumidifier operation log.

7 Measurable Post-Operation 12-Month Stable Benefits

1. Pass market supervision GSP inspection and enterprise internal GMP audit at one time without rectification;
2. Plum rain reagent mildew scrap rate reduced from 8.1% down to below 0.7%;
3. Independent standby unit + full insulation energy-saving design cut annual refrigeration power consumption by 20%;
4. Non-editable temperature log fully meet IVD batch traceability requirements, QA audit labor cost reduced 60%;
5. Four independent zones eliminate cross-contamination risk of clinical diagnostic kits.

8 6 Common IVD Reagent Cold Storage Supervision Pitfalls

1. Shared refrigeration loop between different reagent batches → Direct GSP inspection failure
2. Omit independent dehumidifier for Hunan high humidity area → Mass kit mildew loss in rainy season
3. Editable temperature recording system → All audit data invalid
4. No four-zone physical separation (pending/qualified/unqualified) → Mandatory rectification
5. Single compressor without standby per chamber → Risk of full batch reagent inactivation
6. Single-layer vapor barrier on wall & ceiling → Continuous wall condensation year-round

FAQ For Biotech QA & Infrastructure Managers

Q1 What’s the biggest design difficulty for Changsha IVD cold storage?

Changsha plum rain long-term high ambient RH requires full double vapor barrier + independent dehumidifier to keep 45–75% internal humidity and prevent diagnostic kit mildew.

Q2 Why each reagent chamber must have separate standby compressor?

GMP forbids shared cooling circuits for different batch diagnostic kits; single room equipment fault cannot affect all stored biological products.

Q3 What humidity range is mandatory for molecular diagnostic reagents?

Stable RH 45%–75% to avoid label peeling, box mildew and attenuation of biological enzyme activity.

Q4 What validation files need to be reserved for annual drug supervision audit?

Complete DQ/IQ/OQ/PQ four-stage qualification reports, 5-year non-editable temperature logs and all sensor calibration certificates.

Custom IVD & Biotech Cold Storage Inquiry

If you plan to build GSP/GMP compliant diagnostic reagent warehouse in Hunan/Jiangxi high-humidity areas, provide warehouse area and kit storage volume to get free anti-condensation layout drawing & full validation document list.

Construction & Completion Photos
