4,685m³ Pre-Cut Fruit & Vegetable Central Kitchen Cold Storage EPC Case | Shanghai Wochu Fresh E-Commerce

Project Overview

This full-turnkey multi-temperature cold storage serves as the core central kitchen warehouse for Wochu Fresh, a Shanghai one-stop pre-cut fruit & vegetable e-commerce platform with daily thousands of fresh ingredient orders.

Shanghai features year-round high ambient humidity (average RH 76%) and long plum rain season; cut fruits/vegetables lose epidermal protection and are prone to browning, mold and microbial overgrowth without precise constant humidity & zoning control. The whole project strictly complies with HACCP food safety CCP control points and national food production standards.

Core Basic Project Data

• Total effective volume: 4,685 m³
• Independent physically isolated chambers (GB14881 four functional zones mandatory):
  1. Raw Material Storage Zone (0–4℃): Unprocessed leafy greens, root vegetables
  2. Quasi-Clean Pre-Cut Buffer Zone (8–10℃): Cold-sensitive eggplant, melon produce
  3. Clean Finished Product Zone (0–5℃): Packaged ready-to-eat cut fruits/vegetables
  4. -18~-25 Frozen Raw Material Storage Zone
  5. -35℃ Blast Freezing Workshop
  6. Unqualified Goods Isolation Room
• Standard full-load daily turnover capacity: 60 tons pre-cut fresh ingredients
• Full construction & commission cycle: 95 calendar days
• Compliance certification: GB 50072, GB14881, NY/T4706, HACCP food safety audit

Pre-Construction Core Operational & Quality Pain Points

1. Old scattered small cold rooms without classified physical zoning, mixed raw/finished goods triggered repeated food supervision mold inspection rectifications;
2. Ordinary single-layer insulation without full vapor barrier, plum rain wall condensation leads 9.8% monthly pre-cut product scrap rate;
3. No independent standby refrigeration unit, summer high load shutdown causes full batch cut vegetable browning loss;
4. Discrete editable temperature records, unable to provide non-tamper traceability for market supervision spot check;
5. Lack dedicated pre-cooling area, freshly cut goods stay at room temperature for long time, shorten shelf life by 40%.

1 High-Humidity Food-Grade Envelope System (Shanghai Plum Rain Exclusive)

Comply with GB 50072 vapor barrier clause & blast freezer thickness mandatory standard:

Zone Type	PU Panel Standard	Humidity & Sanitation Optimization
0~10℃ Fresh Storage	100mm B1 flame retardant PUR, double HDPE full warm-side vapor barrier	50mm seamless inner arc corners for daily disinfection, no mold dead angles
-18℃ Frozen Room	150mm B1 high-density PUR, double-sided anti-corrosion steel	XPS staggered anti-freeze floor insulation, drainage slope design
-35℃ Blast Freezer	200mm B1 thick PUR (GB50072 mandatory minimum)	Heavy load anti-crack concrete ground, full cold bridge sealing

Core anti-condensation design: All ceiling suspension bolts fitted nylon insulation gaskets; every cold door equipped heating air curtain with double interlock door vestibule to block hot humid air inflow.

2 Tiered Refrigeration Matching System (By Temperature Zone)

Blast Freezing Room (-35℃)

Dual-stage Bitzer semi-hermetic compound screw unit (single compressor cannot reach stable -35℃), low-temperature anti-frost air coolers, hot gas defrost only without electric heating ignition source.

Medium & Low Temp Fresh Zones (0–10℃)

Emerson Copeland scroll parallel racks, each independent chamber configured 1-main-1-standby redundant set, automatic switch within 10s upon fault.

Power Safety Standard

Dual municipal power supply + long-duration UPS to sustain 72h continuous temperature recording during blackout, avoid pre-cut ingredient inactivation.

3 HACCP Compliant Constant Humidity & Intelligent Monitoring Platform

Shanghai high-humidity exclusive matching: Industrial rotary dehumidifier interlocked with PLC, lock warehouse RH 70–85 to inhibit mold growth on cut fruits.
Core audit functions:
1. High-precision multi-point sensors, temp fluctuation controlled ≤±0.5℃, 5-year non-editable data storage;
2. Three-tier operator authority, all inbound/outbound batch records permanently stored;
3. Multi-level sound-light + SMS remote alarm for over-limit temperature/humidity;
4. One-click full temperature mapping report export for food supervision inspection.

4 GB14881 Mandatory Four-Zone One-Way Logistics Layout

Strict separation of raw materials, semi-finished products, finished goods and defective items, one-way people & goods flow without cross-contamination:
1 Raw receiving → pre-cool buffer → quasi-clean cutting area → clean finished storage → outbound loading
2 Independent isolation room for moldy / expired unqualified produce, separate outbound passage to avoid cross-pollution.

5 Full Project Construction Schedule

Construction Stage	Cycle	Core Work
Design & customized quotation	8 days	Multi-temperature zoning drawing & equipment matching
PU panel & unit production	20–25 days	B1 fire insulation, Bitzer/Copeland unit manufacturing
On-site enclosure & piping installation	50–60 days	Floor anti-freeze, cold bridge sealing, electrical wiring
Full load temperature testing & commissioning	10–15 days	72h continuous stability test, HACCP parameter calibration
Total full cycle	90–100 days	Design to official handover

6 Measurable Post-Operation 12-Month Benefits

1. Four independent physical zones fully pass food supervision HACCP audit without rectification;
2. Full vapor barrier + dehumidifier eliminate wall condensation, pre-cut vegetable scrap rate reduced from 9.8% down to below 1.2%;
3. Per-chamber standby unit completely avoid peak-hour equipment breakdown mass loss;
4. Standardized pre-cooling process extend cut fruit shelf life by 3–5 days for e-commerce long-distance distribution;
5. Inverter parallel rack energy-saving design cut annual refrigeration electricity cost by 16%.

7 6 Common Pre-Cut Vegetable Cold Storage Inspection Pitfalls

1. Blast freezer only equipped 150mm thin panels (violate GB50072 ≥200mm rule) → continuous overload, cannot reach -35℃ target temp
2. No independent isolation room for defective fruits → direct food supervision rectification
3. Omit rotary dehumidifier for Shanghai high humidity → massive mold growth on cut produce
4. Shared refrigeration loop for raw & finished goods → cross-contamination hidden danger
5. Editable temperature recording system → all traceability data invalid for audit
6. No air curtain interlock door vestibule → frequent temperature fluctuation accelerate browning

FAQ For E-Commerce Central Kitchen Infrastructure Managers

Q1 Why -35 blast freezer needs minimum 200mm PU panels?

Per GB 50072 standard, large temperature difference between indoor -35℃ and Shanghai 36℃ summer ambient requires 200mm thick insulation to prevent unit long-term overload and energy surge.

Q2 What’s the key temperature difference between leaf greens & melon pre-cut vegetables?

Leafy vegetables store at 0–4℃; cold-sensitive cucumber/tomato cut goods must stay 8–10℃, storage below 7℃ triggers irreversible cold spots & browning.

Q3 What humidity control standard for Shanghai pre-cut cold storage?

Maintain stable RH 70–85% with dedicated rotary dehumidifier to restrain mold breeding in plum rain high-humidity season.

Q4 Why separate standby compressor for each fresh chamber?

Raw and finished pre-cut goods cannot share cooling circuits; single zone unit failure will not contaminate all batches of ready-to-eat ingredients.

Custom Pre-Cut Fruit & Vegetable Cold Storage Inquiry

If you plan to build multi-temperature central kitchen warehouse for Shanghai/Jiangsu e-commerce fresh platforms, provide daily processing tonnage to get free HACCP zoning layout drawing & full equipment quotation.

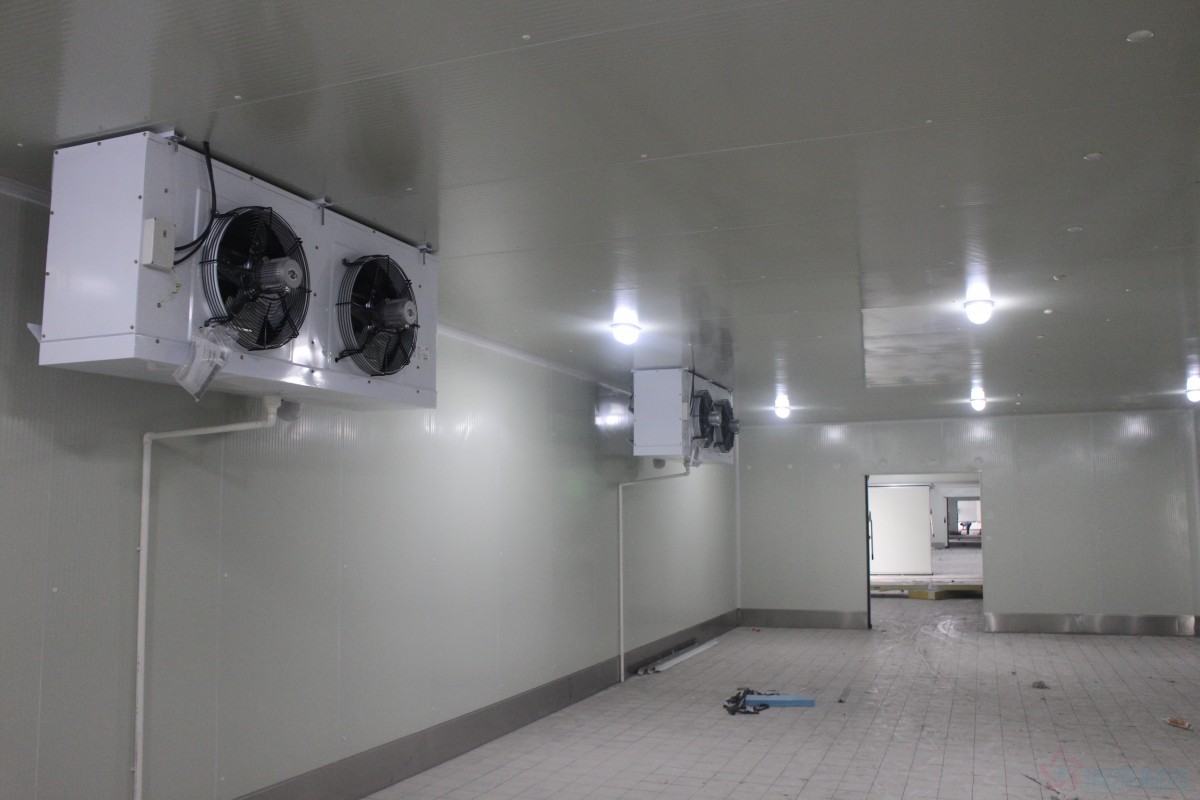

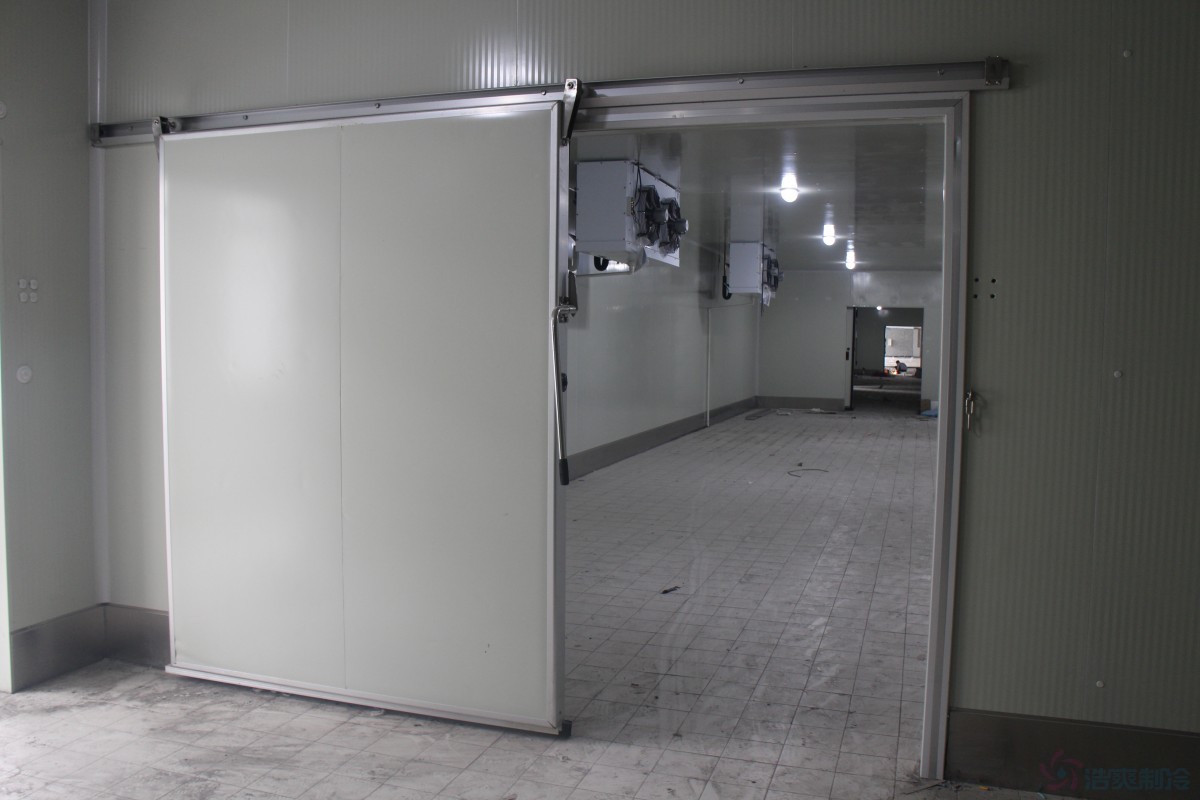

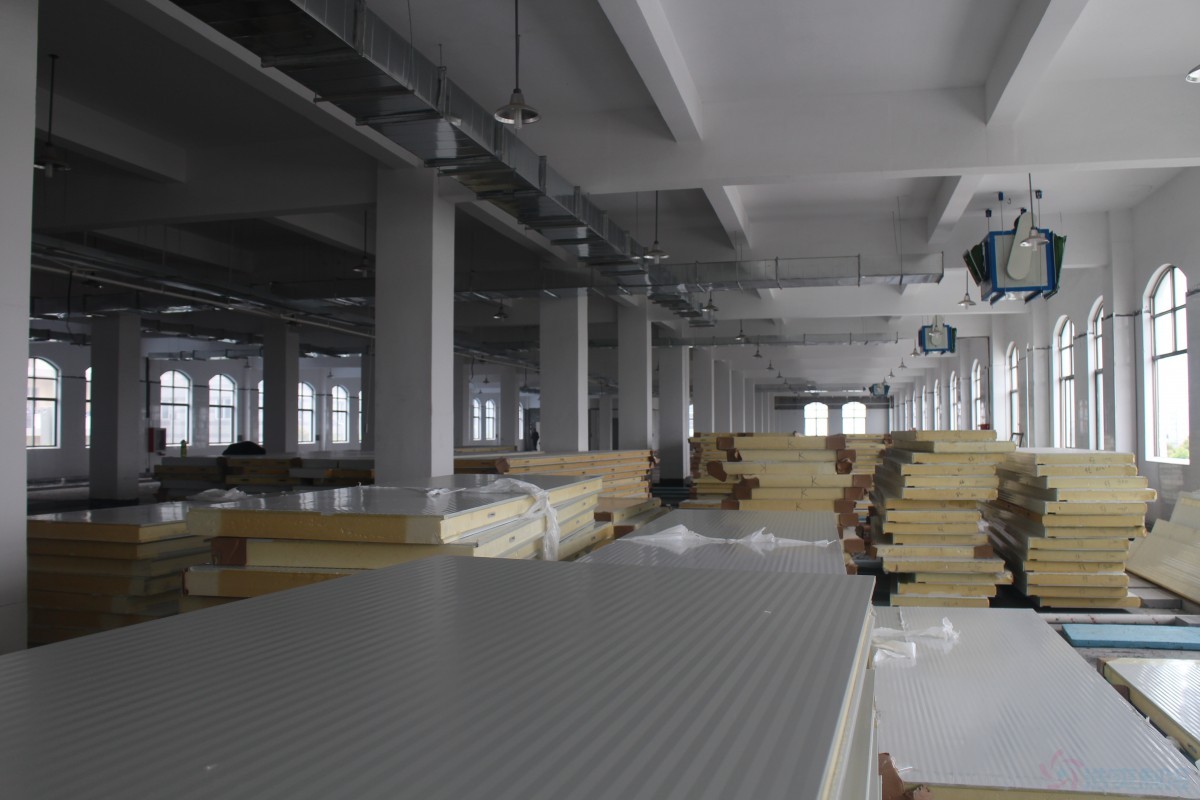

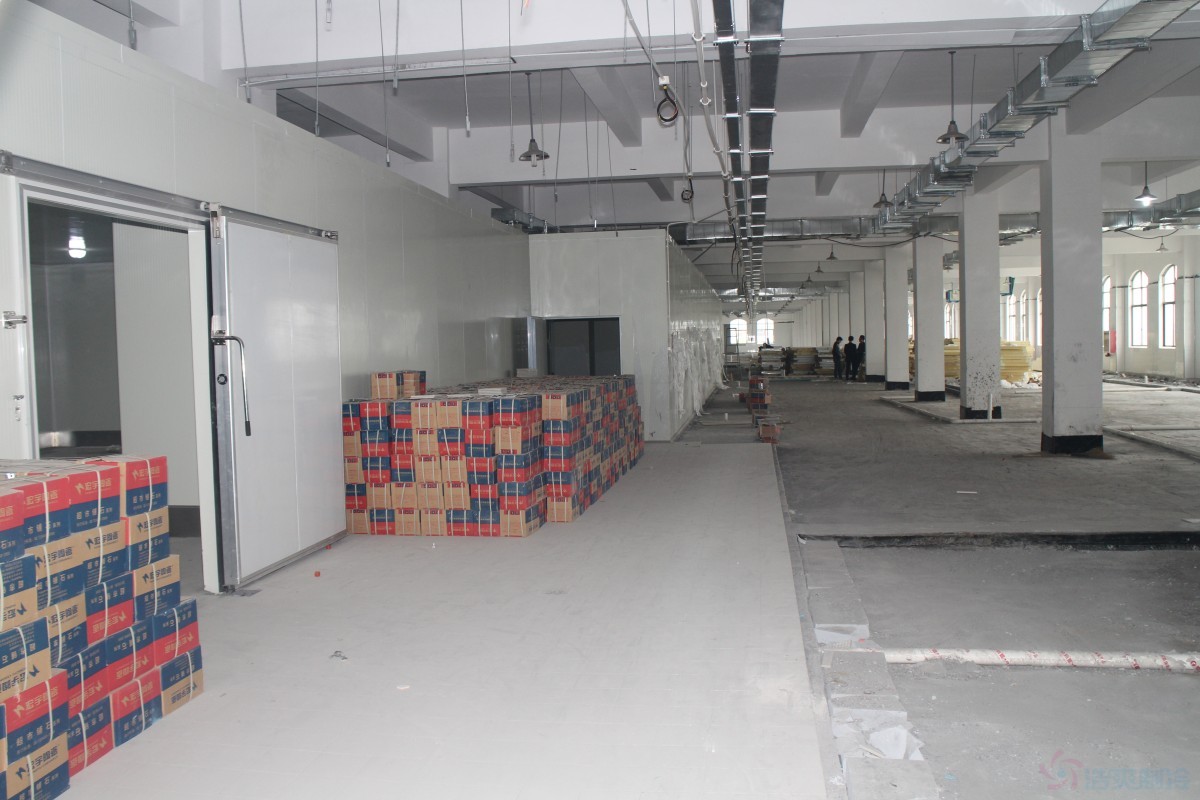

Construction & Completion Photos
