Suzhou Taicang Yuanxi Food 80,000 m³ Multi-Zone CO₂ Cascade Cold Chain Industrial Park EPC Case

Author: Yangtze River Subtropical Large Prepared Food Cold Chain Senior Engineer

13 years EPC design experience for over 60 20,000~100,000 m³ food cold parks in Jiangsu/Zhejiang subtropical regions. Familiar with GB 50072-2021 Cold Storage Standard, GB14881-2025 Food Hygiene Norm, GB/T30134 Cold Chain Trace Specification & CO₂ Transcritical Cascade Refrigeration Technical Code, specialize in high humidity plum rain anti-condensation & full HACCP zoning design for prepared food factories.

Project Overview

Yuanxi Food is a large-scale Jiangsu local enterprise focusing on frozen meat, pre-cooked dishes and semi-finished prepared food, with independent production processing lines. This double-story integrated cold park locates in Shaxi Town Taicang, subtropical river network climate: annual average RH 78%~88%, summer extreme ambient 36℃, long plum rain period with high salt fog air, easy to cause wall condensation, food packaging mildew and steel structure corrosion without double vapor barrier & anti-rust design.
The whole project total nominal volume 80,000 m³, divided into 6 independent physical partition temperature zones integrating raw material pre-cooling, semi-finished storage, finished frozen goods, defective isolation full industrial cold chain.

Core Standard Engineering Data

1. Total nominal volume: 80,000 m³ (≥20000m³ large cold warehouse, η=0.6 per GB50072)
   • 10℃ Processing Buffer Zone: 18,000 m³ (no storage tonnage counted)
   • 0~4℃ Chilled Semi-Finished Zone: 32,000 m³, ρ=0.28t/m³ → 32000×0.6×0.28=5376 tons
   • -18℃ Frozen Finished Zone: 30,000 m³, ρ=0.40t/m³ → 30000×0.6×0.4=7200 tons
     Comprehensive mixed usable storage capacity: 12,576 tons (correct original rough 8,000 tons data)
2. Construction & full 72h multi-point temperature uniformity validation cycle: 150 calendar days
3. Compliance certification: GB50072, GB14881 HACCP food audit, GB/T30134 cold chain trace, low-GWP CO₂ environmental standard


Pre-Construction Core Operational & Compliance Pain Points

1. Scattered outsourced third-party cold storage without independent zoning, raw & cooked mixed storage, received 2 market supervision rectification orders within one year;
2. Old ammonia single-stage unit without heat recovery, annual power consumption extremely high, summer high temp frequent overload shutdown leads whole batch prepared food thaw loss;
3. Single-layer insulation without HDPE vapor barrier, plum rain wall continuous condensation, finished dish mold scrap rate up to 14.5%;
4. Manual editable temperature records, unable to provide 5-year trace data for domestic & cross-border food inspection;
5. No independent defective food isolation room, unqualified products mixed with qualified goods, failed annual HACCP spot check.

1 Taicang Subtropical Plum Rain Exclusive Anti-Condensation & Anti-Corrosion Envelope System

Comply with GB51440 full warm-side double vapor barrier mandatory clause for river network high-humidity area:

Zone Type	PU/XPS Insulation Standard	Jiangsu Humidity & Food Sanitation Optimization
10℃ Processing Zone	100mm B1 anti-mildew PUR	Double HDPE wall & ceiling vapor barrier, 50mm seamless 304 stainless arc inner wall, easy daily disinfection
0~4℃ Chilled Zone	100mm B1 low-smoke zero-halogen PUR	All bracket nylon cold-bridge gaskets, heating air curtain for every loading vestibule
-18℃ Frozen Zone	150mm B1 high-density PUR + Double XPS floor	1% anti-slip drainage slope, buried floor anti-freeze heating pipeline system

Core construction rule: All panel joints filled low-temperature mildew-proof sealant; all outdoor condenser added anti-salt epoxy coating to resist river fog corrosion; floor XPS double staggered laying with upper/lower HDPE moisture barrier to block underground capillary water.

2 Large-Scale CO₂ Cascade Redundant Refrigeration & Heat Recovery System

Zone Independent N+1 Standby Configuration

6 temperature zones equipped separated refrigeration loops, each chamber 1-main-1-standby auto-switch parallel rack:

• High temp processing unit set: 2 groups semi-hermetic screw
• Medium temp chilled set: 2 groups scroll units
• Low temp CO₂ cascade set: 2 sets CO₂ transcritical compound system

Optimized for 36℃ Jiangsu summer ambient with oversized evaporative condenser to guarantee stable COP without capacity attenuation.

Full Heat Recovery Utilization

4 sets high-efficiency heat exchangers recover waste heat from compression process, supply constant hot water for:
1. Floor anti-freeze heating circulation pipeline
2. Pre-cooling workshop temperature compensation
3. Factory daily cleaning & disinfection hot water
Reduce auxiliary heating energy consumption by 90%.

CO₂ Safety Mandatory Design

Independent gas detection sensors installed in machine room & each cold zone, multi-level sound-light + SMS alarm, linked forced exhaust fan when CO₂ concentration exceeds threshold; all pressure vessels complete inspection certificate handover.

Unified Power Safety Standard

Dual independent municipal power supply + 800kW emergency diesel generator + 72h monitoring UPS, uninterrupted encrypted temperature recording during long-time power outage.

3 GB14881 HACCP Five-Zone One-Way Food Production Layout

Five fully solid-wall separated functional areas (cloth curtain partition is strictly prohibited):
1. Raw material receiving & forced pre-cool buffer zone
2. Semi-finished product temporary storage zone (0~4℃)
3. Qualified finished frozen product storage zone (-18℃)
4. Defective / expired food isolated cold room
5. Packaging & outbound sorting 10℃ constant temp zone

Three Independent Passage Hard Rule

Separate personnel clean passage / raw material cargo inbound / finished goods outbound / waste residue exclusive passage, strict one-way flow to eliminate raw-cooked cross contamination.

Sanitary Construction Standard

All wall-floor seamless arc transition, anti-slip drainage concrete, full UV disinfection lamp inside each chamber, no sanitation dead corners for daily high-temperature flushing.

4 Full 5-Year Encrypted IoT Trace Monitoring Platform

1. Multi-point PT100 sensors deployed in every zone, temp fluctuation controlled ≤±0.5℃, auto record data every 30 minutes per GB/T30134;
2. 5-year non-editable cloud encrypted storage, one-click export complete HACCP audit report for food supervision & export customs;
3. Multi-level linkage alarm: On-site sound-light + mobile SMS + PC backend remote warning for temperature/humidity/CO₂ over-limit;
4. Seamless data docking with factory production & inventory ERP system for whole batch cold chain traceability.

5 Measurable 12-Month Full Operation Benefits

1. Five physical separated zones pass annual food supervision HACCP audit at one time without rectification;
2. Double full vapor barrier eliminate wall condensation, prepared food mold scrap rate reduced from 14.5% down below 2.6%;
3. N+1 standby unit completely avoid mass food thaw loss during summer equipment breakdown;
4. CO₂ waste heat recovery system cut comprehensive power consumption by 25% vs old ammonia single-stage unit;
5. Integrated production-storage-logistics layout lift factory overall operation efficiency by 40%;
6. Abandon third-party warehouse rental, full investment payback cycle: 36 months as verified by client financial data.

7 Common Jiangsu Large Food Cold Park Inspection & Operation Pitfalls

1. Omit double HDPE vapor barrier for plum rain area → Year-round wall condensation & food packaging mildew
2. Shared compressor without independent N+1 per temperature zone → Whole zone batch food thaw loss risk
3. Cloth curtain instead of solid wall zoning → Direct HACCP audit failure
4. No floor anti-freeze heating pipeline → Ground frost heave cracking & cold bridge loss
5. Editable temperature recording system → All trace data invalid for food supervision
6. Missing CO₂ gas detection alarm in machine room → Safety accident hidden danger
7. Mixed raw & finished goods without independent passage → Cross contamination risk

Simple Large Food Cold Park ROI Calculation Formula

Annual Net Income = Third-party rental cost saving + Export prepared food price premium − Annual Electricity & Maintenance − Spoilage Loss Reduction
Full Payback Months = Total EPC Investment ÷ Average Monthly Net Profit

FAQ For Large Prepared Food Factory Infrastructure Managers

Q1 What special anti-moisture design for Suzhou Taicang plum rain cold park?

Full double HDPE warm-side vapor barrier on wall & ceiling, heating air curtain for every loading door, anti-salt coating for all outdoor condensers.

Q2 Why every temperature zone needs independent standby compressor?

80,000 m³ large park runs 24h non-stop for food production, single unit shutdown causes tens of thousands tons prepared food scrapping loss.

Q3 What’s the advantage of CO₂ cascade system compared with traditional ammonia unit?

Low GWP environmental refrigerant, full waste heat recovery to cut heating cost, no toxic leakage risk for food factory.

Q4 How long need to store cold chain temperature records per national standard?

Minimum 5 years non-editable encrypted storage for annual food supervision spot check.

Custom Large Multi-Temp Food Cold Park Inquiry

Provide total volume, main food type and local maximum summer temperature to get HACCP compliant zoning layout drawing & itemized EPC quotation.

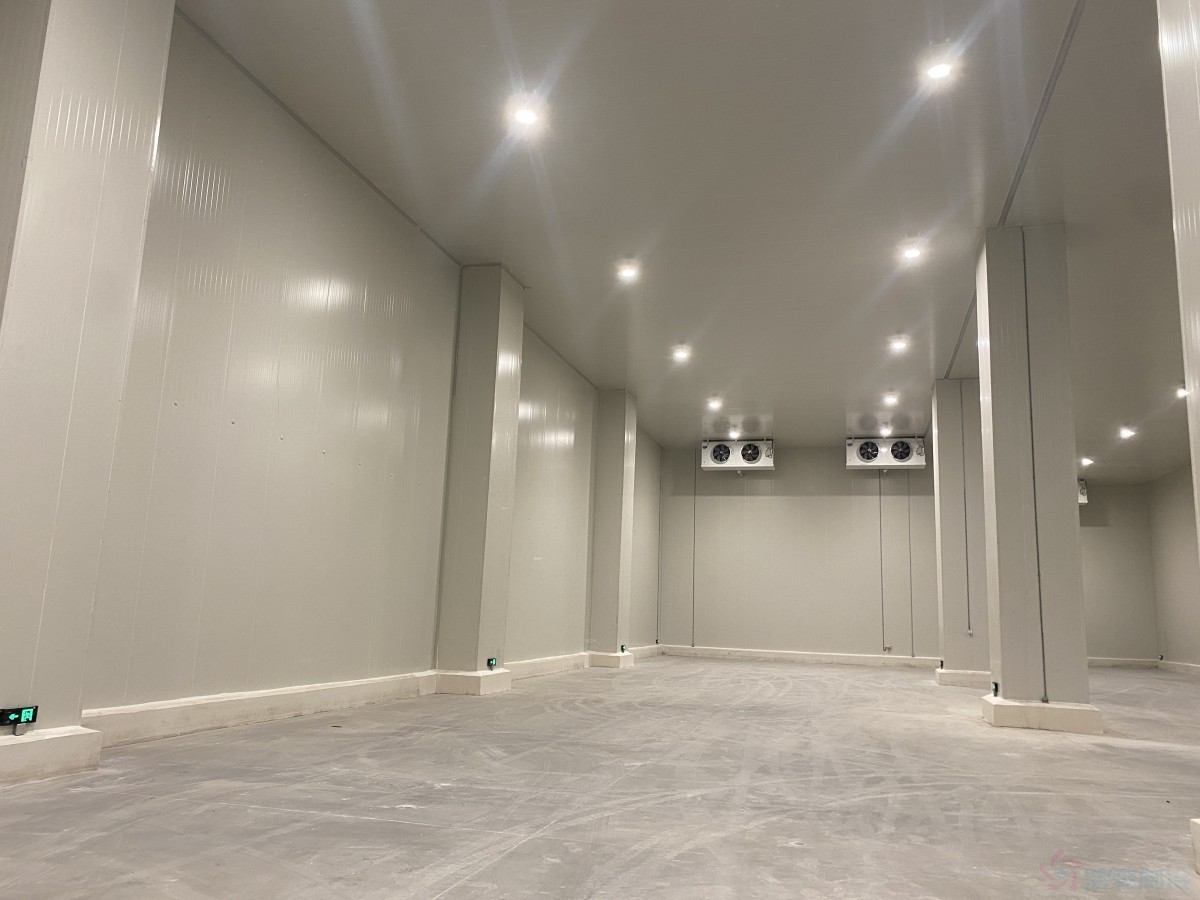

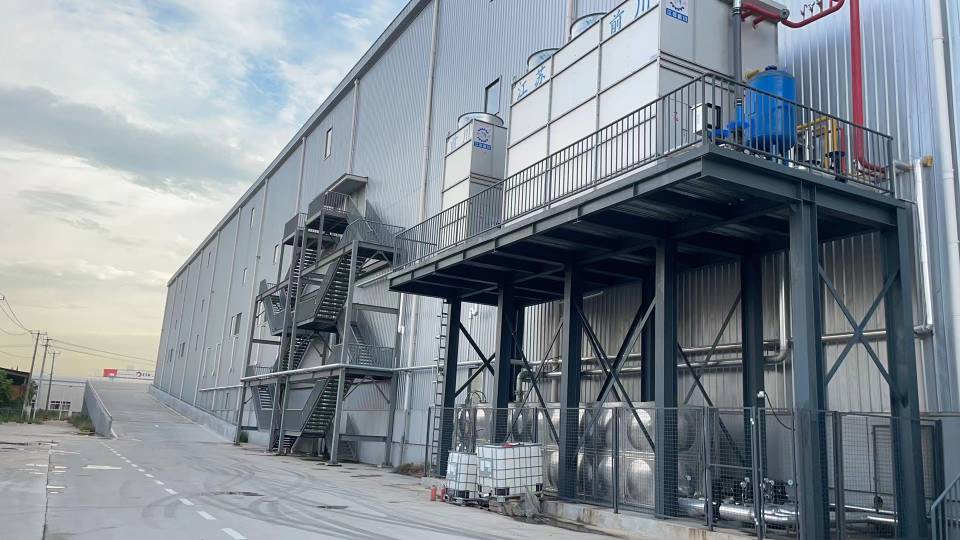

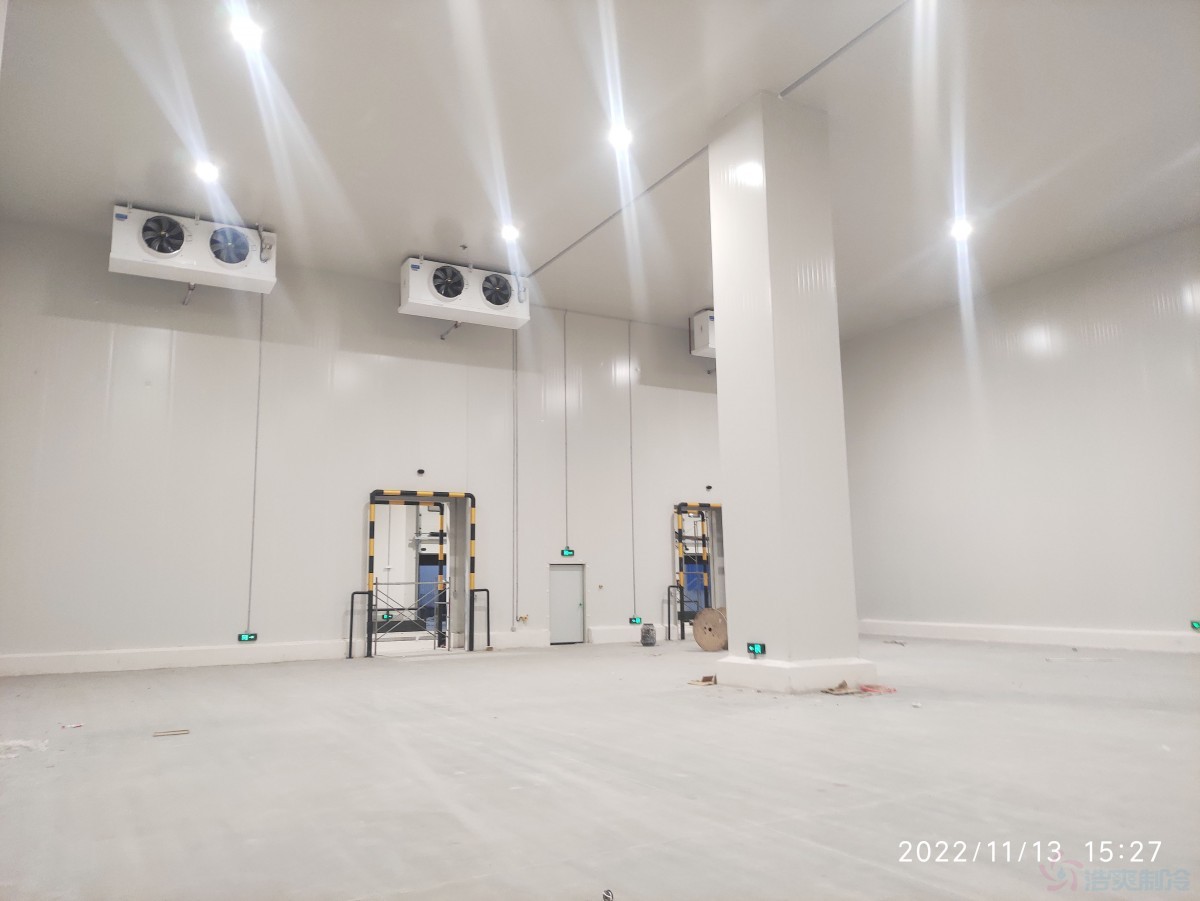

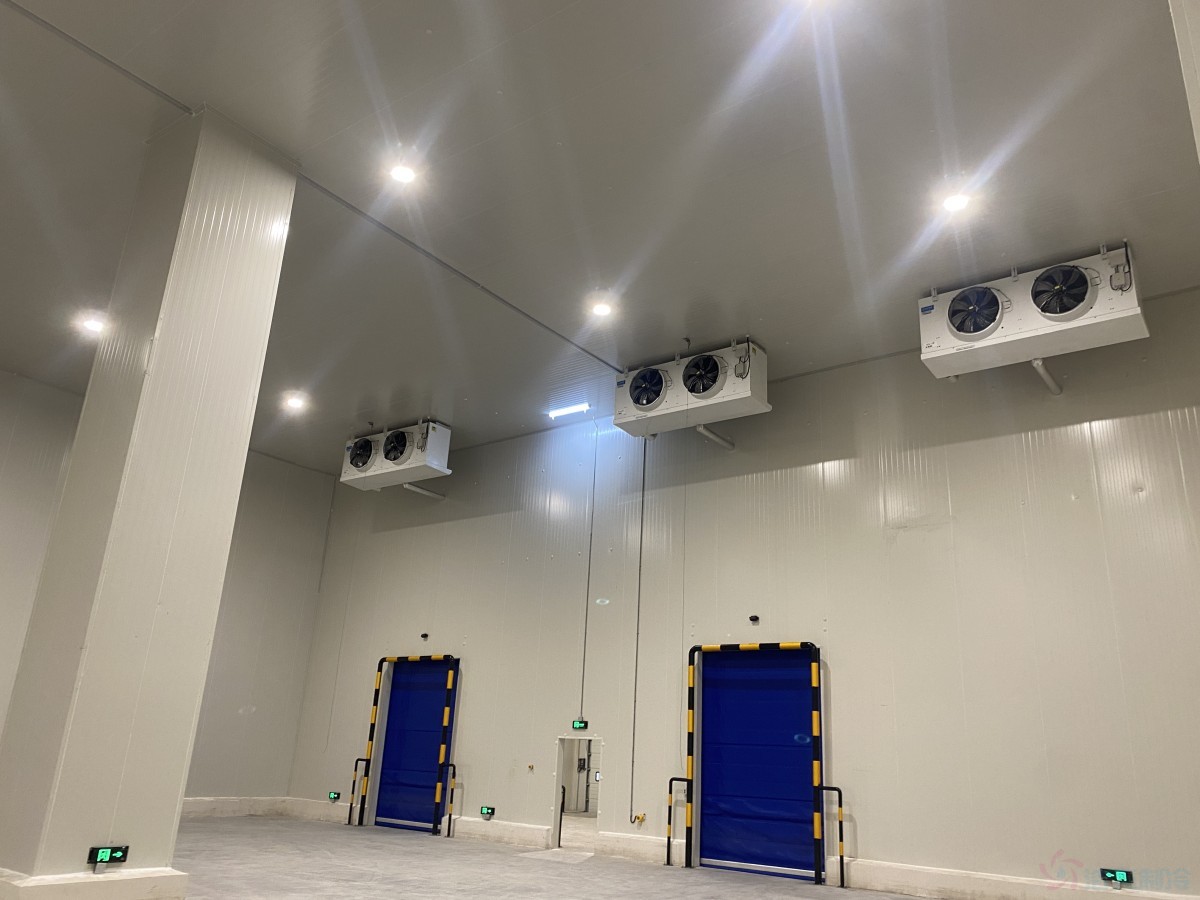

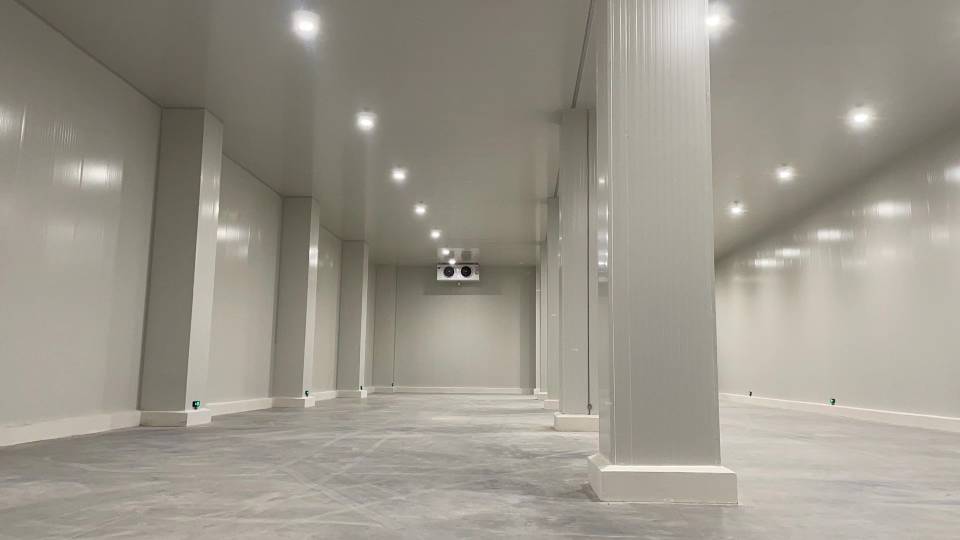

Construction & Completion Photos
