20,000 m³ Multi‑Phase Wine Cold‑Storage EPC Project in Shanghai & Qingdao | E‑Commerce Bonded Fine‑Wine Preservation Case

Client: Wine‑World, leading imported fine‑wine e‑commerce platform

Service Delivered: Multi‑phase multi‑temperature wine cold‑storage layout design, constant‑temp‑humidity refrigeration system, bonded‑warehouse‑adapted enclosure, site installation & phased commissioning

Fine wines are extremely sensitive to temperature swings, improper humidity, UV‑light exposure and vibration. Generic regular cold rooms cannot safeguard cork integrity, wine aroma and label condition for high‑value imported wine inventory. This large‑scale phased project was custom‑built for Wine‑World e‑commerce, covering dual locations in Shanghai and Qingdao. It delivers bonded warehousing, long‑term wine preservation and high‑efficiency e‑commerce order fulfilment for massive imported fine‑wine stocks.

Total project volume exceeds 20,000 m³, rolled‑out in three construction phases:
‑ Phase I: 14,535 m³
‑ Phase II: 4,800 m³
‑ Phase III: 1,230 m³

Construction timeline: Phase I:60 working days; Phase II:30 working days; Phase III:20 working days.

Core Project Metrics

• Total multi‑phase cold‑storage volume: over 20,000 m³, dual‑site deployment (Shanghai + Qingdao port‑adjacent locations)
• Three independent functional temperature zones tailored for different wine categories, with precise RH 60‑70% constant‑humidity control
• Core business scenarios: bonded import storage, long‑term wine aging, e‑commerce batch picking & order fulfilment
• Project scope: Phased design & build, constant‑temp‑humidity refrigeration, anti‑UV enclosure, on‑site commissioning

Pre‑Construction Operational & Inventory Pain Points

Before this dedicated wine cold‑storage roll‑out, the e‑commerce operator faced serious inventory and logistics bottlenecks:

1. Mixed‑environment storage risks for high‑value wine stock
   Rented ordinary warehouses lacked stable multi‑zone temp‑humidity control. Fluctuating humidity caused two major hazards: dry air dries natural corks triggering wine oxidation; excessive moisture creates label mould and capsule corrosion, devaluing collectible wine bottles.
2. Different wine varieties demand divergent preservation conditions
   Sparkling wine, white wine, table red wine and high‑end aging‑grade red wine cannot share one single storage zone. Uniform settings would compromise flavour, bubble performance or aging potential across product lines.
3. Dual‑port bonded‑logistics requirement
   Large‑volume wine imports arrive via Qingdao northern port and Shanghai international hub. Without matched cold‑storage capacity at both locations, cross‑city inland transportation increases freight cost and bottle‑shock risk.
4. Peak‑season e‑commerce order‑fulfilment pressure
   Holiday shopping surges generate massive picking & outbound tasks. Storage layout needed to balance long‑term static preservation and fast‑moving e‑commerce order‑picking workflows.

Local‑site constraint note: Professional wine cold‑storage is not merely temperature control. Stable relative humidity 60‑70%, anti‑UV lighting and low‑vibration equipment operation are equally critical to protect corks, labels and wine quality.

Custom‑Built Multi‑Zone Wine‑Oriented Engineering Solutions

Three separated temperature‑humidity zones were implemented, each optimised for specific wine categories, with unified constant‑humidity regulation locked at RH 60‑70%.

Functional Zone	Temperature Setting	Primary Application
Low‑temperature zone	0‑8 °C	Sparkling wine & crisp white‑wine preservation
Constant‑temperature storage zone	2‑6 °C	Medium‑long‑term storage for most red & white table wines
Premium maturation aging zone	14‑18 °C	High‑end collectible wines requiring slow controlled ageing

1. Refrigeration & Humidity‑Stabilising System

• Eco‑friendly fluorinated refrigerant refrigeration system, optimised for low‑vibration operation to avoid disturbing wine stock.
• Integrated humidification & dehumidification assembly maintaining steady RH 60‑70% throughout all chambers, protecting natural cork elasticity while preventing label mildew.
• Energy‑saving configuration meeting both domestic construction standards and international beverage‑warehouse sustainability requirements.

2. Enclosure & Auxiliary Wine‑Warehouse Optimisations

• Anti‑UV interior lighting setup, eliminating ultraviolet‑light‑driven wine‑flavour degradation.
• Warehouse layout balances static bulk wine storage area and e‑commerce fast‑picking aisles to handle order‑volume spikes during promotional shopping seasons.
• Dual‑site deployment strategy: Qingdao for northern port import receiving; Shanghai for nationwide downstream e‑commerce distribution.

Wine Cold‑Storage Finished‑Site Photographs

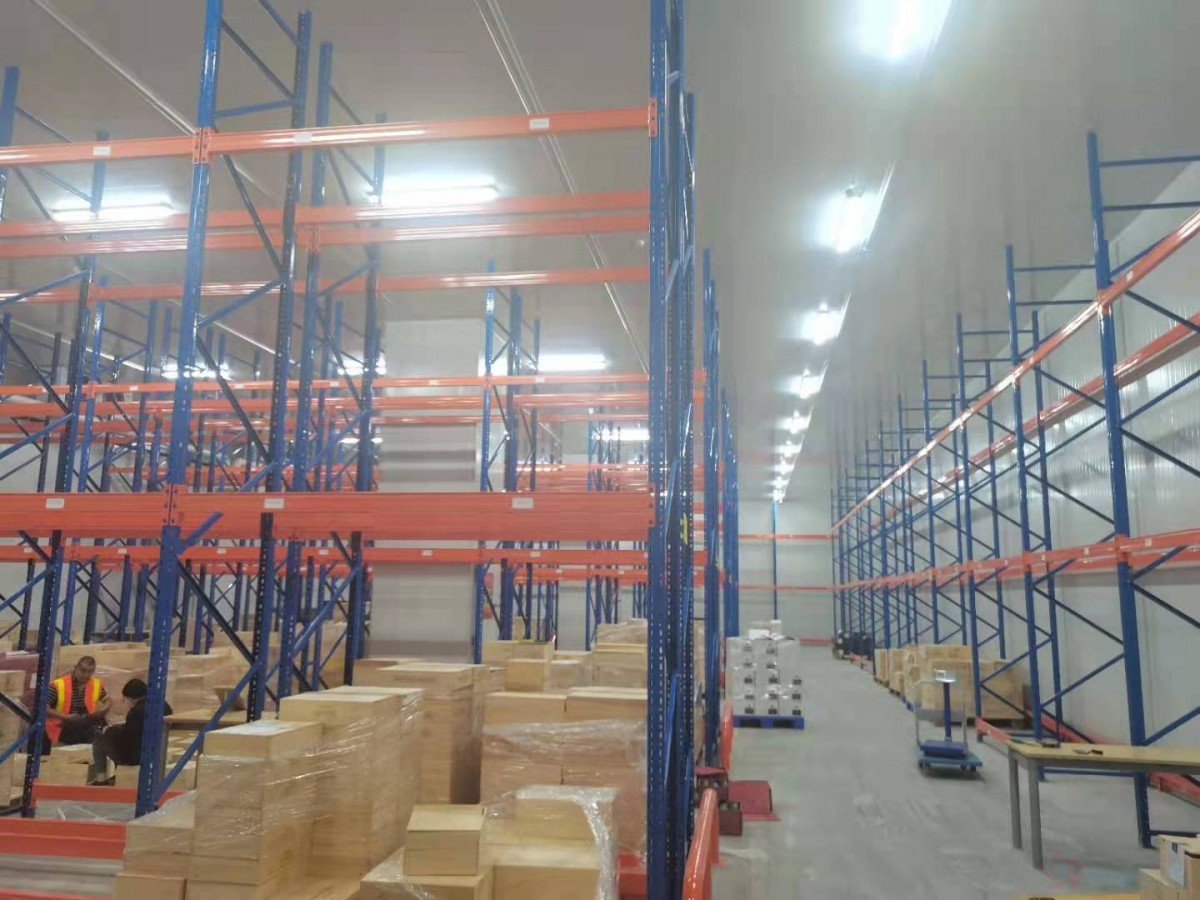

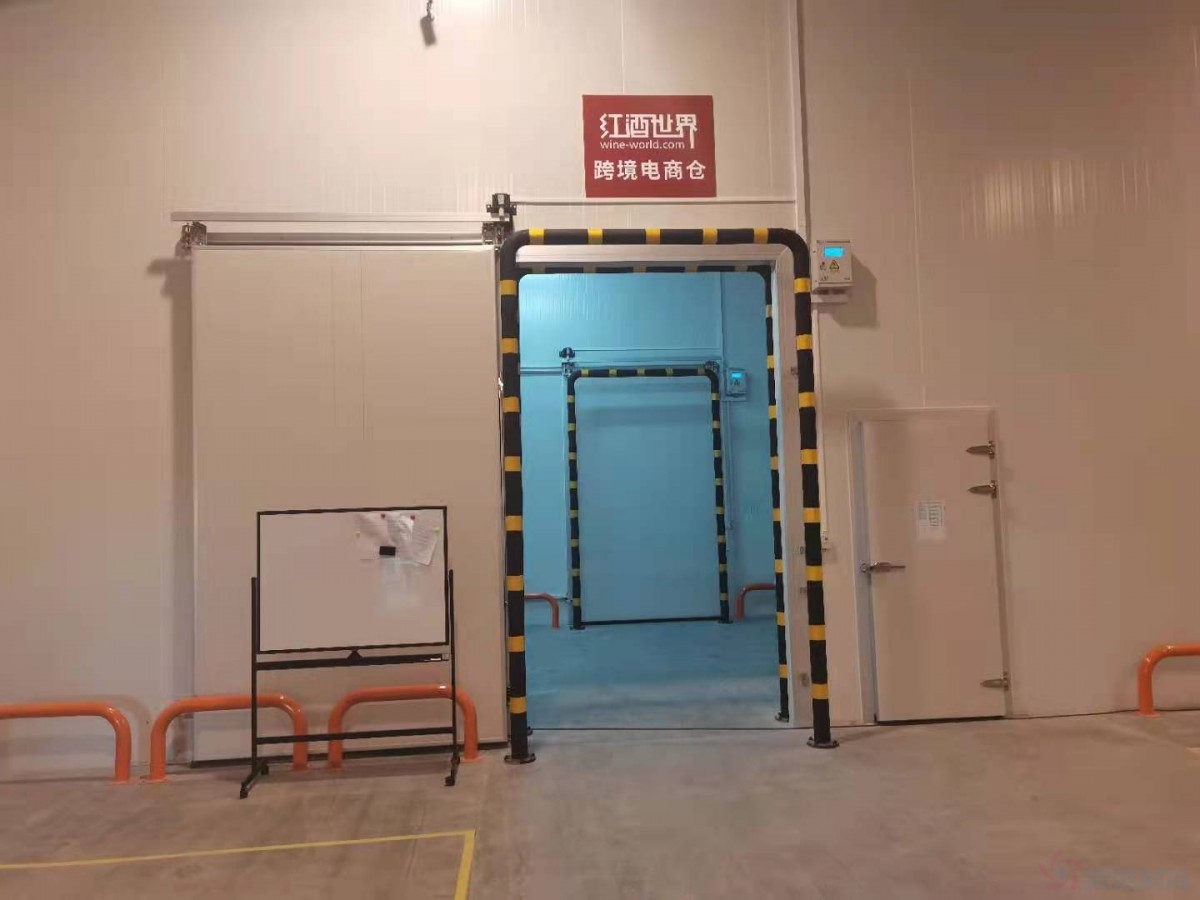

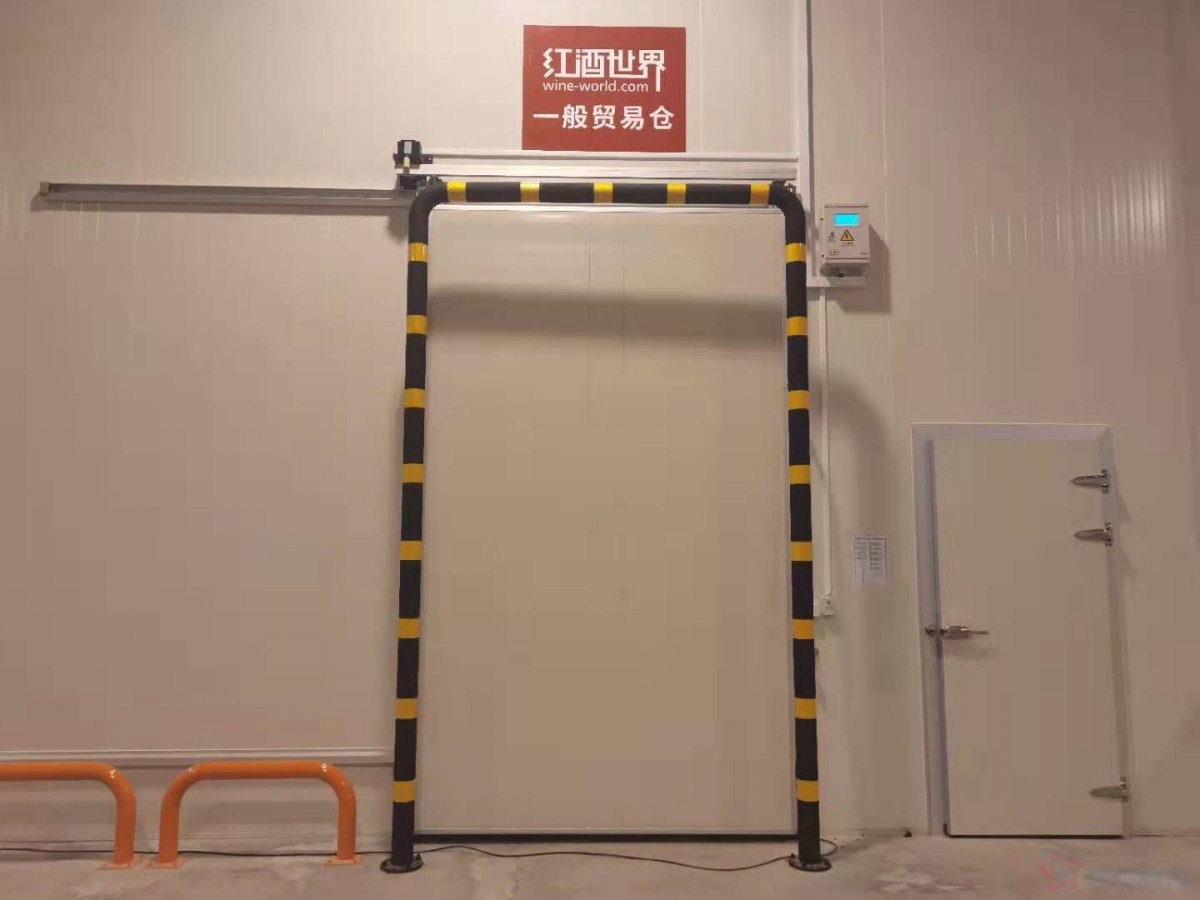

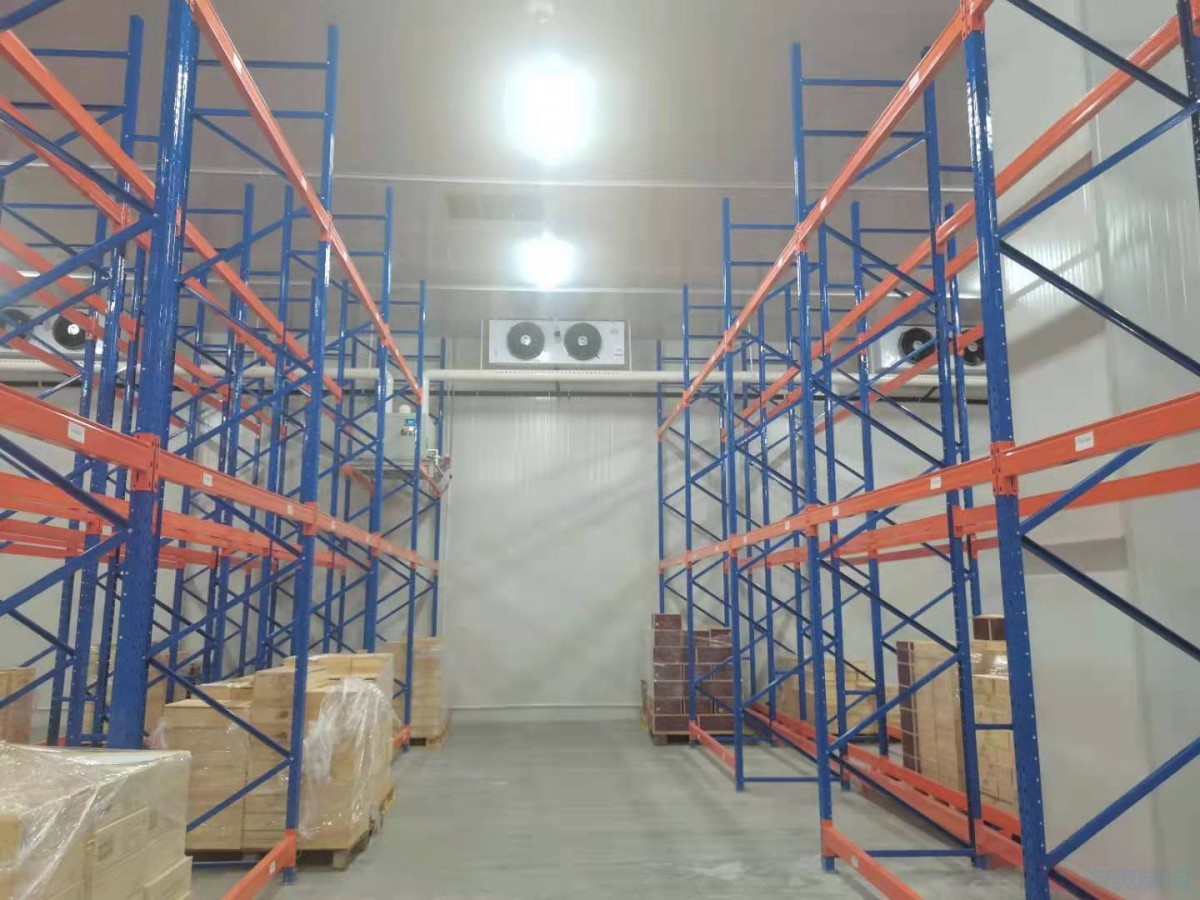

On‑site real shot of finished multi‑zone e‑commerce wine cold‑storage warehouse for bonded imported‑wine inventory.

Measurable 12‑Month Operational Outcomes After Phased Commissioning

✅ Three specialised temp‑humidity zones match preservation requirements for sparkling, white, regular red and collectible aging‑grade wines; greatly reduce oxidation and label‑mould‑related inventory loss
✅ Stable RH 60‑70% environment preserves natural cork elasticity, lowering high‑value wine deterioration risk
✅ Dual‑site Shanghai‑Qingdao cold‑storage layout optimises import bonded logistics and nationwide e‑commerce delivery speed
✅ Mixed‑function layout combines long‑term static preservation and peak‑season e‑commerce order‑picking capability
✅ Phased‑capacity roll‑out matches business growth rhythm without oversized one‑time upfront capital expenditure.

Practical Lessons Learned For Large‑Scale E‑Commerce Wine Cold‑Storage Projects

Summarised from this 20000m³ multi‑location wine cold‑storage delivery, key pitfalls for fine‑wine warehouse investors:
1. Only focus on temperature while ignoring precise 60‑70 % RH humidity management → cork drying‑out or label mould damage high‑value wine inventory
2. Store all wine varieties inside one uniform‑condition cold room → cannot satisfy divergent preservation requirements for sparkling, table red and aging‑grade premium wines
3. Skip anti‑UV lighting renovation → UV radiation degrades wine aroma and flavour profile over storage time
4. Build single‑site large‑capacity cold‑storage far away from import port → extra long‑haul transport raises freight cost and bottle‑shock risk
5. Design purely for static storage without reserving e‑commerce picking workflow space → system cannot cope with holiday‑surge order volumes.

FAQ For Fine‑Wine Importers & Wine E‑Commerce Operators

Q1: Why is humidity control so critical for wine cold‑storage?
A: Target RH 60‑70%. Too‑low humidity dries natural corks and triggers wine oxidation; excessive humidity creates mildew on paper labels and capsule corrosion, reducing resale value of collectible wine bottles.

Q2: Can sparkling wine and aging‑grade red wine share the same cold‑storage chamber?
A: Not recommended. Sparkling wine needs cooler 0‑8 °C conditions; premium aging red wine requires stable 14‑18 °C maturation environment. Mixed storage forces compromise on set‑points and damages wine quality.

Q3: What are core considerations for bonded‑warehouse wine cold‑storage near import ports?
A: Match multi‑phase expandable capacity, implement strict constant temp‑humidity control, and separate bulk‑import receiving area from e‑commerce order‑picking zone.

Q4: Why adopt phased‑construction for large‑volume wine cold‑storage?
A: Phased roll‑out lets capacity expand synchronously with actual wine‑inventory growth, avoiding heavy idle‑capacity waste and optimising capital‑expenditure schedule.

Request Your Custom Fine‑Wine Cold‑Storage Proposal

If you plan cold‑storage construction for imported‑wine bonded warehousing or wine e‑commerce fulfilment, share your total inventory scale, wine‑type portfolio, port‑location requirements and peak‑order volume information. Our engineering team can deliver multi‑zone temp‑humidity‑optimised layout concept and itemised USD‑denominated quotation.
