Author Northwest Frigid Zone Bonded Cold Chain Senior Engineer
13 years large customs supervised cold park EPC experience for Xinjiang border bonded zones. Familiar with GB 50072-2021 cold storage standard, China customs bonded warehouse construction specification, Central Asia livestock quarantine rule & HACCP food safety system, specialize in -30℃ extreme cold anti-freeze & sandstorm anti-corrosion customized design for Belt and Road cross-border logistics.
Project Overview
This 78,525 m³ integrated bonded cold chain logistics park locates in Yining Customs Supervision Zone, serving as core cross-border hub connecting China and Central Asia for frozen meat, fresh fruits & vegetable import & export.
Local extreme climate risk: Winter ambient as low as -30℃, strong sandstorm, day-night temperature gap over 40℃; ordinary southern cold room design causes unit startup failure, floor frost heave and large batch goods loss in cold season.
Core Standard Engineering Data
1 Total nominal volume:78,525 m³, split into two independent temperature zones
- 0~4℃ Chilled Zone: 34,200 m³ (fruit & vegetable, ρ=0.23t/m³)
- -18~-22℃ Frozen Zone: 44,325 m³ (imported livestock meat, ρ=0.4t/m³)
- GB50072 large warehouse η=0.6 calculation:
- Total usable mixed storage ton = (34200×0.6×0.23)+(44325×0.6×0.4)=10270 tons
2 Full design & commission cycle: 12 calendar months
3 Compliance certification: Customs bonded warehouse qualification, HACCP food safety, Central Asia veterinary quarantine
- standard, GB50072 frigid region cold storage code
Pre-Construction Client Core Pain Points
1 Outsourced third-party bonded cold storage with high annual rental cost, single temperature zone unable to separate meat & fruit leading cross contamination;
2 Ordinary compressor without low-temp heating fails to start in -25℃ winter, frequent whole cargo overheating loss;
3 No customs independent quarantine isolation room, received 2 customs rectification notice within one year;
4 Single-layer insulation without double anti-vapor layer causes wall condensation & packaging mildew;
5 Manual editable temperature logs cannot pass cross-border customs trace audit.
1 Yining Frigid & Sandstorm Exclusive Anti-Freeze Envelope System
Comply with GB50072 cold region mandatory anti-frost standard:
| Zone Type | PU/XPS Spec | Xinjiang Winter Optimization Upgrade |
|---|---|---|
| 0~4℃ Chilled Fruit Zone | 120mm B1 low-smoke PUR | Double HDPE inner & outer full vapor barrier, anti-UV exterior coating for sandstorm resistance |
| -18~-22℃ Frozen Meat Zone | 200mm B1 high-density PUR | Double staggered XPS overhead anti-freeze floor + underground ventilation anti-frost pipeline; all pipeline electric heat tracing |
Core construction rule: Sloped snow-resistant roof, reinforced steel frame; every loading vestibule equipped wind-proof heating air curtain; all outdoor condensers with anti-sand epoxy coating, bracket nylon cold-bridge gaskets to eliminate cold loss.
2 N+1 Redundant Refrigeration With Natural Cold Source Energy Saving
Each independent cold room adopts 1-main-1-standby scroll parallel rack, liquid pump recirculation long-distance liquid supply system:
1 Compressor full low-temperature oil heating module, stable startup under -30℃ outdoor condition;
2 Winter natural cold air auxiliary cooling system cut 32% annual power consumption;
3 Dual municipal power + 1000kW emergency diesel generator + 72h dedicated UPS for monitoring system to avoid long power outage goods thaw loss;
4 Hot gas circulation defrost without local temperature spike damaging frozen meat & fresh produce.
3 Customs Supervised 5-Zone Solid Wall Layout (Curtain Separation Forbidden)
Five fully separated functional areas complying China cross-border bonded warehouse rules:
1 Customs Entry Inspection Zone (independent cold vestibule for cargo sampling)
2 Veterinary Quarantine Isolation Cold Room (unqualified livestock goods temporary storage)
3 Red Mark Defective & Expired Goods Locked Storage
4 Green Qualified Cross-Border Frozen Meat/Fruit Storage (meat & fruit solid wall separated)
24h one-way cargo & personnel flow, independent disinfection room, full 50mm seamless 304 stainless arc wall easy daily sanitation, rodent prevention full coverage per customs requirement.
4 5-Year Tamper-Proof Customs Trace Monitoring Platform
1 Multi-point PT100 sensors deployed per 120㎡, auto record data every 15 mins, temp fluctuation controlled ≤±1℃;
2 Minimum 5-year non-editable encrypted cloud storage for customs cross-border audit;
3 Four-level linkage alarm: On-site sound-light + local SMS + remote PC & mobile APP push for over-temp & power failure;
4 Full 72h multi-point temperature uniformity test report & customs filing data delivered after handover.
5 Measurable 12-Month Operation Benefits
1 Five zoning layout pass customs bonded warehouse filing & Central Asia veterinary audit one time without rectification;
2 Anti-freeze & anti-sand design eliminate winter unit shutdown risk, goods spoilage rate reduced from 13.8% down below 2.1%;
3 Natural cold source auxiliary cooling cut annual electricity cost by 32%;
4 Abandon expensive outsourced bonded storage, full investment payback period: 38 months.
8 Xinjiang Border Bonded Cold Park Hidden Inspection Pitfalls
1 Ordinary compressor without low-temp oil heating → -30℃ winter startup failure & whole batch loss
2 Skip overhead XPS anti-freeze floor → ground frost heave crack panel
3 Cloth curtain instead of solid customs quarantine partition → Bonded warehouse filing rejected
4 Single power supply without diesel backup → long power outage frozen meat thaw scrapping
5 Editable short-term temperature logs → Cross-border customs audit failure
6 No natural cold air system → Extra high annual refrigeration electricity bill
7 Mixed meat & fruit without solid wall → HACCP & veterinary cross contamination risk
8 Thin 100mm panel for -22℃ freezer → 35% higher energy consumption all year round
Simple Bonded Cold Park ROI Calculation Formula
Annual Net Saving = Outsourced Warehouse Rent Saving − Annual Power & Maintenance − Cross-Border Spoilage Loss Reduction
Full Payback Months = Total EPC Turnkey Investment ÷ Average Monthly Net Saving
FAQ For Xinjiang Cross-Border Logistics Operators
Q1 What special upgrade for cold storage in Yining -30℃ winter?
200mm thick freezer panel, overhead XPS anti-freeze floor, compressor low-temperature heating & pipeline heat tracing.
Q2 How many functional zones required for customs bonded cold park?
Five solid wall separated zones: inspection, quarantine isolation, defective lock-up, meat storage, fruit storage.
Q3 How long need to store temperature records for cross-border customs clearance?
Minimum 5 years non-editable encrypted storage per China customs supervision rule.
Q4 Energy saving advantage of Xinjiang natural cold source design?
Winter outdoor cold air auxiliary cooling reduces annual power consumption by around 32%.
Custom Border Bonded Cold Storage Inquiry
Provide annual cross-border cargo throughput & main product types to get customs compliant zoning layout & itemized USD quotation.

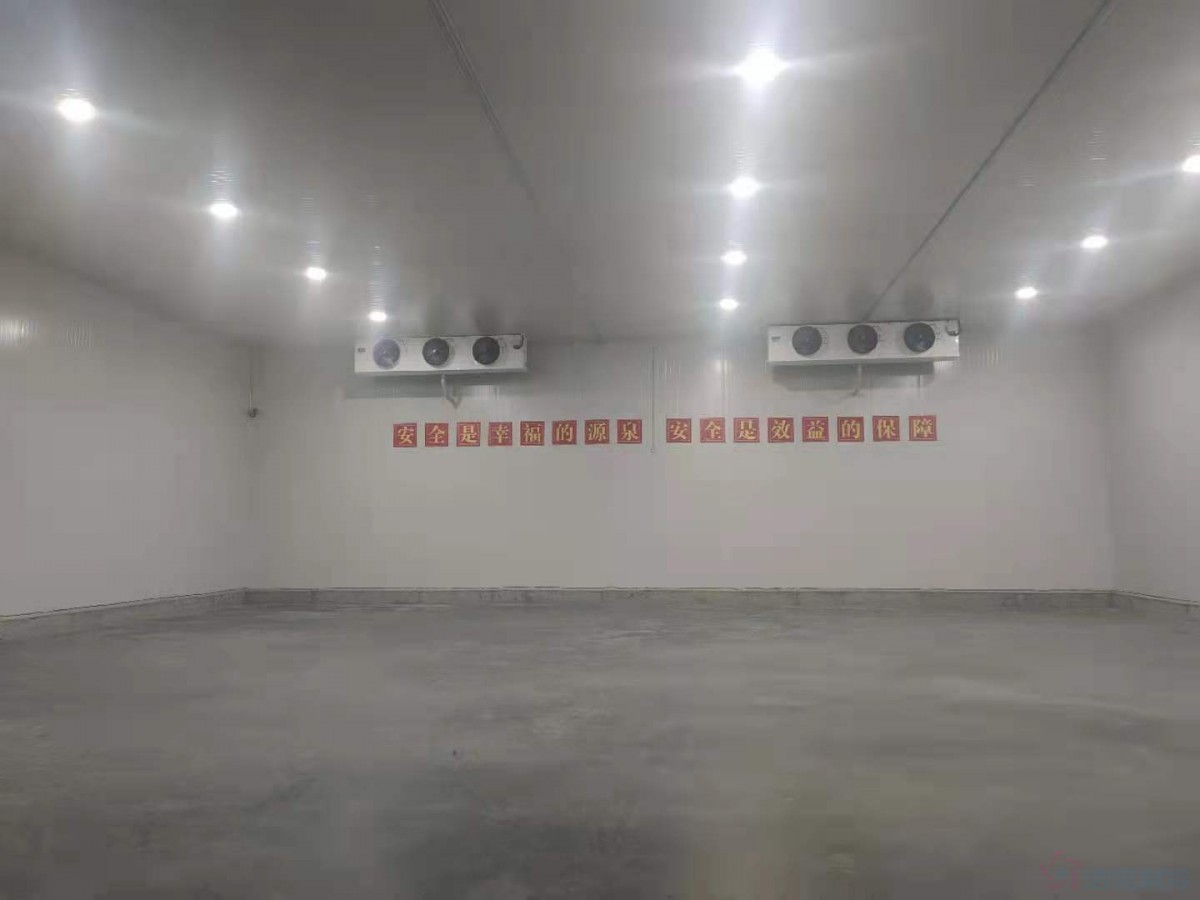

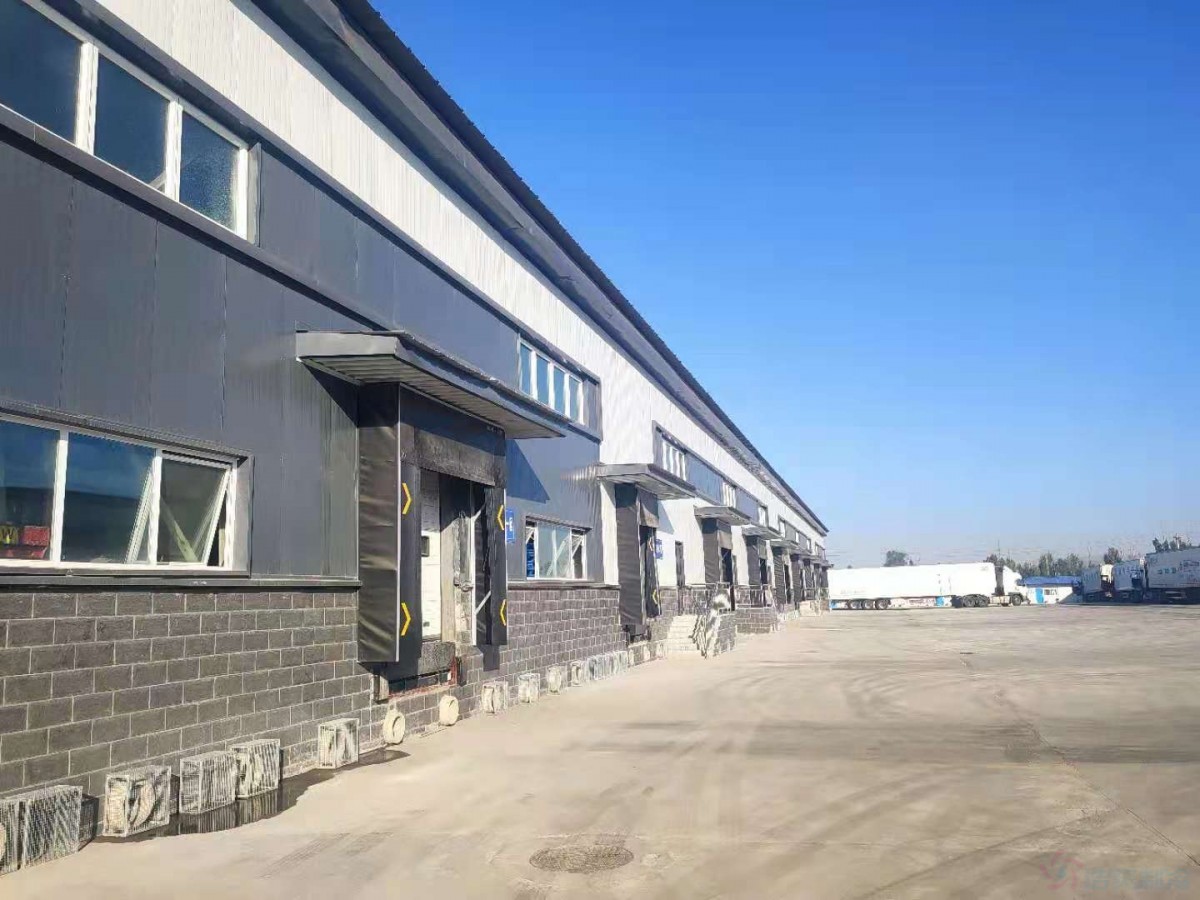

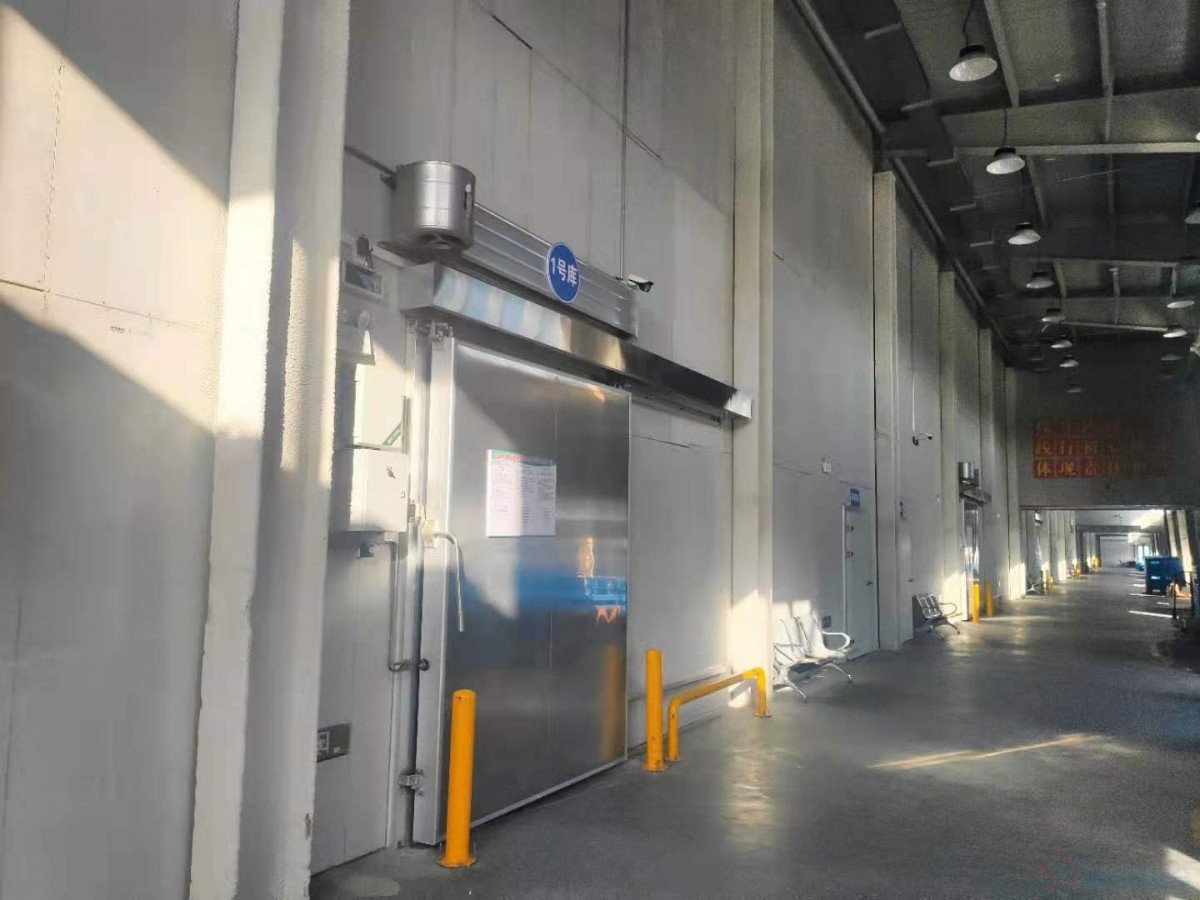

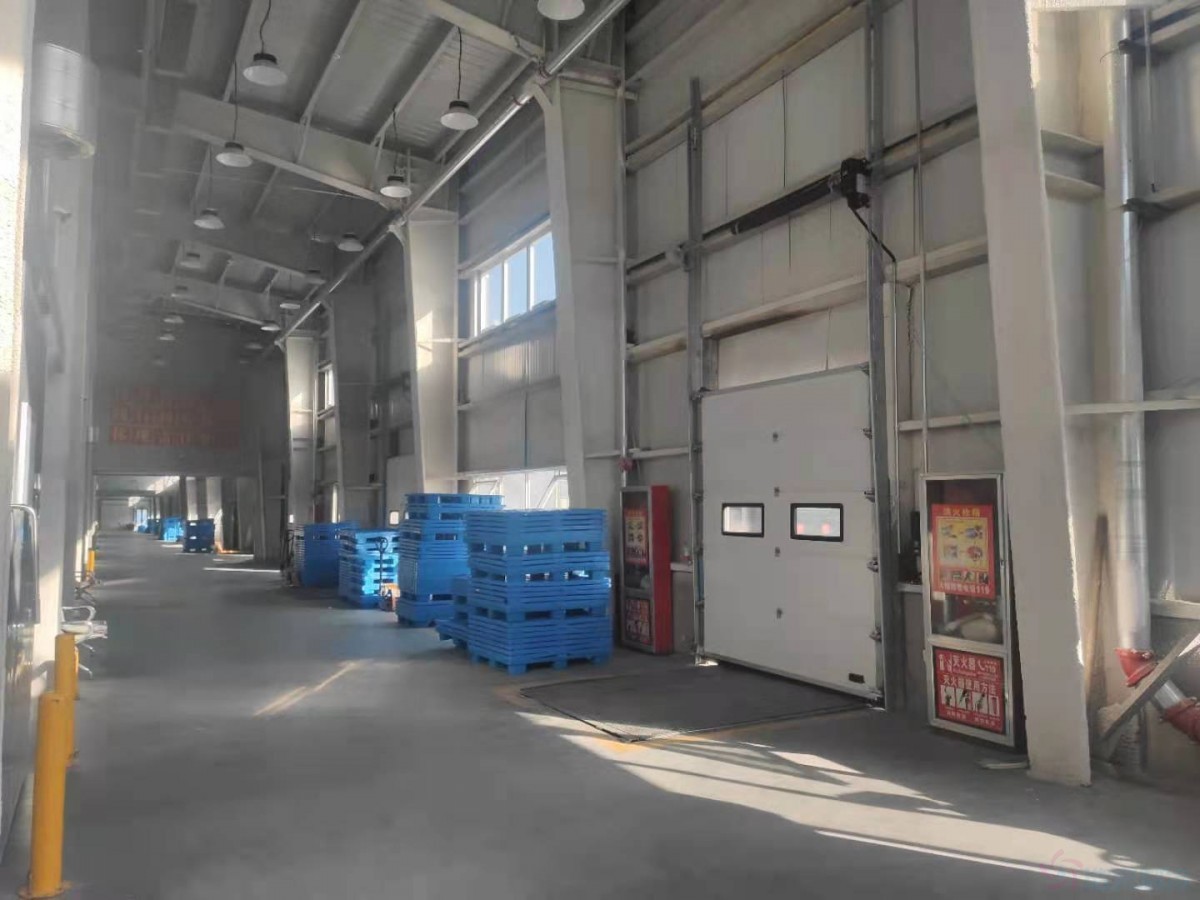

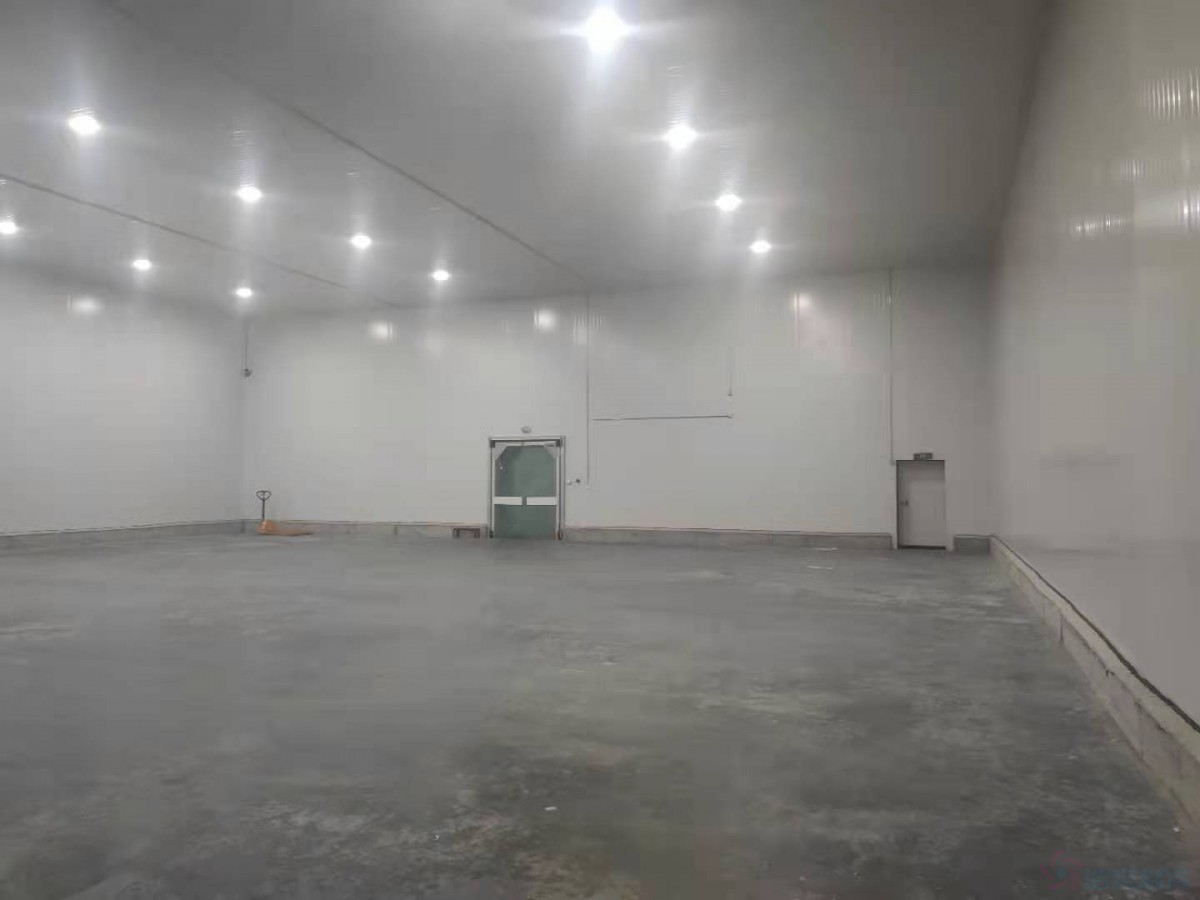

Construction & Completion Photos
