Wangjiahuan Group Shenzhen 11,000 m³ Multi-Temp Fresh Produce Cold Chain Logistics Park EPC Case

Author: South China Coastal High-Temp Humidity Large Cold Chain Senior Engineer

12 years large agricultural cold park EPC experience for Shenzhen, Guangdong coastal fresh distribution enterprises. Familiar with GB 50072-2021 Cold Storage Standard, GB14881 Food Hygiene Norm, GB/T30134 Cold Warehouse Management Specification & HACCP fresh logistics CCP standards, specialize in coastal high temperature, high salt & plum rain anti-corrosion/anti-condensation customized multi-temperature warehouse design.

Project Overview

Wangjiahuan Group is top 3 national fresh food B2B logistics provider, this 11,000 m³ integrated cold distribution hub locates in Shenzhen coastal area, annual ambient RH 82%~90%, summer extreme 38℃ high temperature & salt fog air, easily cause condenser corrosion, wall condensation and fruit mold without anti-corrosion & double vapor barrier design.
The whole park divides 8 independent physical partition cold rooms for whole-chain fresh operation, supporting daily 12,000+ orders sorting, national cross-city & Southeast export fresh goods transit.

Core Basic Engineering Data

• Total nominal volume: 11,000 m³, split into 8 independent temperature zones:
  2×Chilled 2~8℃ / 2×Frozen -18℃ / 4×Processing constant temp 15~20℃
• GB standard total storage capacity calculation (10001~15000 m³ η=0.6):
  Chilled fruit ρ=0.23t/m³, Frozen meat ρ=0.4t/m³, Processing semi-finished ρ=0.28t/m³
  Total usable mixed ton = 11000 × 0.6 × average 0.3 = 1980 tons
• Full construction & 72h full-load temperature validation cycle: 48 calendar days
• Compliance certification: GB50072, food HACCP, GB/T30134 traceability standard


Pre-Construction Core Operational & Compliance Pain Points

• Old scattered small cold rooms without physical zoning, raw fruit & finished goods mixed storage, passed 2 food supervision rectification notices within one year;
• Single-layer insulation without full HDPE vapor barrier, coastal salt fog corroded compressors, fruit mold scrap rate up to 12.8%;
• Shared single compressor without N+1 standby, summer high ambient overload shutdown leads whole batch fresh loss;
• Discrete manual temperature records, cannot provide 2-year encrypted trace data for customs inspection;
• Ordinary high-speed air coolers cause severe leaf vegetable dehydration & weight loss during long transit storage.

1 Shenzhen Coastal Exclusive Anti-Condensation & Anti-Corrosion Envelope System

Comply with GB50072 warm-side full vapor barrier mandatory clause & coastal salt fog anti-rust standard:

Zone Type	PU Insulation Standard	Coastal Humidity & Corrosion Optimization
2~8℃ Chilled Room	100mm B1 low-smoke zero-halogen PUR (λ=0.023)	Double-layer full HDPE warm-side vapor barrier, all panel joints filled mildew-proof low-temp sealant; 50mm seamless inner arc wall, 304 stainless anti-corrosion inner plate
-18℃ Frozen Room	150mm B1 high-density PUR (λ=0.020)	Double staggered XPS anti-freeze floor, 1% drainage slope for fruit residue flushing
15~20℃ Processing Zone	50mm B1 anti-mildew PUR	Independent ventilation window with salt filter, easy-clean flat wall

Core construction rule: All ceiling suspension brackets & pipeline holes fitted nylon insulation gaskets to eliminate cold bridge sweating; every cold loading door equipped 2300mm heating air curtain to block hot humid sea wind; all condenser added heavy-duty anti-salt epoxy coating.

2 N+1 Independent Redundant Refrigeration System (8 Separate Zones)

Each of the 8 cold rooms adopts 1-main-1-standby scroll parallel rack auto-switch system, independent pipeline & evaporator without cross temperature interference:
1. Chilled Zone (Emerson Copeland): Low-speed EC fan evaporator, hot gas defrost to avoid fruit water loss, COP stable 4.1 under 38℃ coastal ambient
2. Frozen Zone (Italy Frigoacciai): Heavy anti-corrosion shell, continuous operation 98% uptime under extreme high temp
3. Processing Zone (KAYDI DD/DL evaporator): EC energy-saving fan, temperature fluctuation controlled ±0.3℃

Unified Power Safety Standard

Dual municipal power supply + 72h UPS for whole IoT monitoring platform, uninterrupted encrypted data recording during power cut; whole park average energy consumption controlled ≤0.82 kW/m³ (lower original design 0.85 kW/m³ via coastal optimized condenser).

3 HACCP Mandatory Four-Zone One-Way Logistics Layout

Four fully physical wall separated functional areas (cloth curtain separation is forbidden):
1. Raw fruit receiving & pre-cool buffer zone
2. Fresh sorting & processing constant temp zone
3. Qualified finished goods storage (chilled/frozen separated)
4. Defective & expired fruit isolation cold room

Three Independent Passage Rule

Separate personnel clean passage / cargo inbound-outbound passage / waste residue exclusive passage, strictly avoid cross-contamination between raw and cooked fresh products; all loading vestibules fitted anti-condensation heating sliding doors with emergency release EN 16005 certified.

4 IoT Centralized Monitoring & ERP Interconnection Platform

1. Multi-point PT100 sensors deployed in each zone, auto record data every 30min, non-editable encrypted storage minimum 2 years per GB/T30134;
2. Multi-level linkage alarm: On-site sound-light + mobile SMS + backend PC remote warning for RH/temp over-limit;
3. One-click export full HACCP trace report, seamless data docking with group B2B ERP order & inventory system.

5 Measurable 12-Month Park Operation Benefits

1. Four physical separated zones pass food supervision audit at one time without rectification;
2. Double vapor barrier + anti-salt condenser eliminate coastal corrosion & wall condensation, fruit mold scrap rate reduced from 12.8% down below 2.7%;
3. N+1 independent standby unit completely avoid summer high-temperature fresh batch loss;
4. Low-speed evaporator cut vegetable dehydration weight loss by 26%, raise export commodity grade;
5. Coastal optimized inverter unit cut annual refrigeration electricity consumption by 24%.

7 Common Shenzhen Coastal Cold Park Inspection Pitfalls

1. Omit double HDPE vapor barrier + anti-salt coating → Corroded units & year-round wall condensation
2. Shared compressor without independent N+1 per zone → Whole zone fresh loss during breakdown
3. Only cloth curtain instead of solid wall zoning → Direct HACCP audit failure
4. Editable temperature records → Invalid trace data for cross-border customs inspection
5. High-speed air cooler → Severe leaf vegetable shrinkage & price reduction
6. No independent waste passage → Raw & finished goods cross contamination risk
7. Ordinary thin 80mm panel for chilled room → 30%+ annual electricity surge

Simple Large Cold Park ROI Calculation Formula

Annual Net Income = Domestic & Export Fresh Price Margin − Annual Electricity & Maintenance − Spoilage Loss Reduction
Full Investment Payback Months = Total Turnkey Investment ÷ Average Monthly Net Profit

FAQ For Shenzhen Fresh Logistics Infrastructure Managers

Q1 What special anti-corrosion design for Shenzhen coastal cold park?

All condensers with anti-salt epoxy coating, wall & ceiling laid double full HDPE vapor barrier, heating air curtain for every loading door.

Q2 Why every cold zone needs independent N+1 standby unit?

8 zones operate 24h daily, single zone unit failure leads thousands of orders fresh scrapping loss.

Q3 What mandatory trace record storage period per national standard?

Minimum 2 years non-editable encrypted storage for food supervision & export customs audit.

Q4 What HACCP layout rule for multi-temp fresh warehouse?

Four physical separated zones + three independent one-way passages to avoid raw & finished cross contamination.

Custom Coastal Multi-Temp Cold Park Inquiry

Provide daily fresh throughput & local maximum ambient temperature to get HACCP compliant zoning layout & itemized quotation.

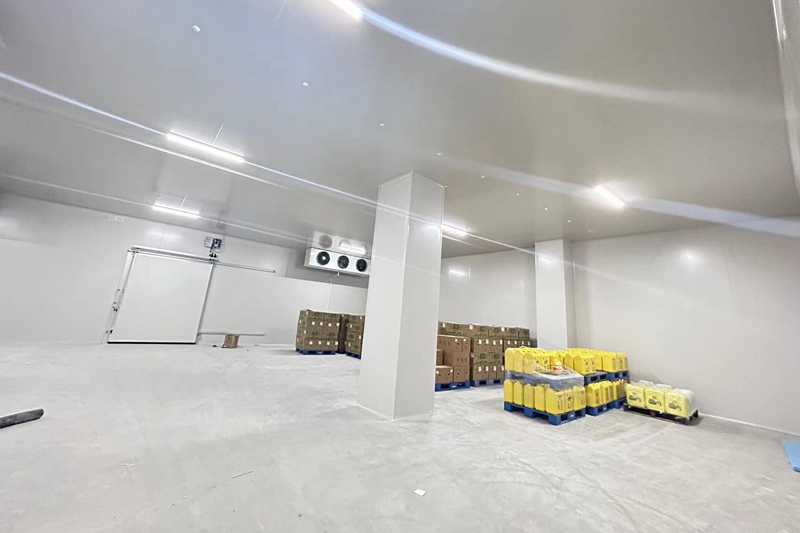

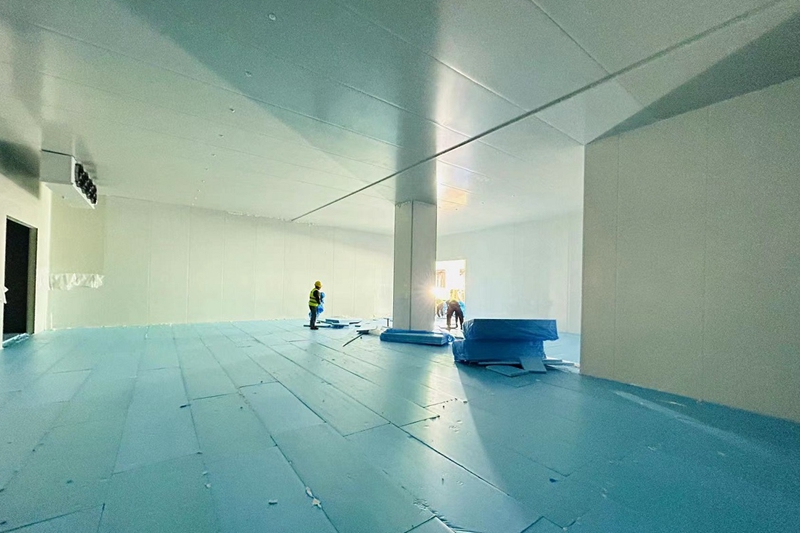

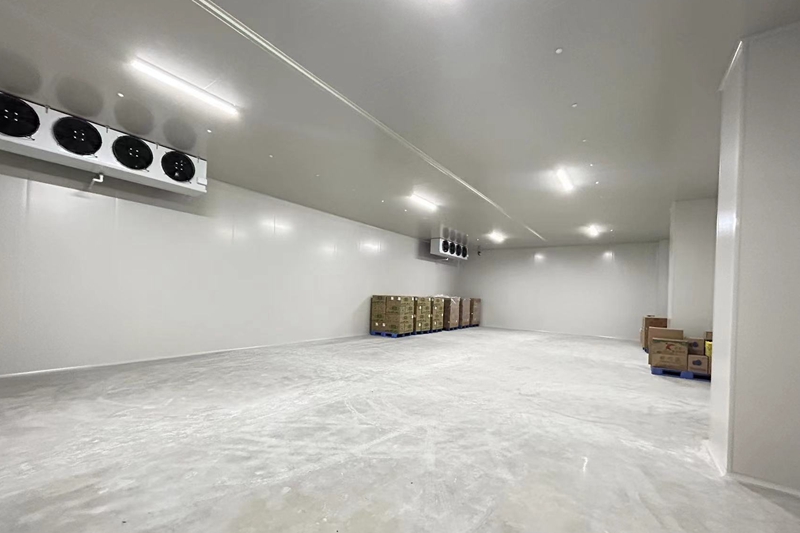

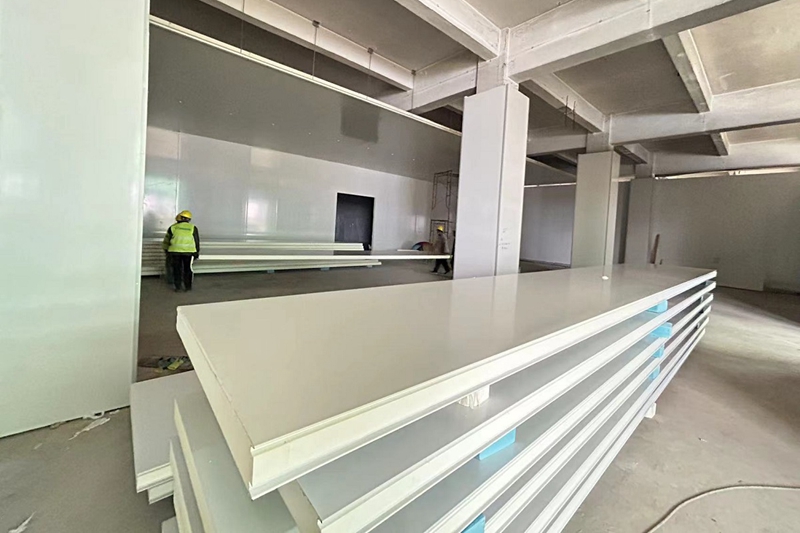

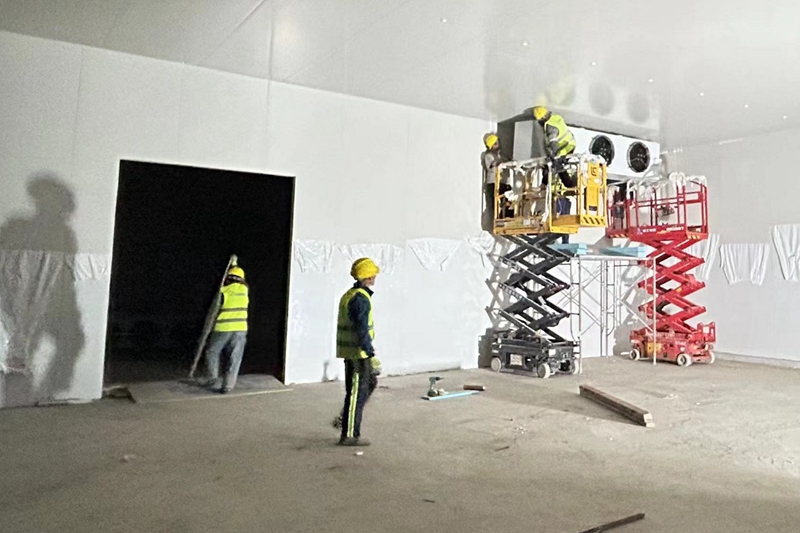

Construction & Completion Photos
